Backfire

Backfire

DEFINITION: Fuel ignites in the intake manifold, or in the exhaust system, making a loud popping noise.

CAUTION: Before diagnosing the symptom, check service bulletins for updates.

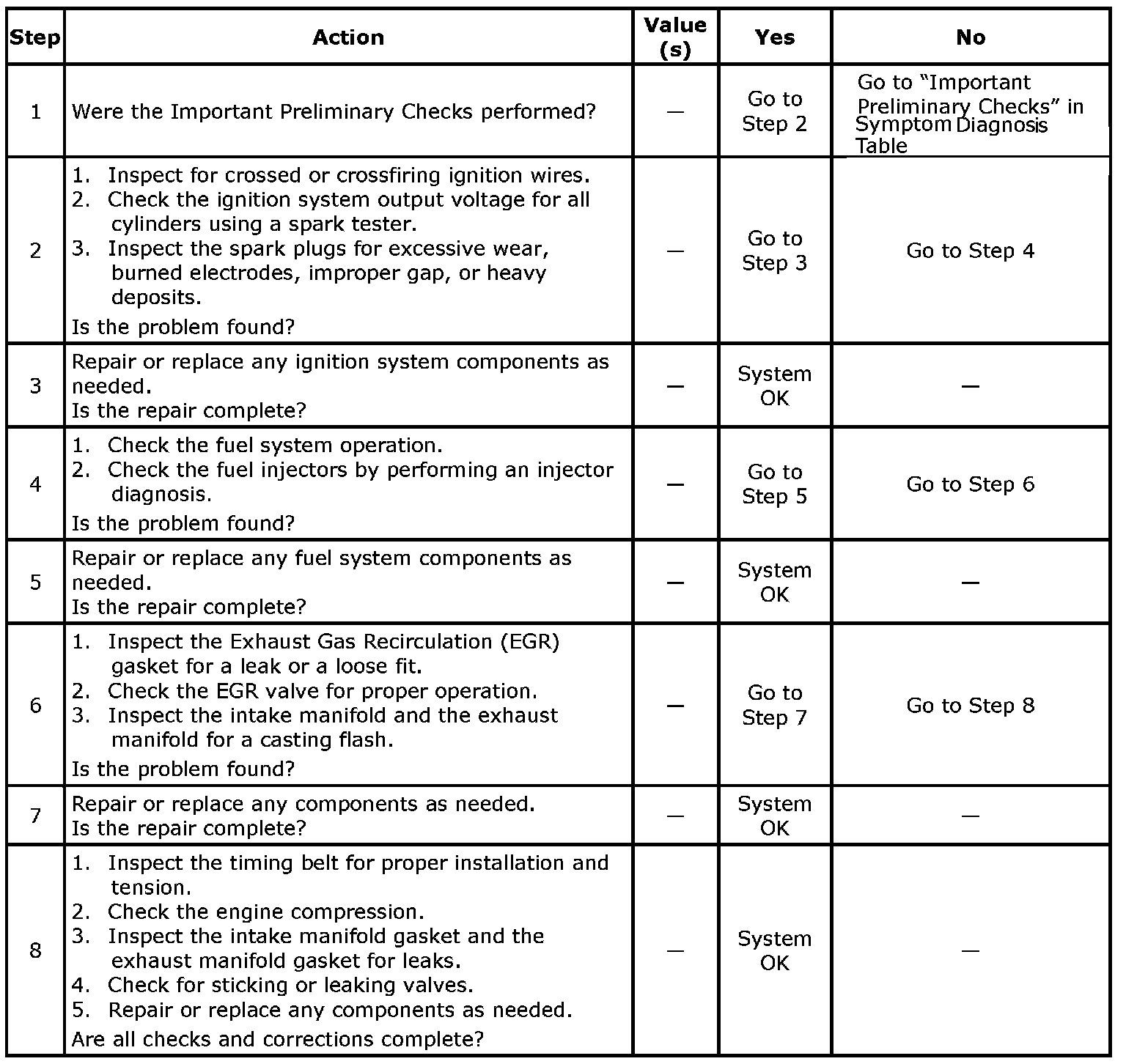

Step 1-8:




Troubleshooting
