Fuel System Pressure Relief

WARNING: The fuel system is under pressure. To avoid fuel spillage and the risk of personal injury or fire, it is necessary to relieve the fuel system pressure before disconnecting the fuel lines.
  1. Remove the fuel cap.
  2. Remove the fuel pump fuse Ef18 from the engine fuse block.
  3. Start the engine and allow the engine to stall.
  4. Crank the engine for an additional 10 sec.

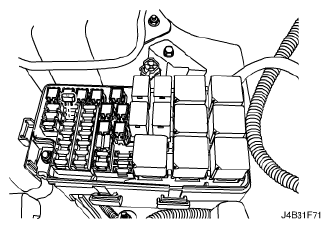

    Fig 1: Identifying Fuel Pump Fuse Ef18 From Engine Fuse Block
    G04716634Courtesy of SUZUKI OF AMERICA CORP.
