Engine Coolant Temperature Sensor Removal and Installation: Removal

  1. Relieve the coolant system pressure.
  2. Disconnect the negative battery cable.
  3. Disconnect the Engine Coolant Temperature (ECT) sensor connector.
  4. Remove the ECT sensor from the Electronic Ignition (EI) system ignition coil adapter.

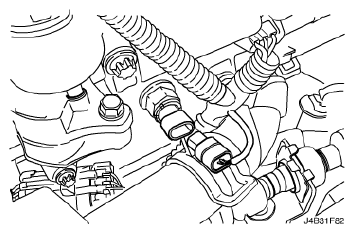

    Fig 1: ECT Sensor From Electronic Ignition (EI) System Ignition Coil Adapter
    G04716362Courtesy of SUZUKI OF AMERICA CORP.
