Generator Description: Notes

The basic charging system is the IC integral regulator charging system. The internal components are connected electrically as shown below.

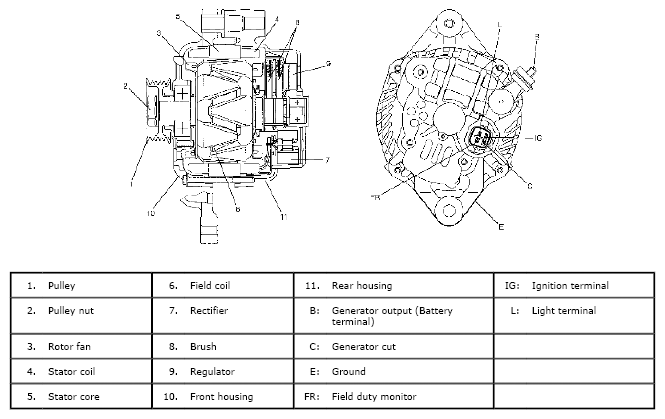

Fig 1: Identifying IC Integral Regulator Charging System Components

Courtesy of SUZUKI OF AMERICA CORP.
