Generator Components

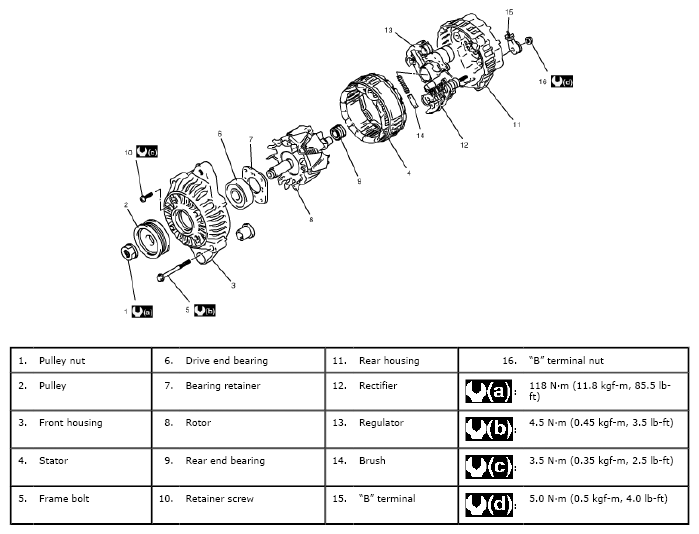

Fig 1: Generator Replacement Components & Torque Specification
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
