Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

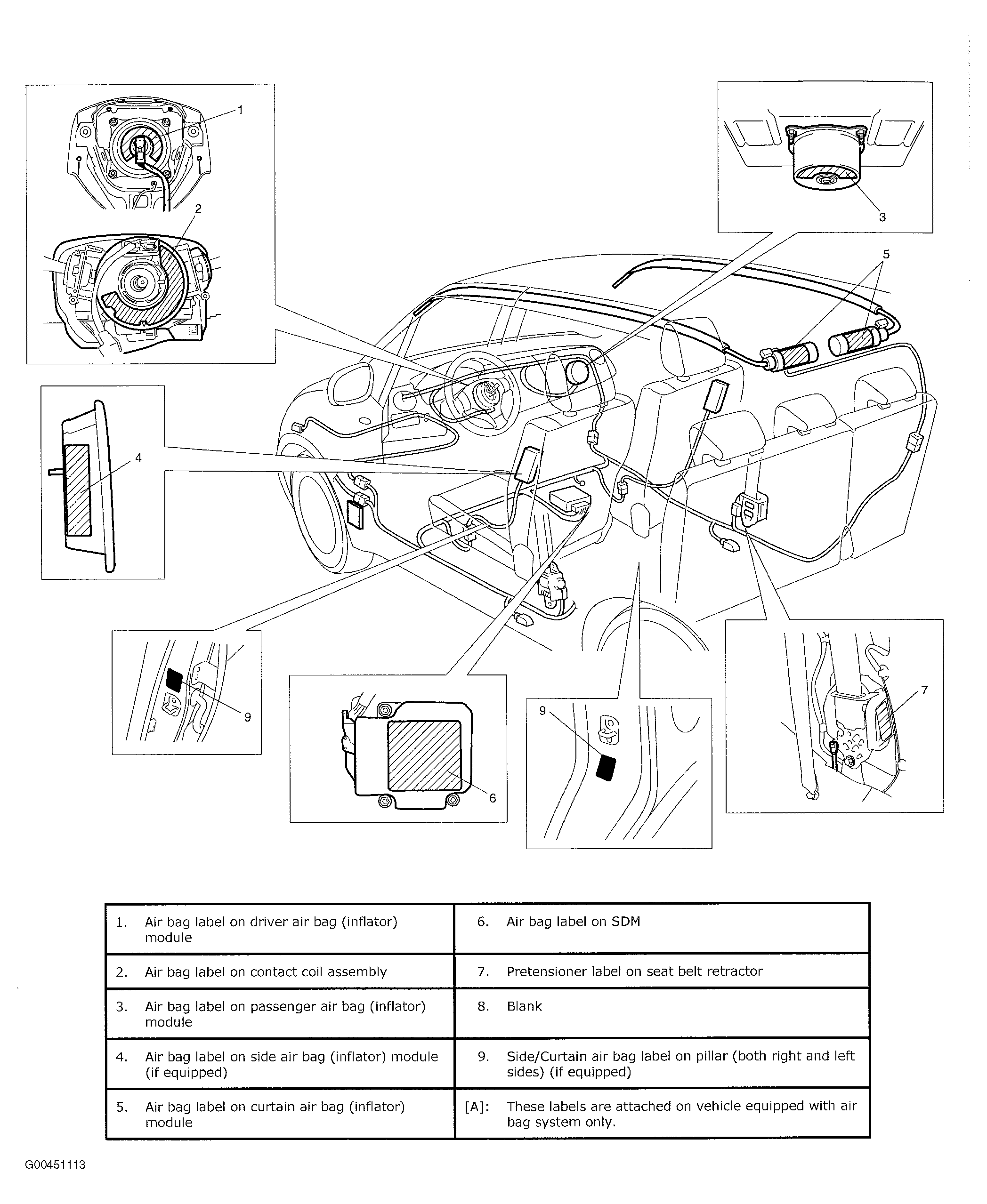

Fig 1: Vehicle Overview

G00451113

Courtesy of SUZUKI OF AMERICA CORP.

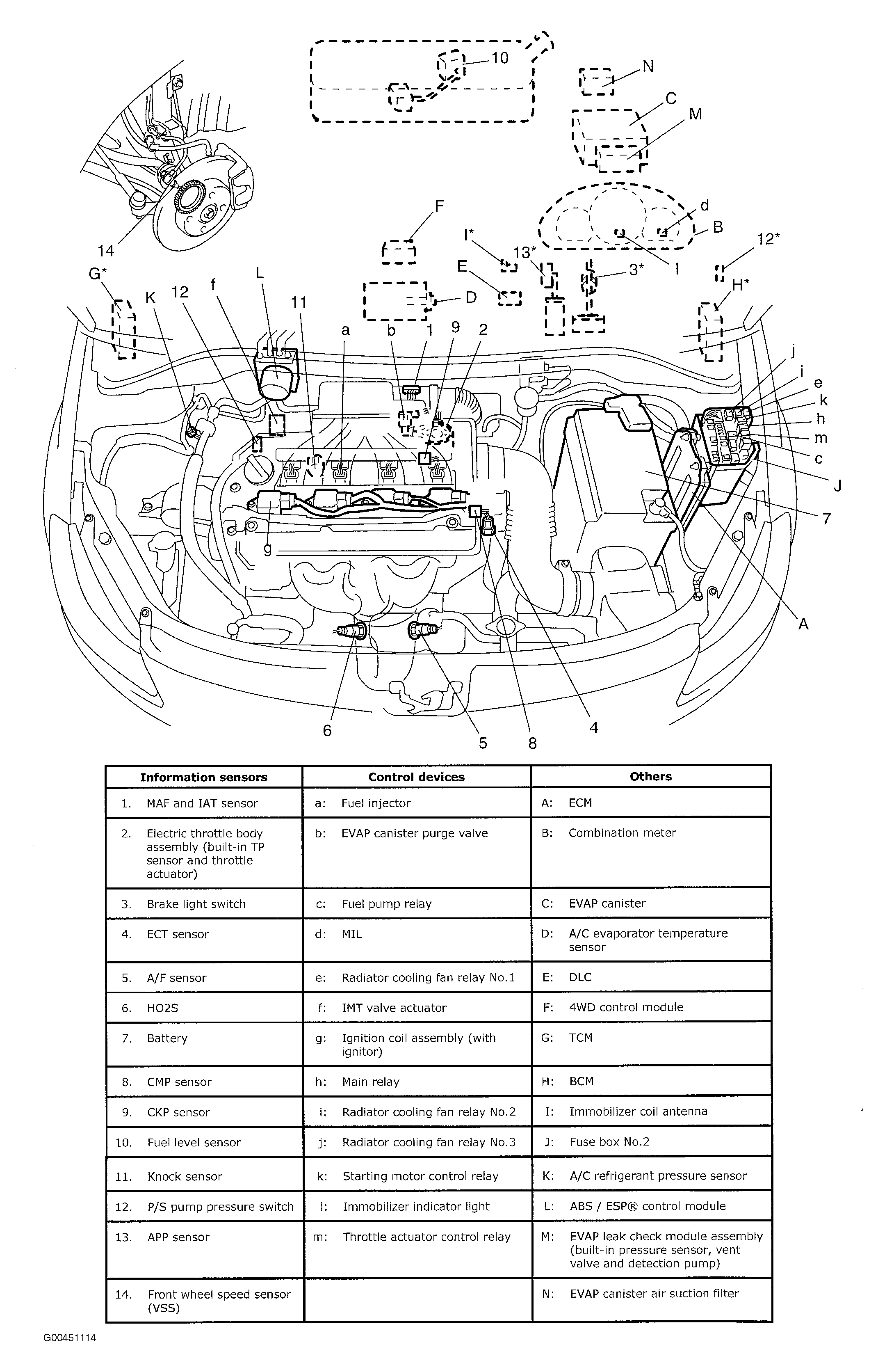

Fig 2: Engine Compartment

G00451114

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Engine Compartment

G00451115

Courtesy of SUZUKI OF AMERICA CORP.

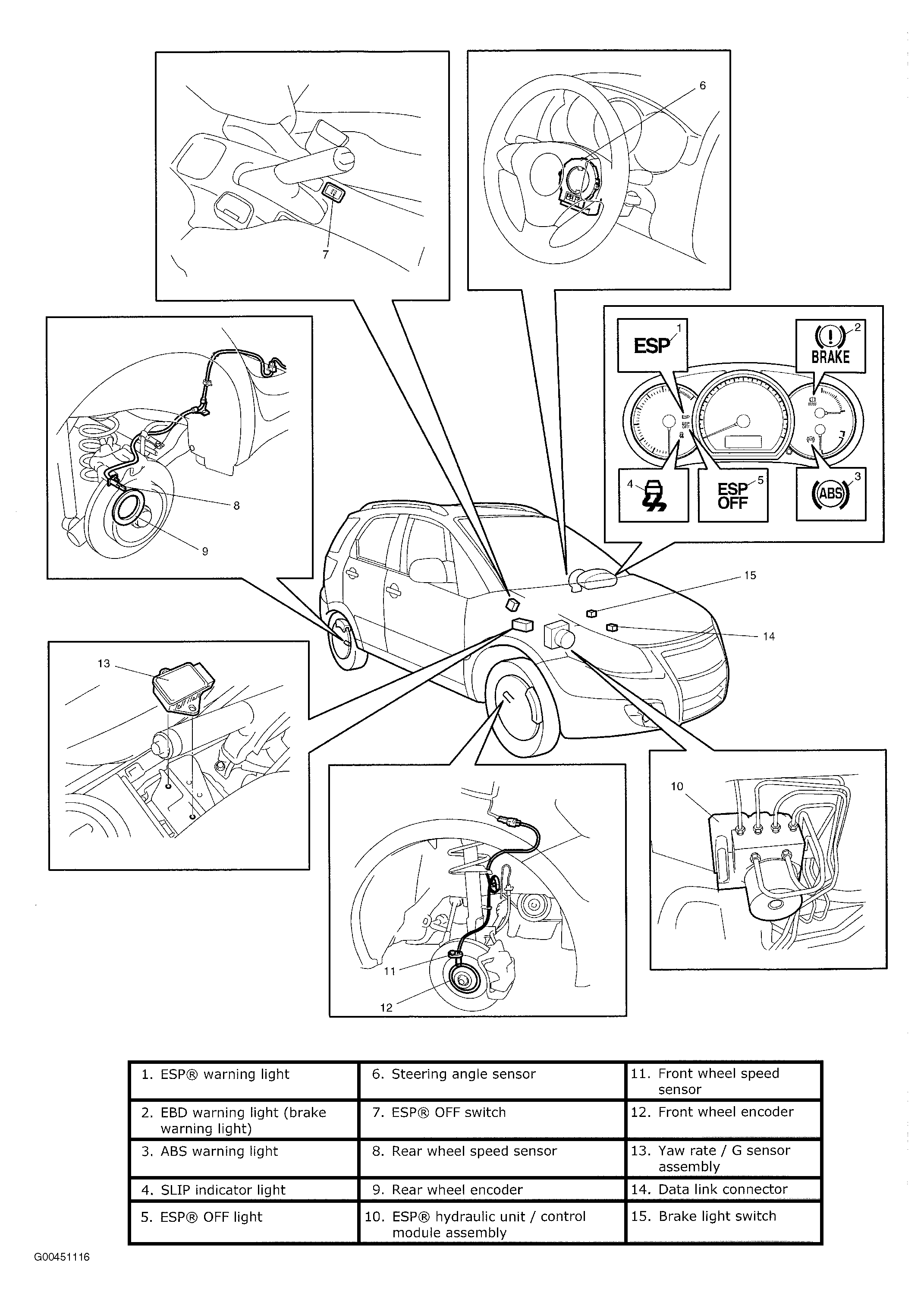

Fig 4: Vehicle Overview

G00451116

Courtesy of SUZUKI OF AMERICA CORP.

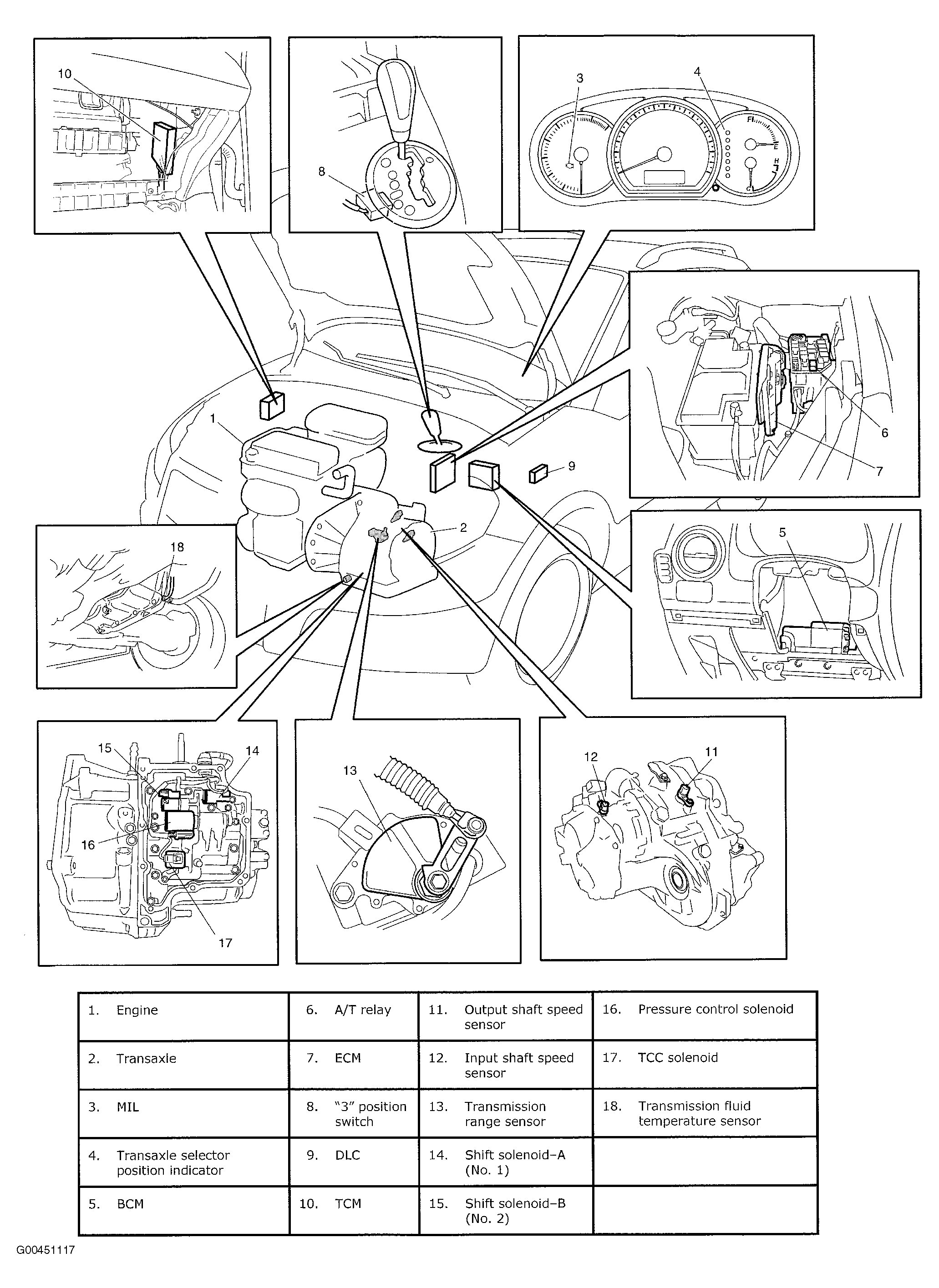

Fig 5: Transmission Overview

G00451117

Courtesy of SUZUKI OF AMERICA CORP.

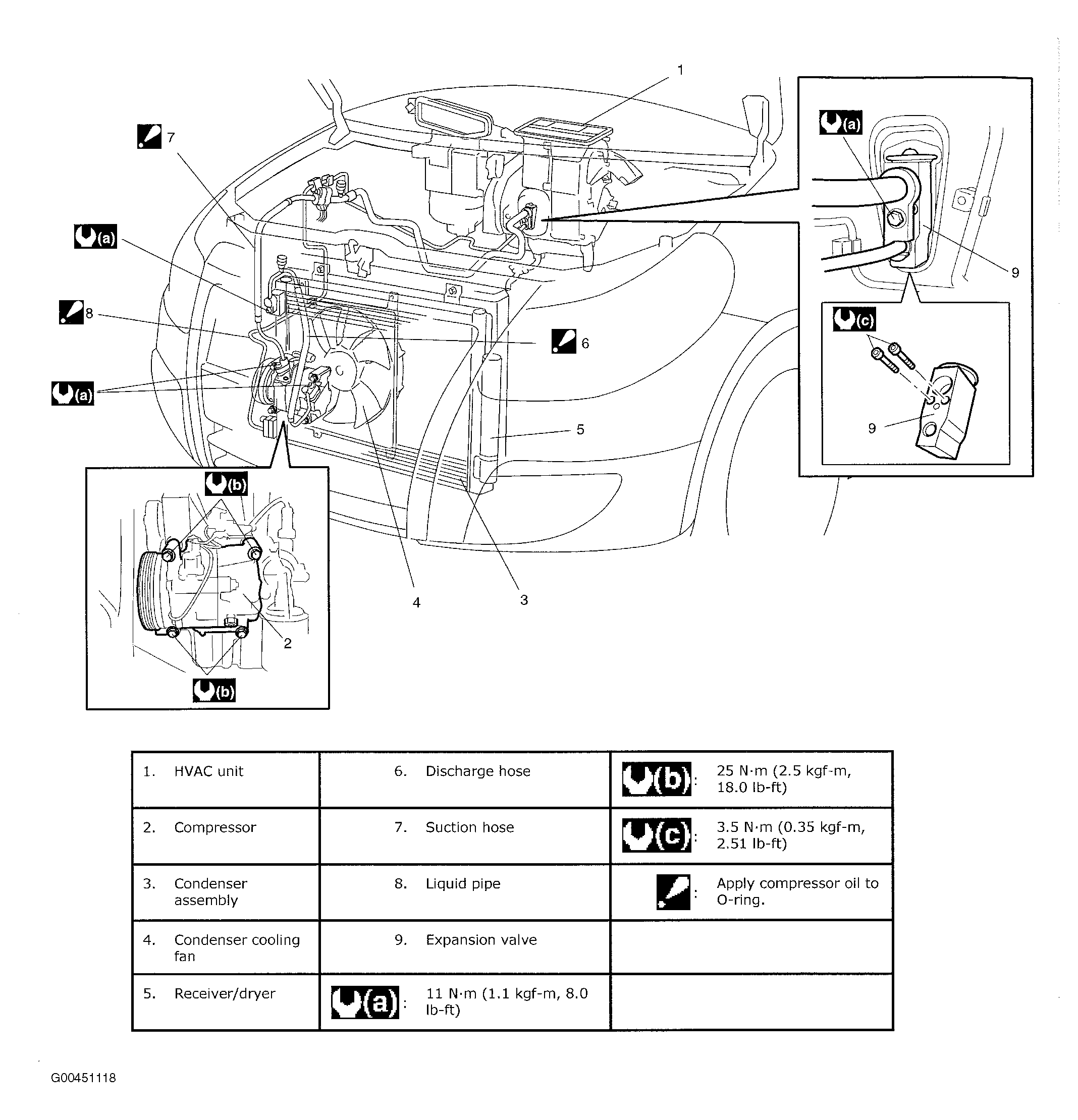

Fig 6: HVAC Components

G00451118

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: HVAC Components (Manual)

G00451119

Courtesy of SUZUKI OF AMERICA CORP.

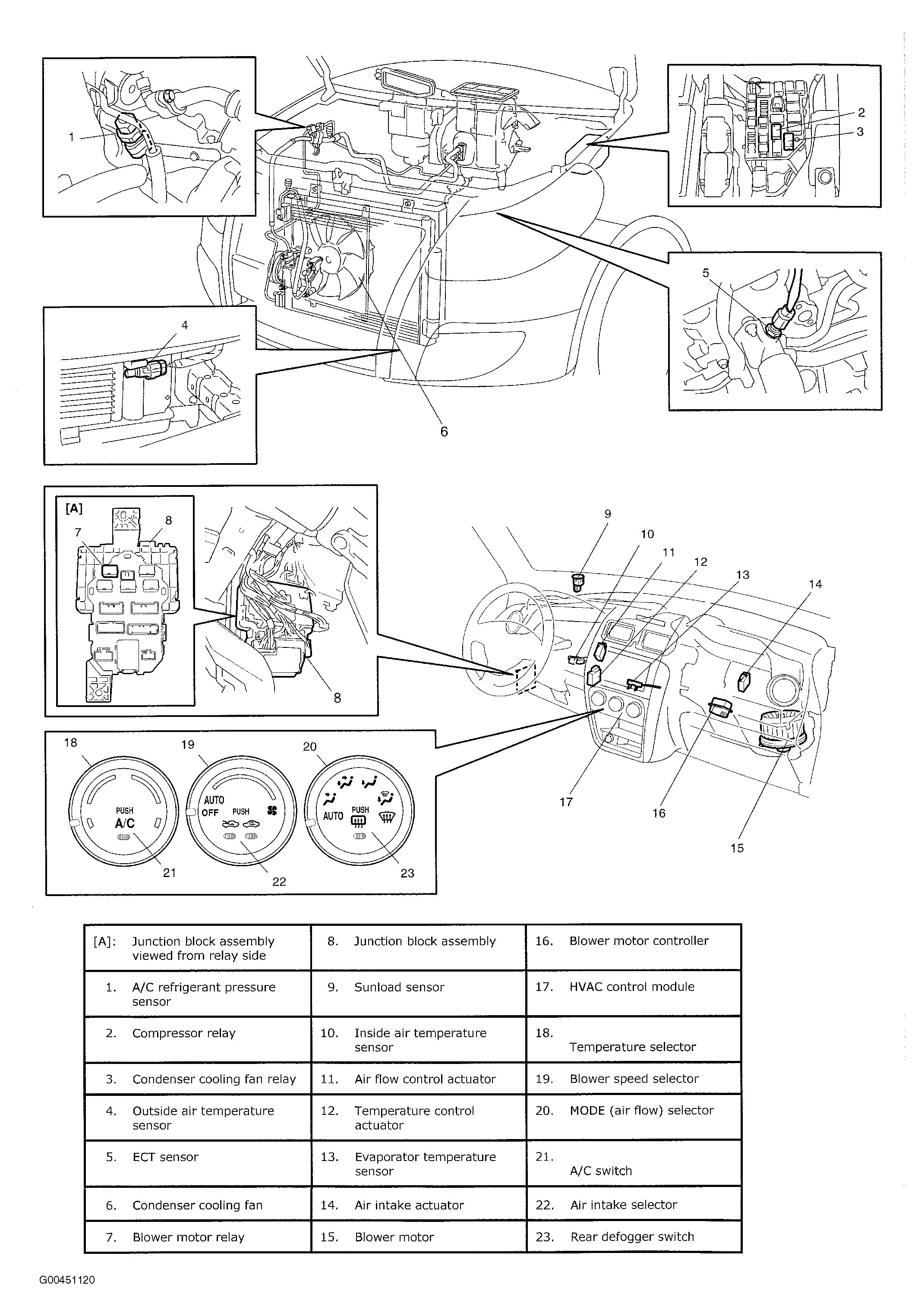

Fig 8: HVAC Components (Automatic)

G00451120

Courtesy of SUZUKI OF AMERICA CORP.

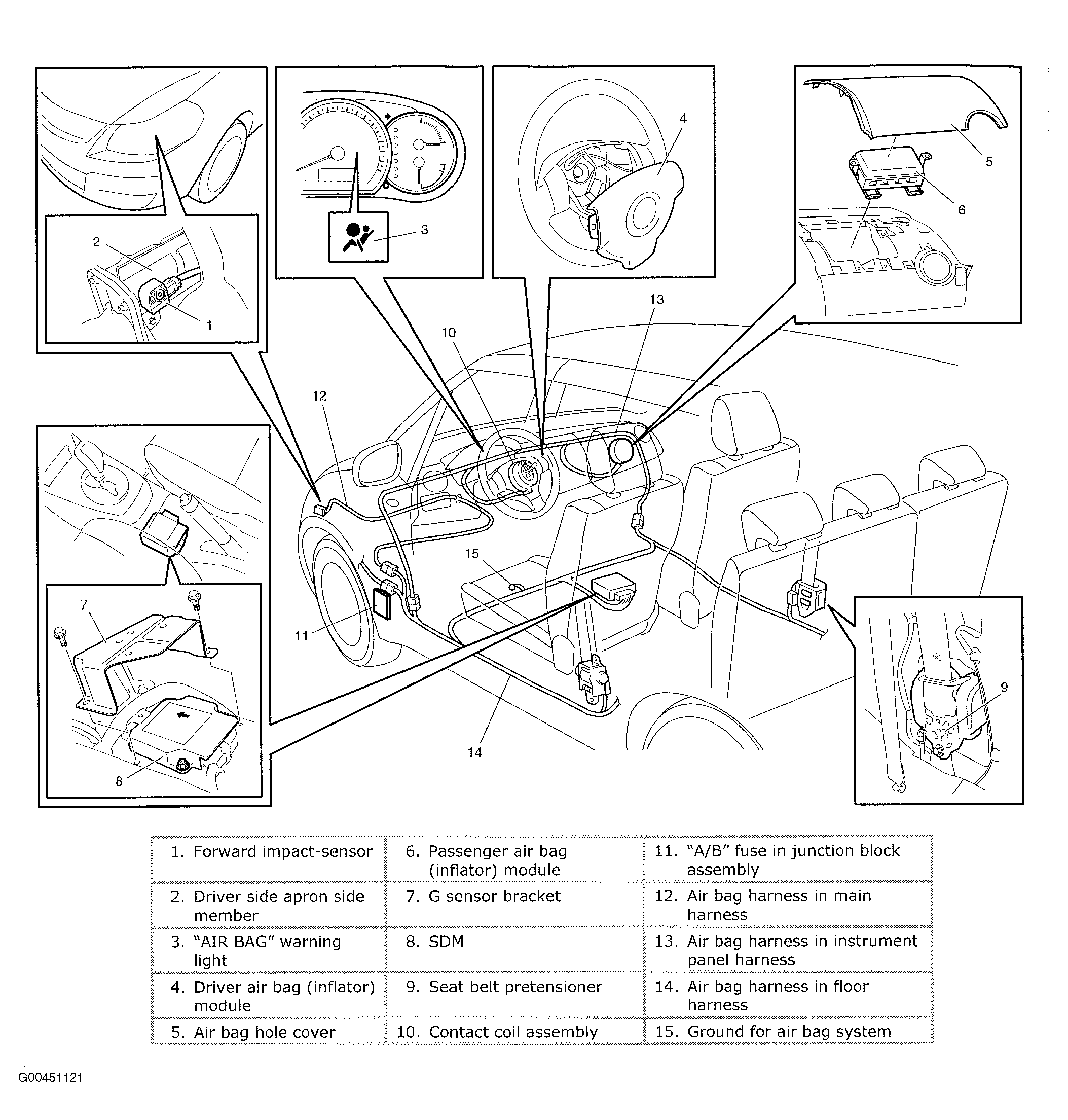

Fig 9: Vehicle Overview

G00451121

Courtesy of SUZUKI OF AMERICA CORP.

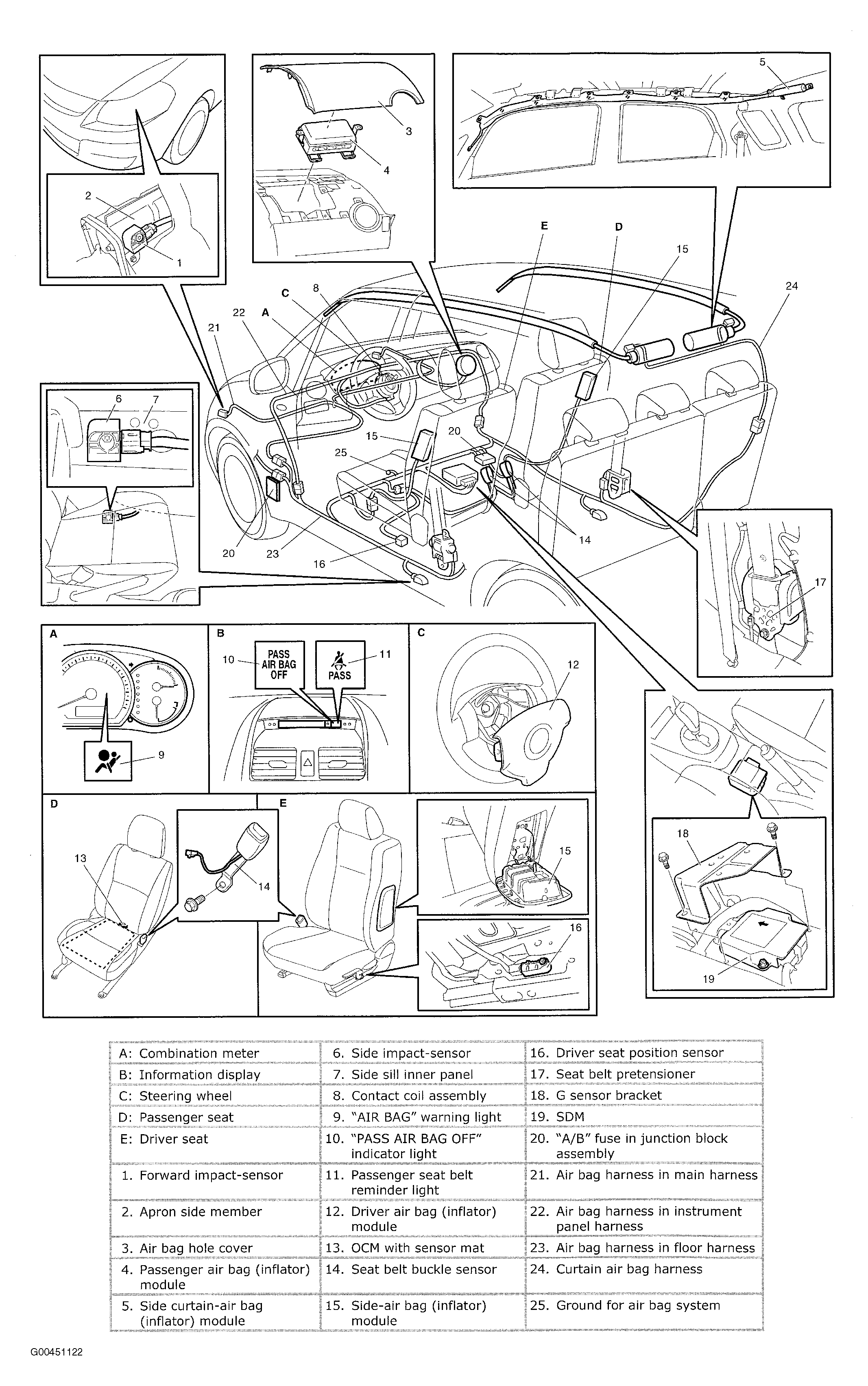

Fig 10: Vehicle Overview

G00451122

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Vehicle Overview

G00451123

Courtesy of SUZUKI OF AMERICA CORP.

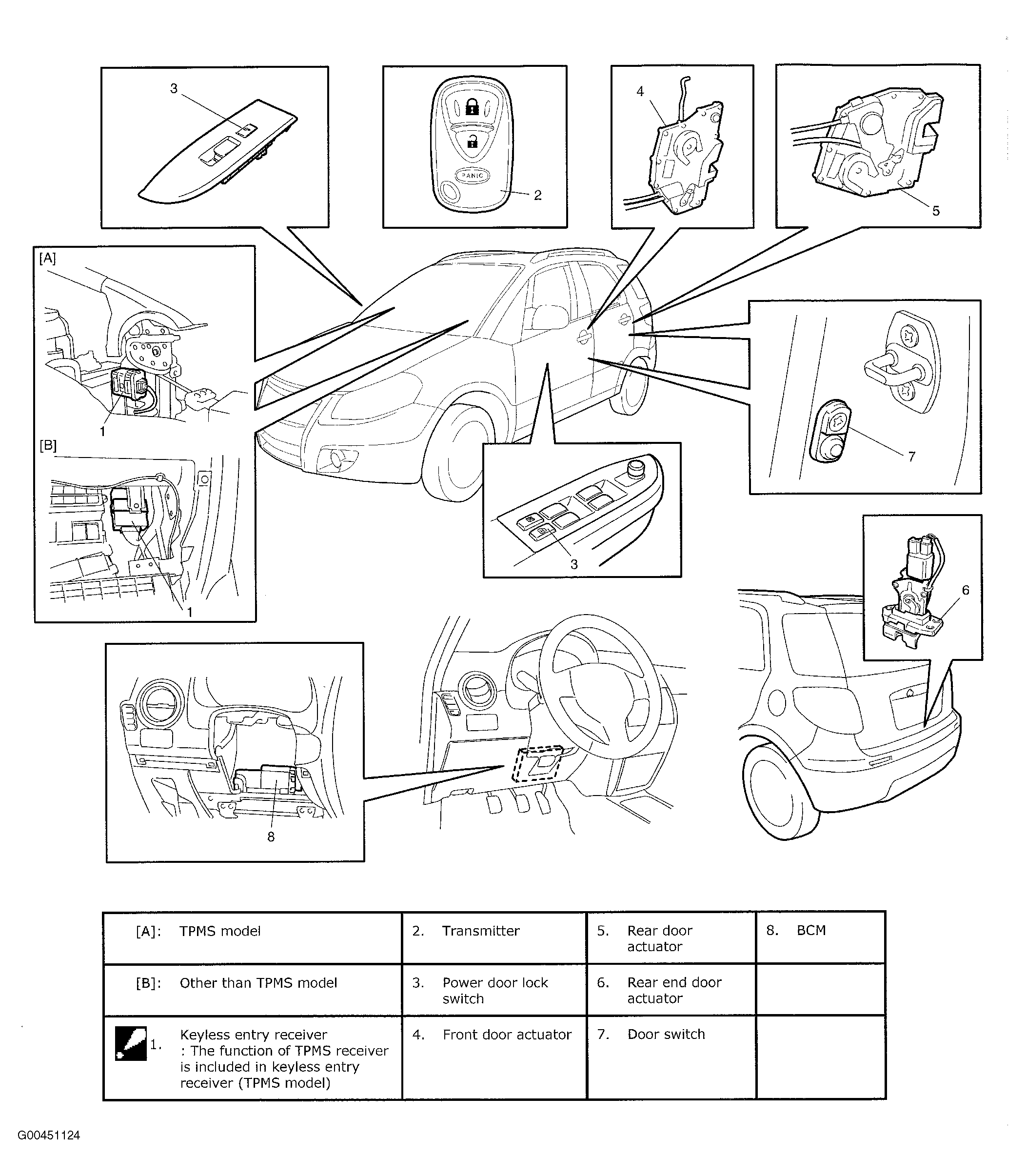

Fig 12: Vehicle Overview

G00451124

Courtesy of SUZUKI OF AMERICA CORP.

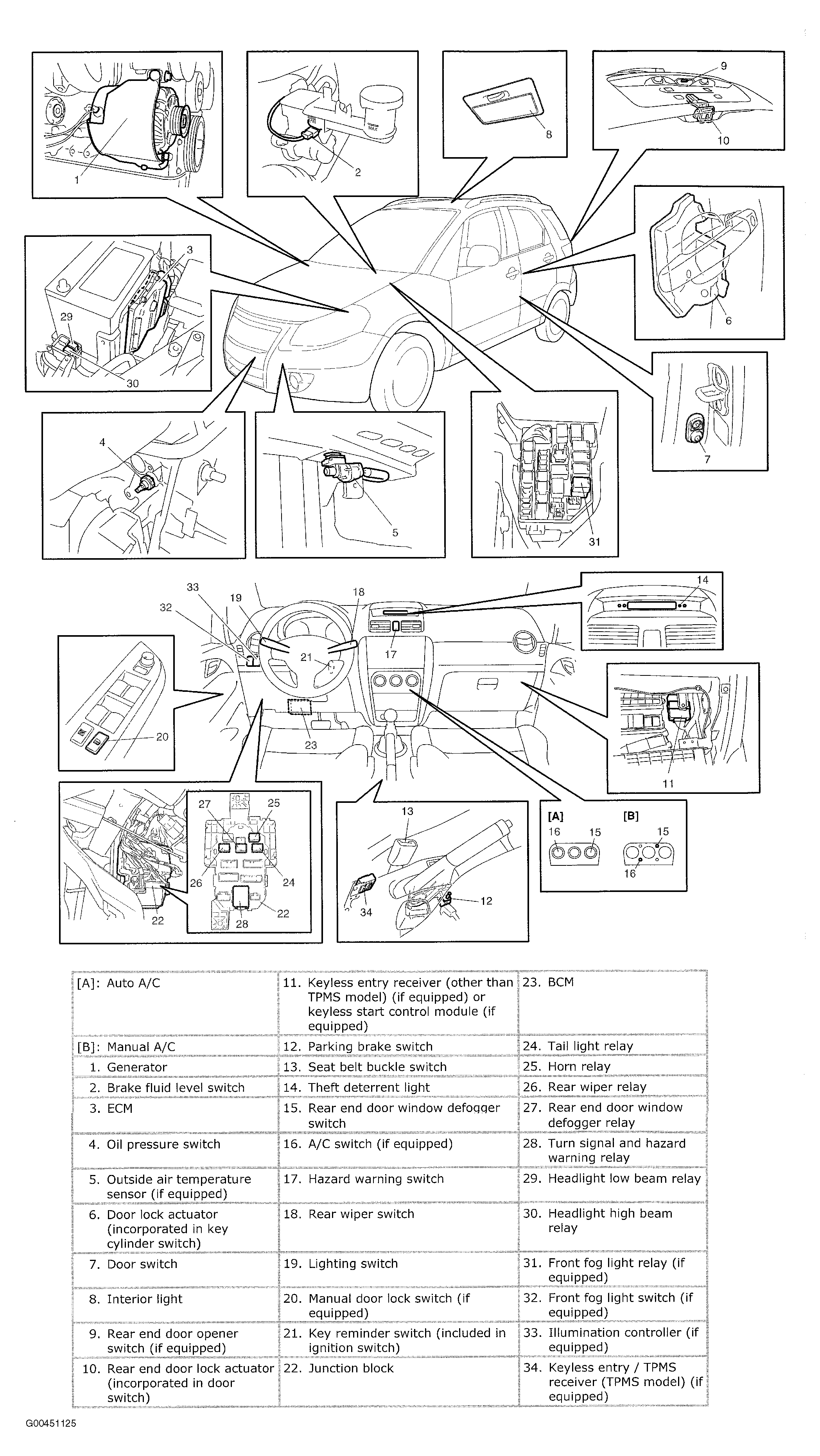

Fig 13: Vehicle Overview

G00451125

Courtesy of SUZUKI OF AMERICA CORP.

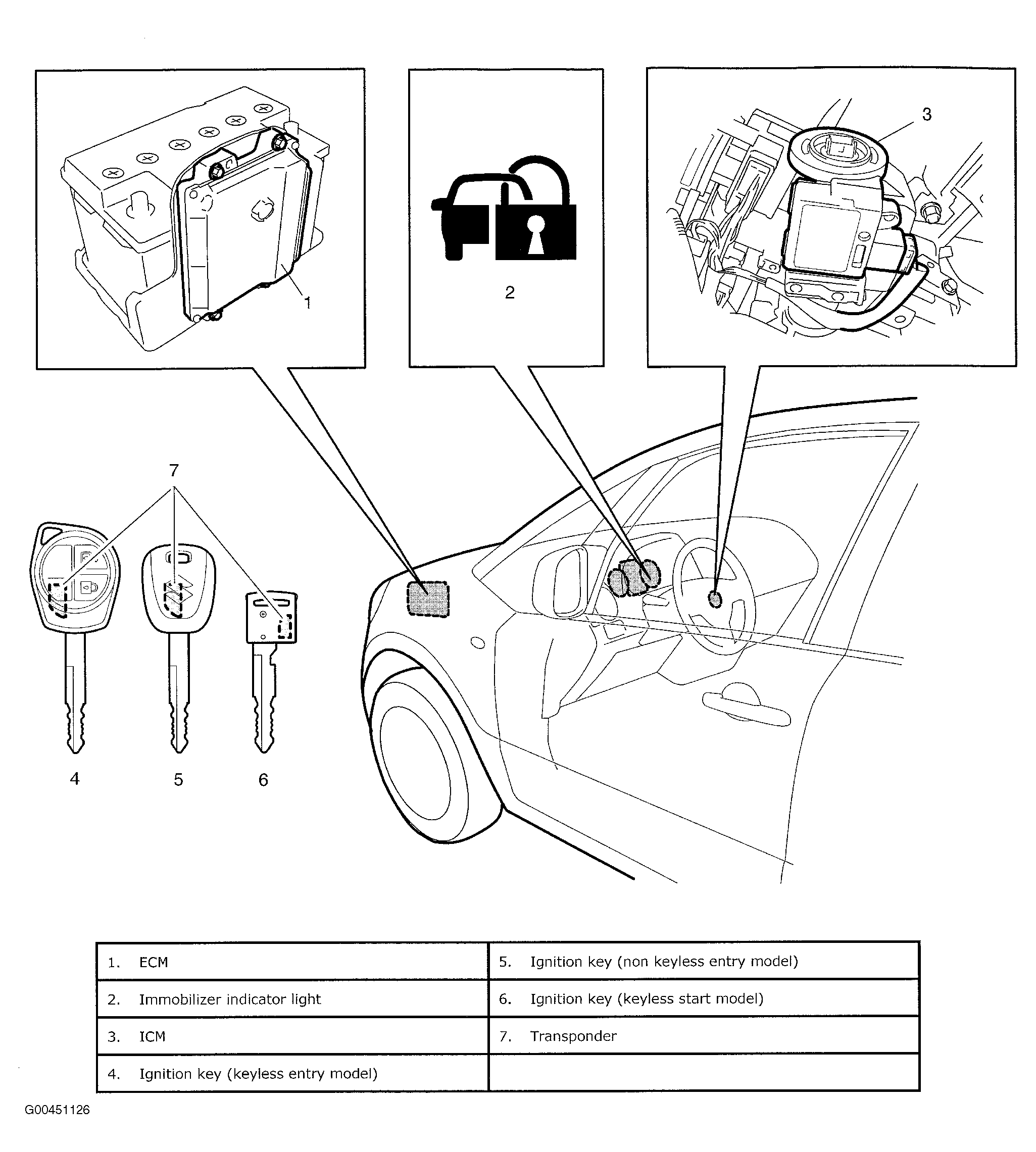

Fig 14: Vehicle Overview

G00451126

Courtesy of SUZUKI OF AMERICA CORP.

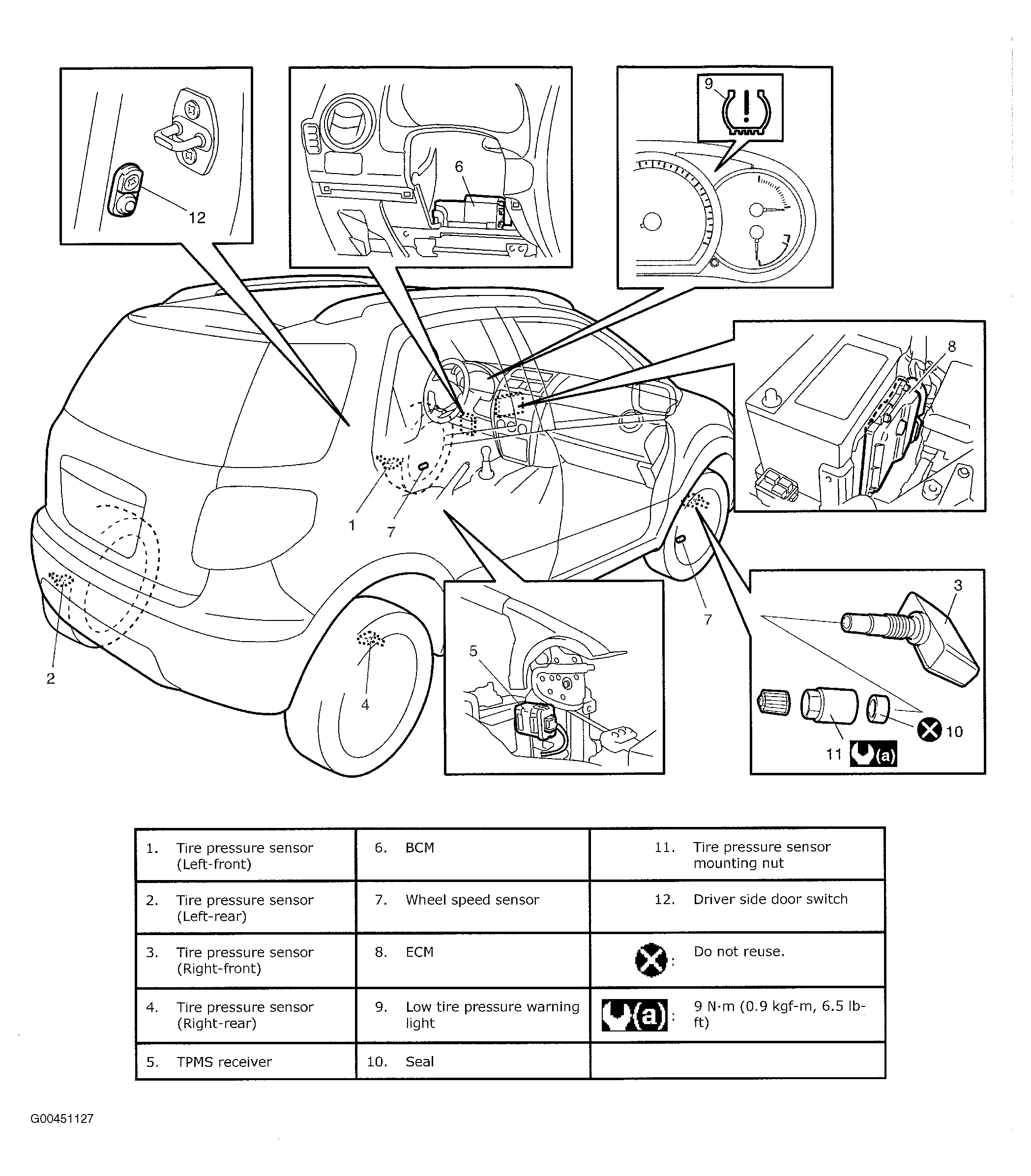

Fig 15: Vehicle Overview

G00451127

Courtesy of SUZUKI OF AMERICA CORP.

Fig 16: Engine Compartment

G00451129

Courtesy of SUZUKI OF AMERICA CORP.

Fig 17: Engine Compartment

G00451138

Courtesy of SUZUKI OF AMERICA CORP.

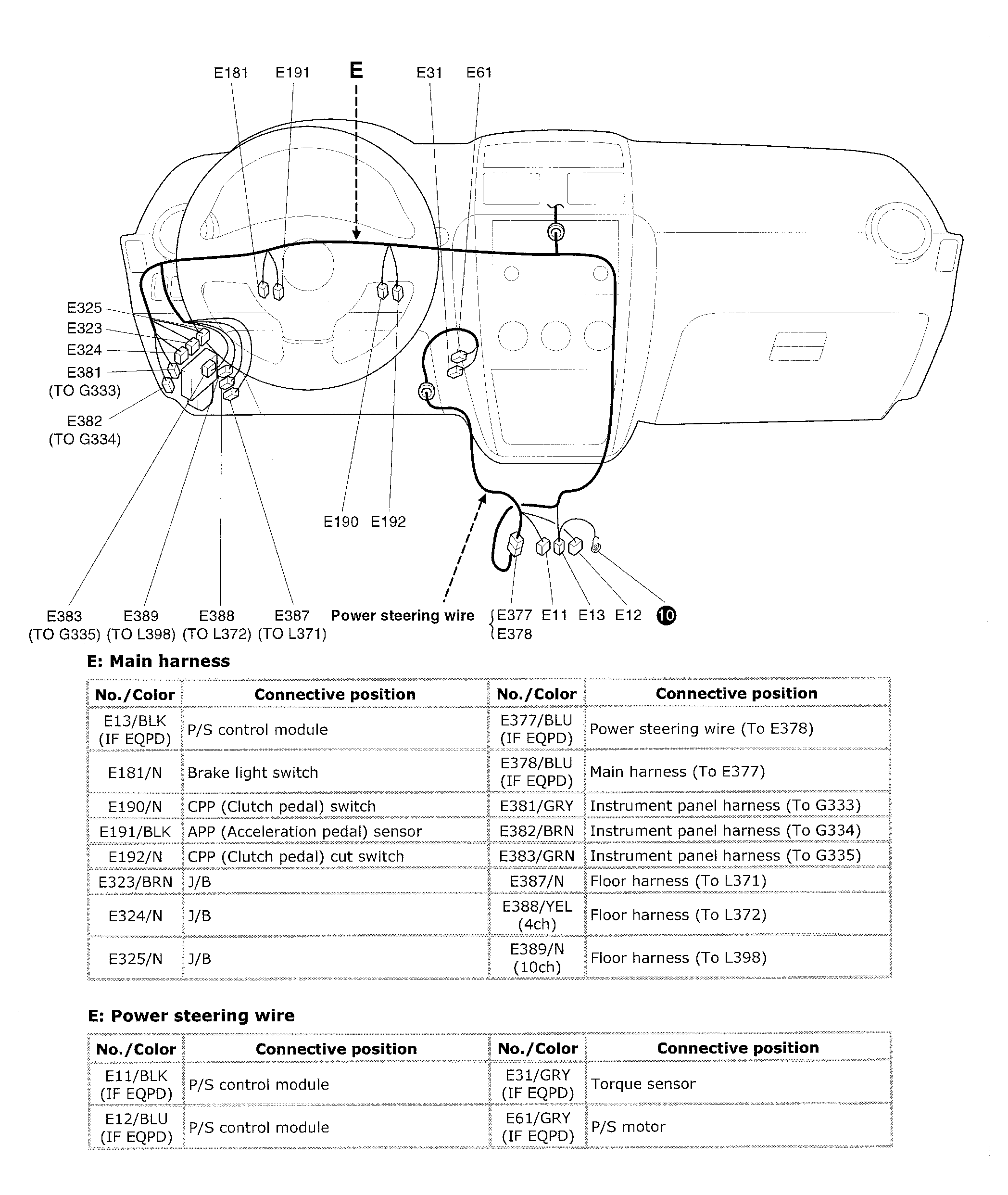

Fig 18: Dash

G00451130

Courtesy of SUZUKI OF AMERICA CORP.

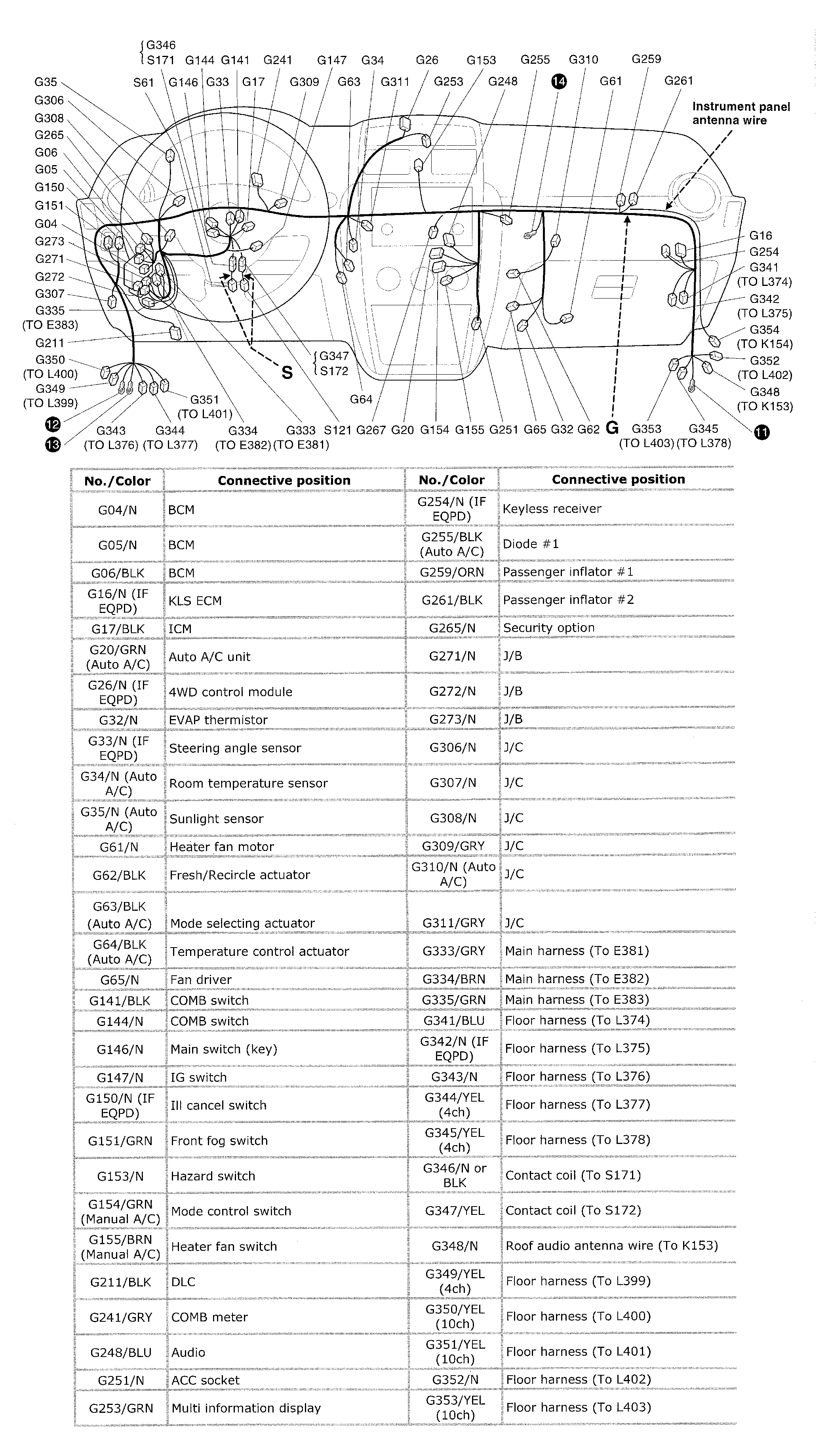

Fig 19: Dash

G00451131

Courtesy of SUZUKI OF AMERICA CORP.

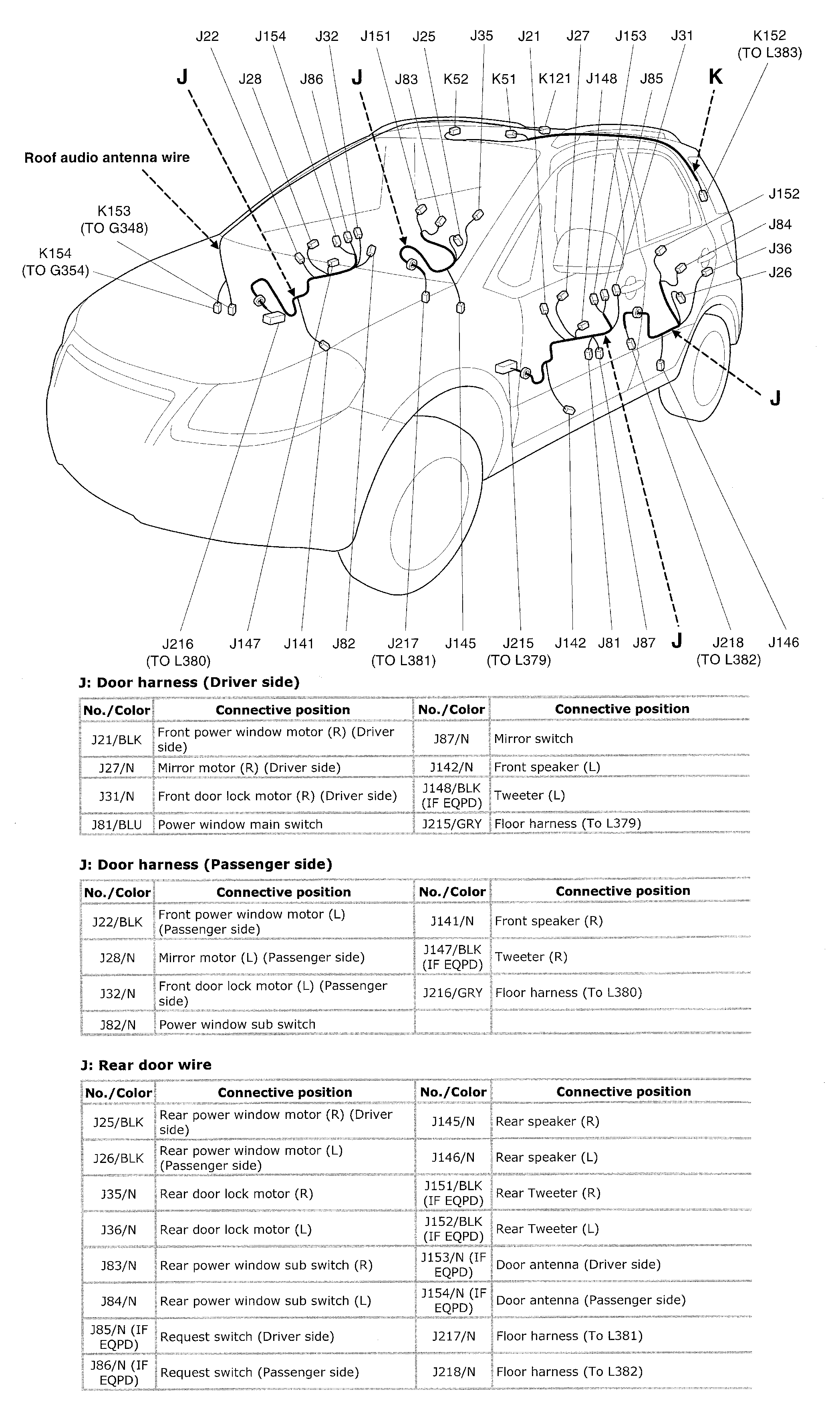

Fig 20: Vehicle Overview (Left Side)

G00451132

Courtesy of SUZUKI OF AMERICA CORP.

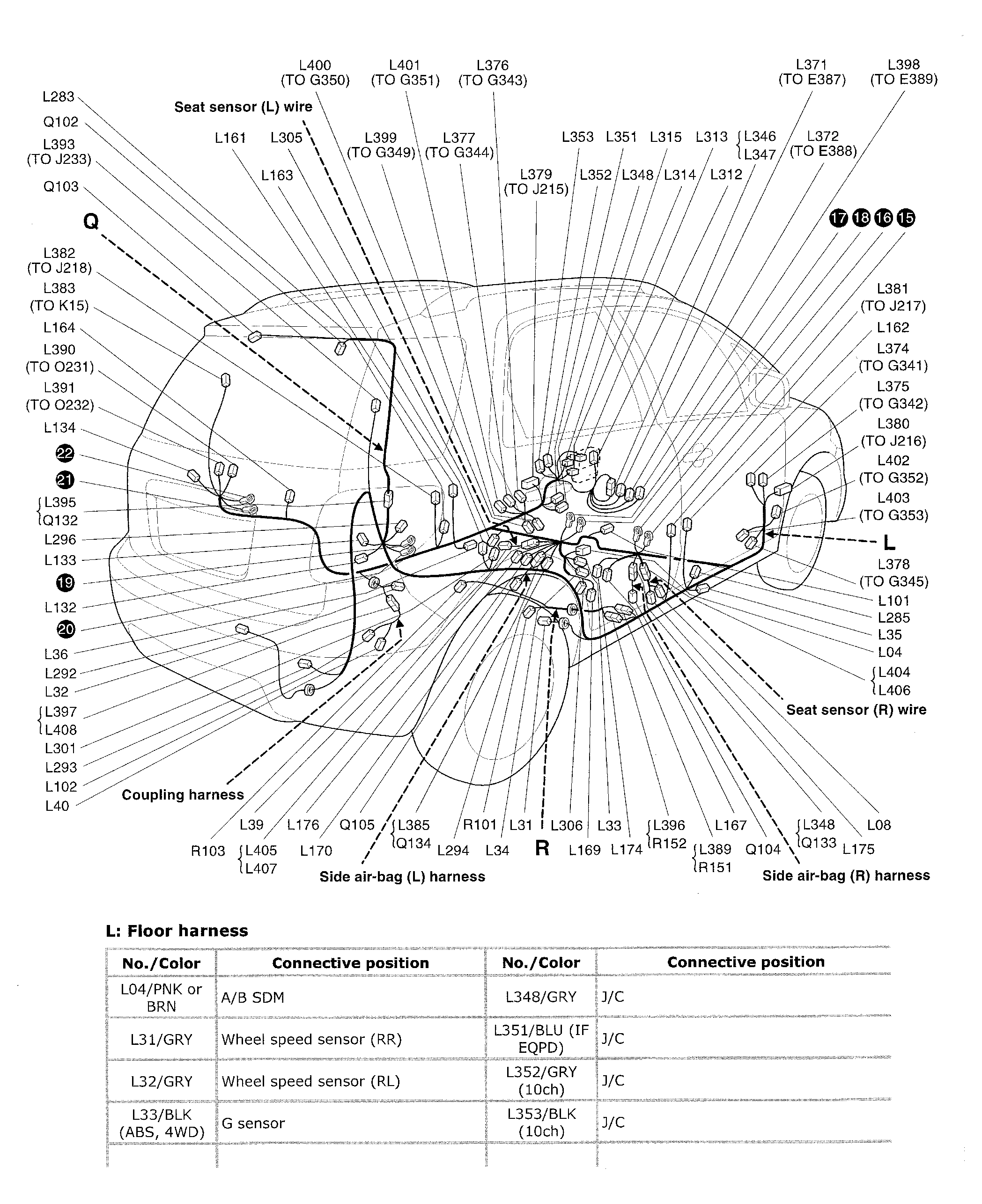

Fig 21: Vehicle Overview (Right Side) (1 Of 3)

G00451133

Courtesy of SUZUKI OF AMERICA CORP.

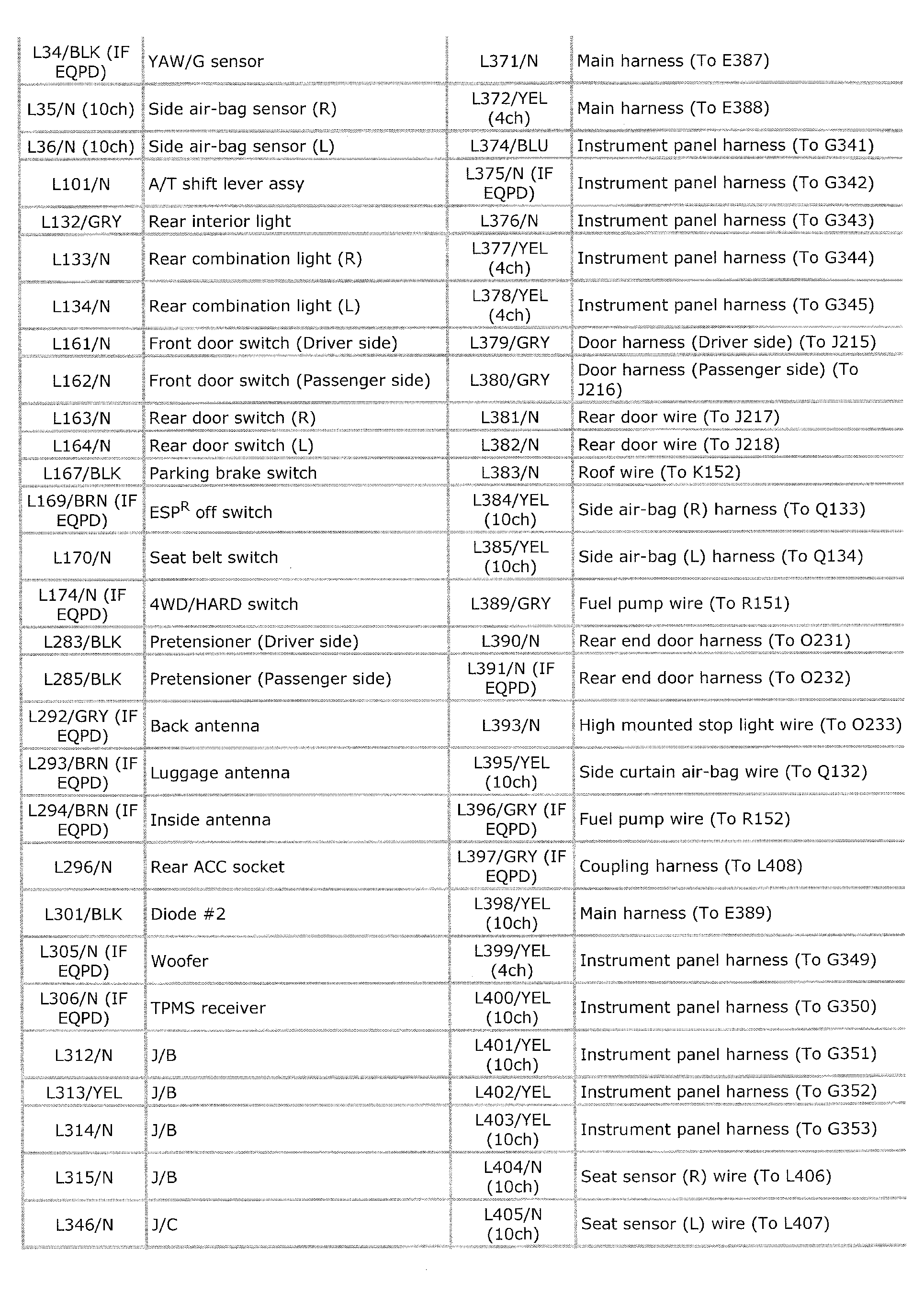

Fig 22: Vehicle Overview (Right Side) (2 Of 3)

G00451134

Courtesy of SUZUKI OF AMERICA CORP.

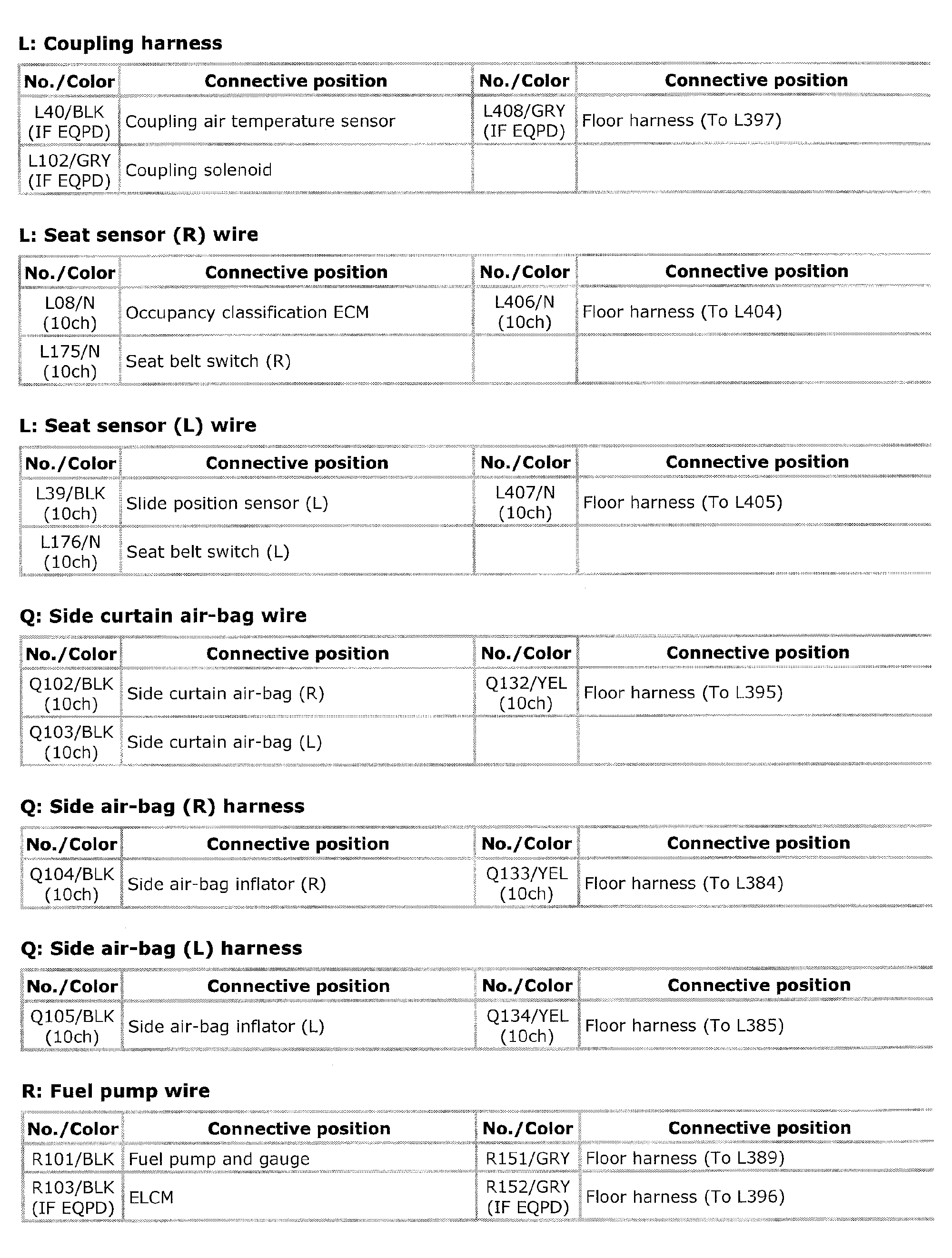

Fig 23: Vehicle Overview (Right Side) (3 Of 3)

G00451135

Courtesy of SUZUKI OF AMERICA CORP.

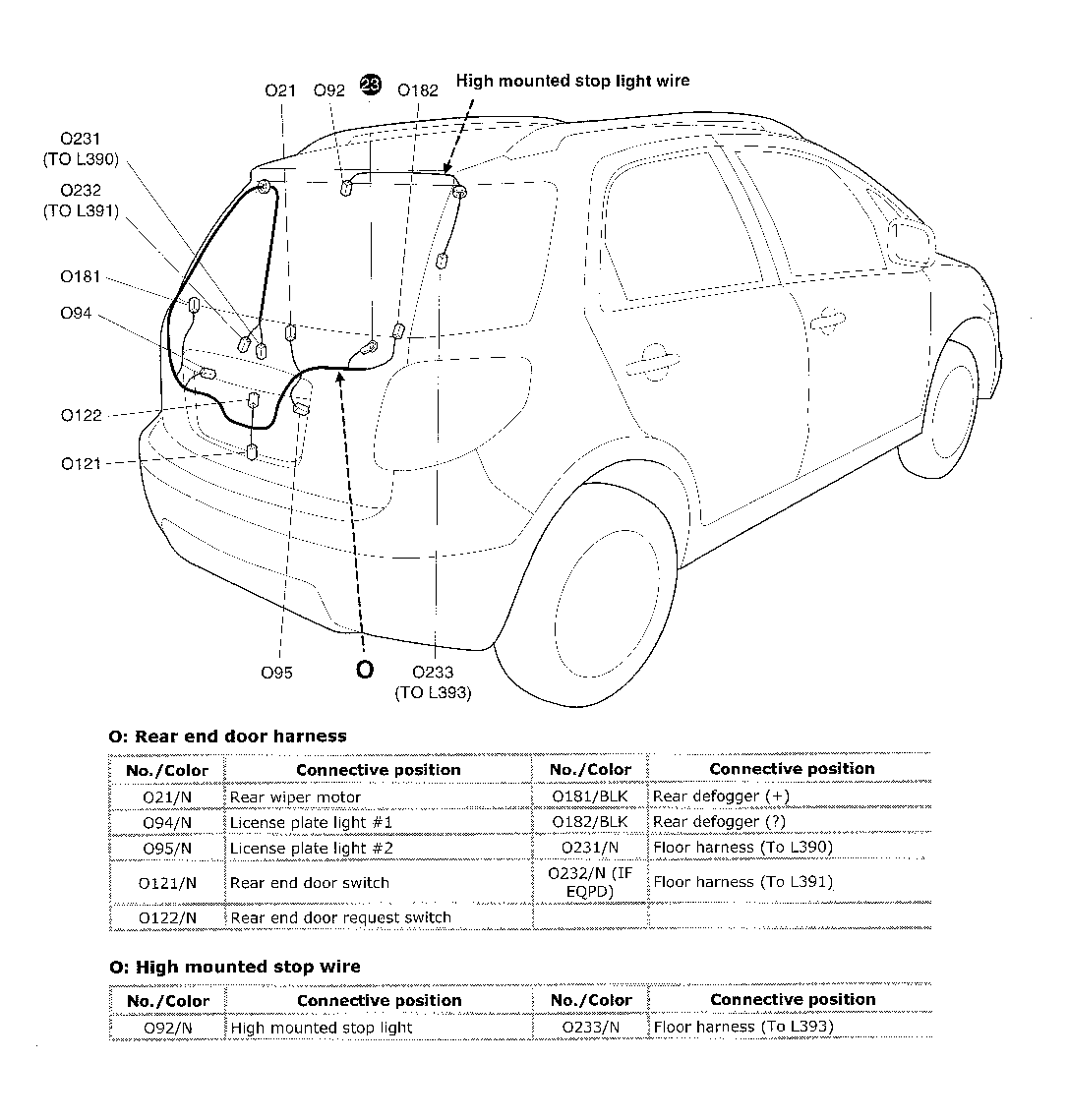

Fig 24: Tailgate Assembly

G00451136

Courtesy of SUZUKI OF AMERICA CORP.

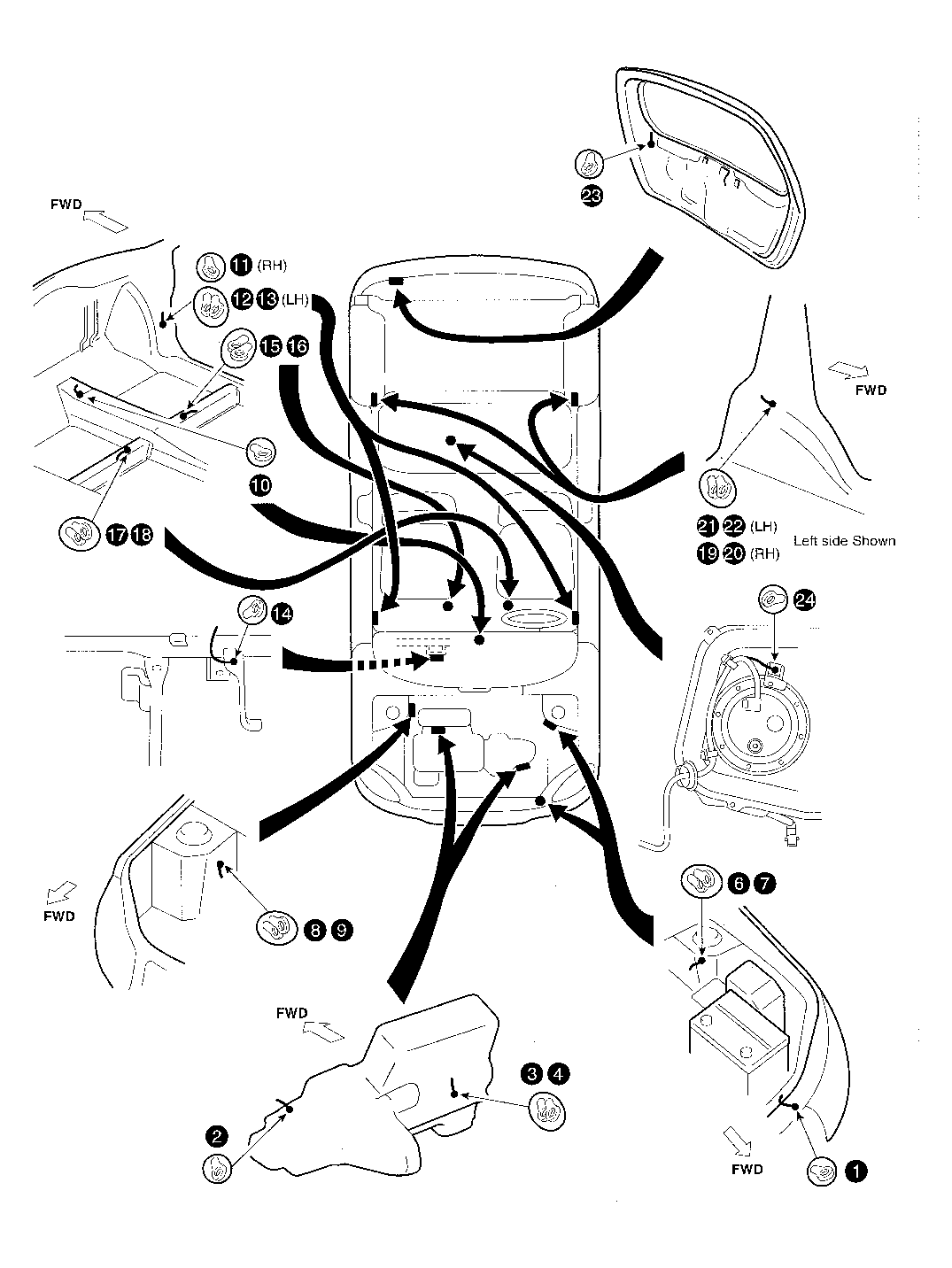

Fig 25: Vehicle Overview

G00451137

Courtesy of SUZUKI OF AMERICA CORP.
