Starting Motor Unit Components

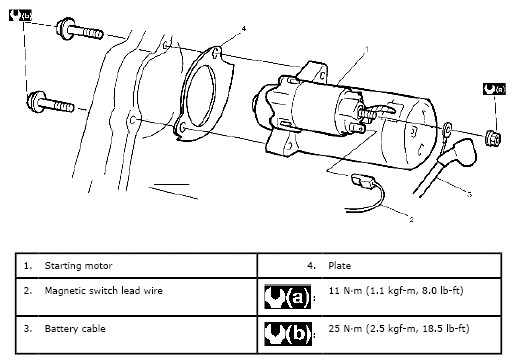

Fig 1: Identifying Starting Motor Unit Components With Tightening Torque
G04847075Courtesy of SUZUKI OF AMERICA CORP.
