EVAP System Components

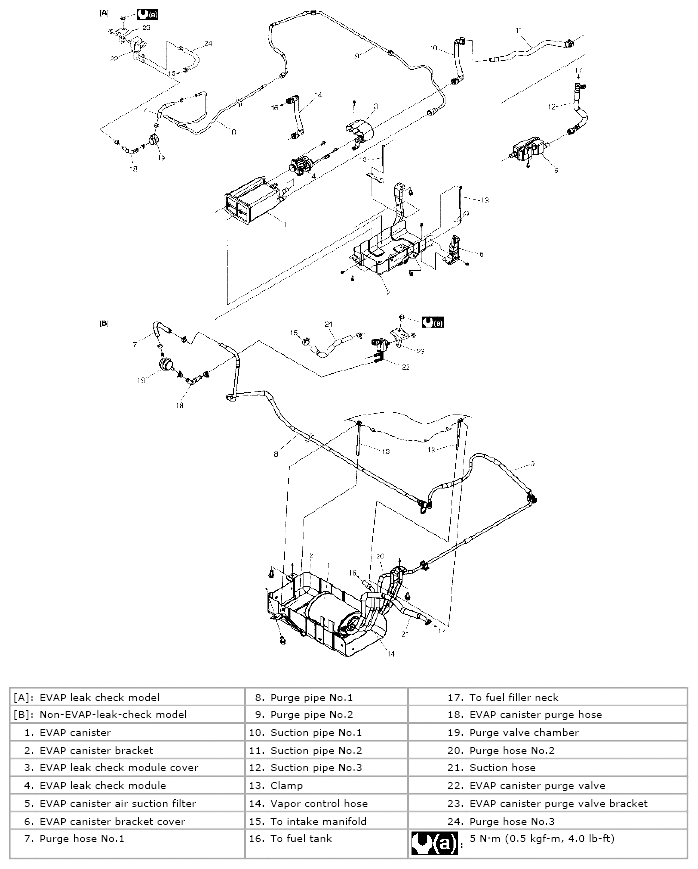

Fig 1: Identifying EVAP System Components And Tightening Torques
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
