Electronic Shift Control System Components Location

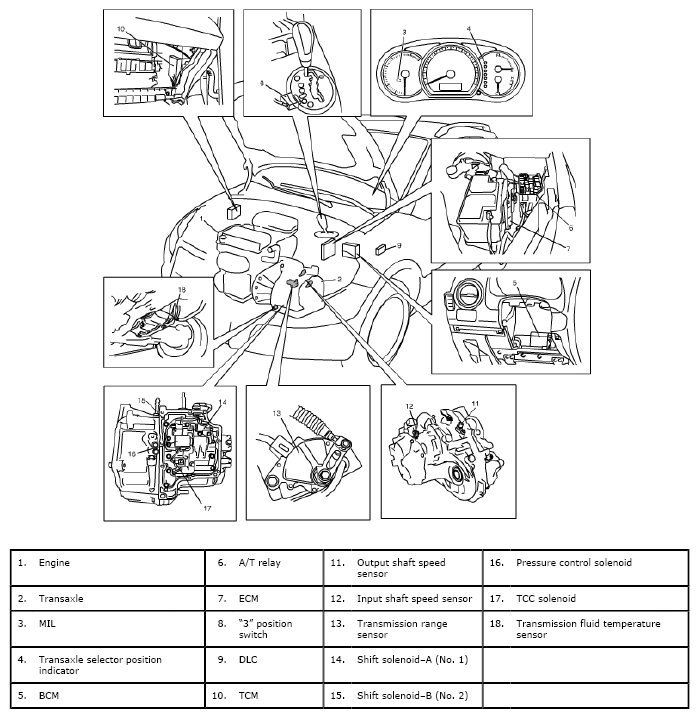

Fig 1: Identifying Electronic Shift Control System Components
G04847720Courtesy of SUZUKI OF AMERICA CORP.
