Clutch/Brake/Planetary Gear Function of Automatic Transaxle: Notes

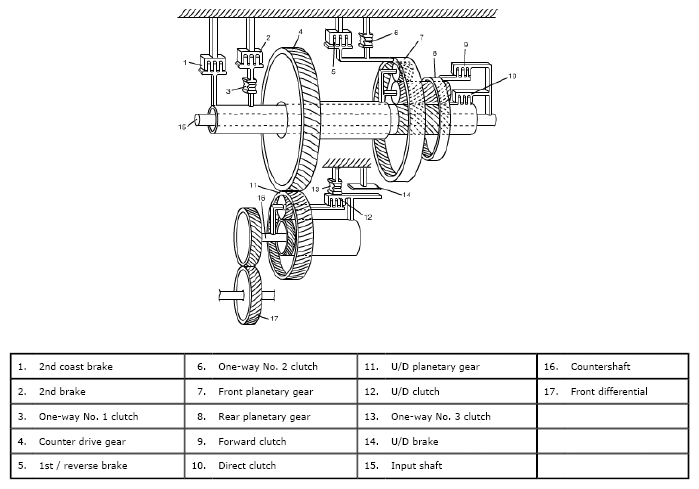

Fig 1: Planetary Gear Function Of Automatic Transaxle
G04847712Courtesy of SUZUKI OF AMERICA CORP.
