Electronic Shift Control Input/Output Table

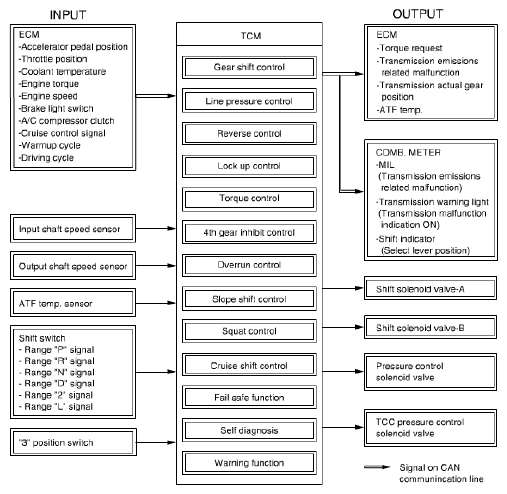

Fig 1: Identifying Electronic Shift Control Input/Output Flow Diagram
G04847717Courtesy of SUZUKI OF AMERICA CORP.
