Automatic Transaxle Assembly Components

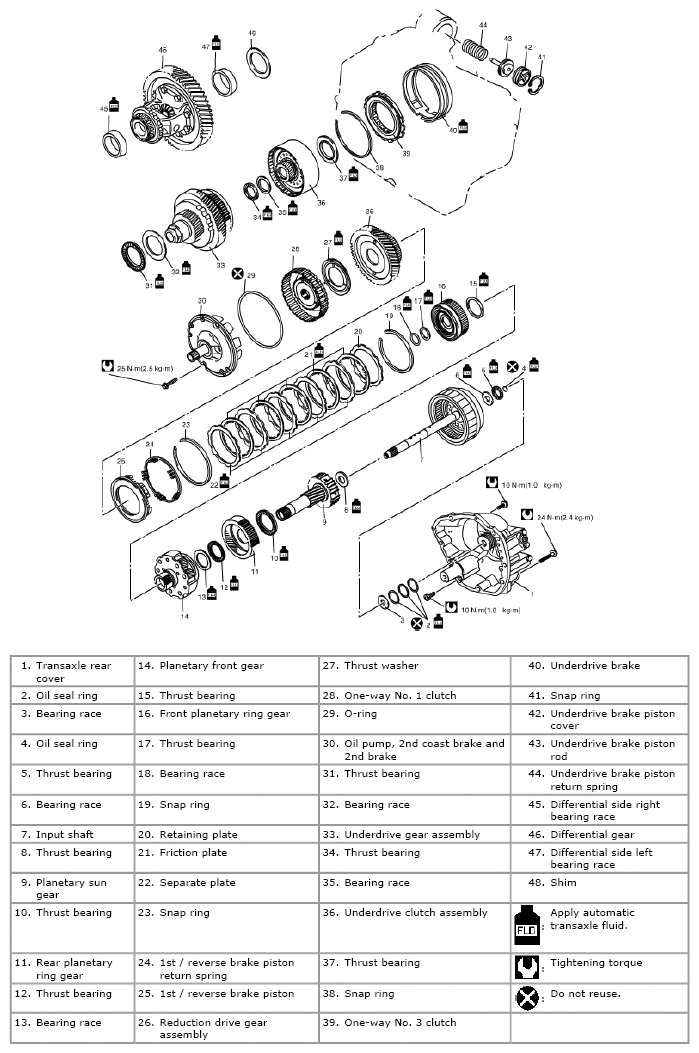

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

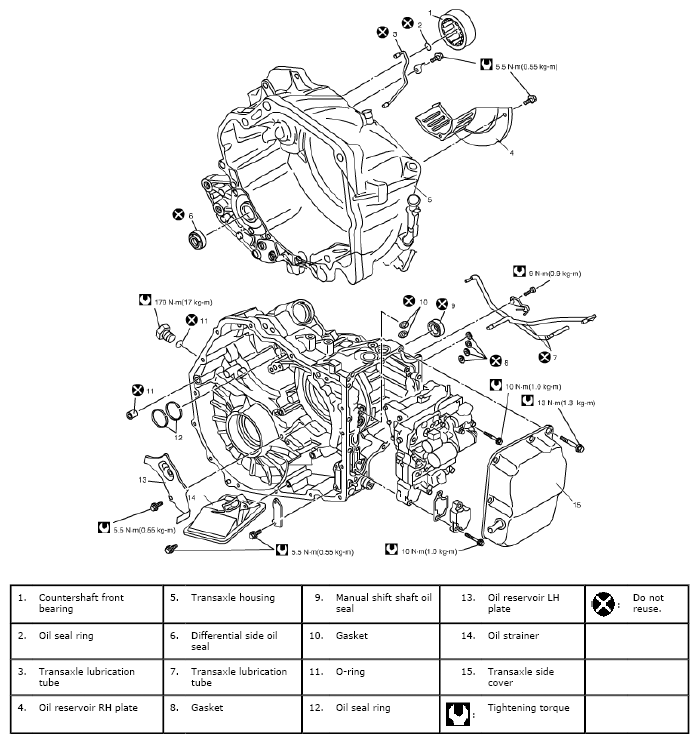

Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

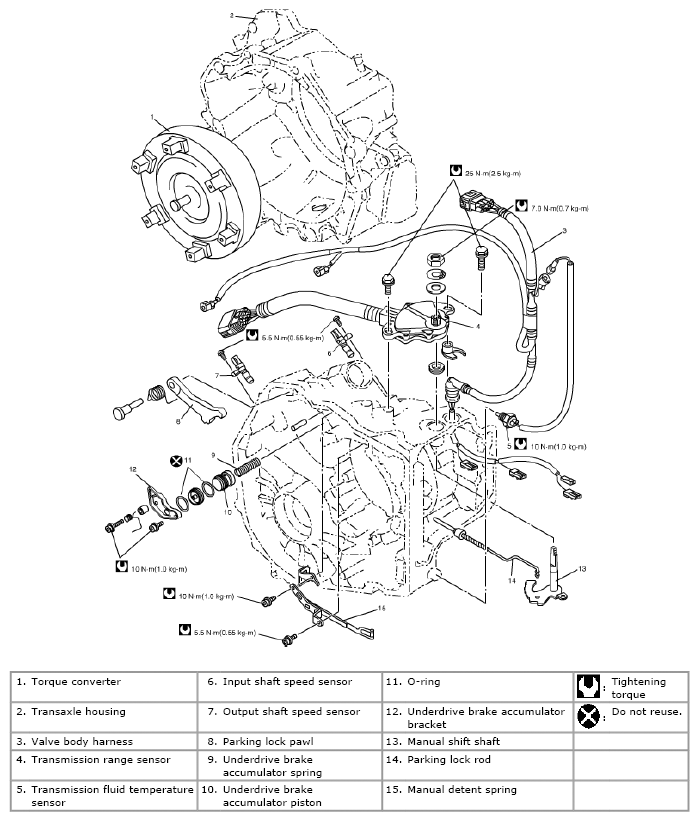

Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
