Automatic Transaxle Unit Components

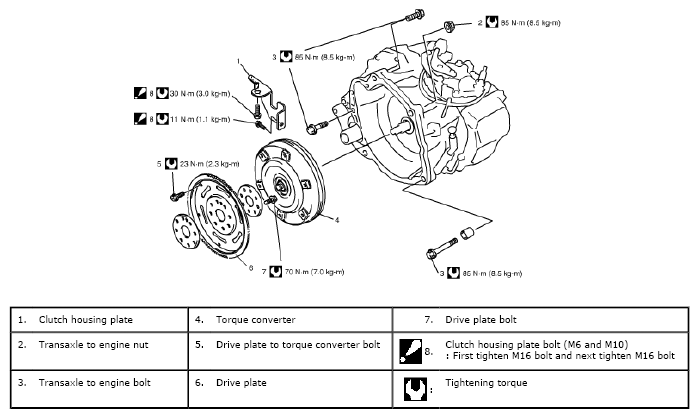

Fig 1: Automatic Transaxle Unit Components With Torque Specifications
G04847807Courtesy of SUZUKI OF AMERICA CORP.
