Select Cable Components

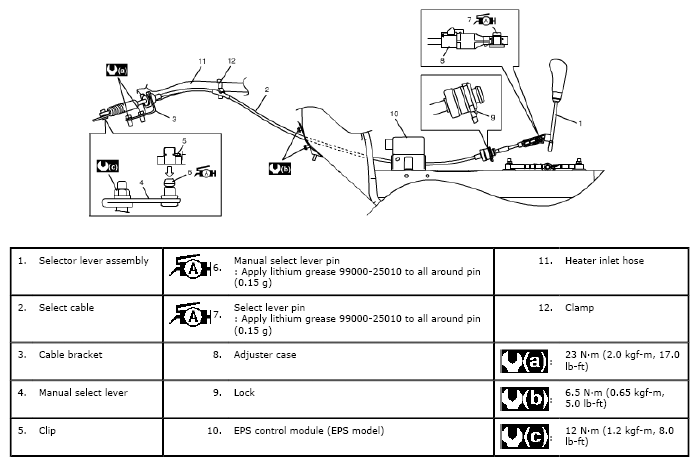

Fig 1: Select Cable Replacement Components With Torque Specifications

G04847764

Courtesy of SUZUKI OF AMERICA CORP.
