Transmission Control Module (TCM) Wiring Diagram: Notes

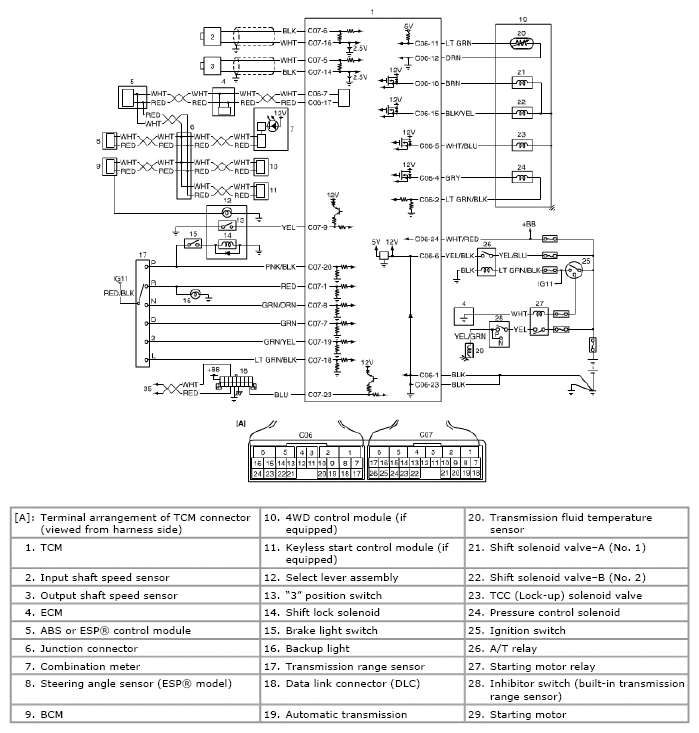

Fig 1: Identifying Transmission Control Module (TCM) Wiring Diagram
G04847718Courtesy of SUZUKI OF AMERICA CORP.
