Battery Tray Replacement

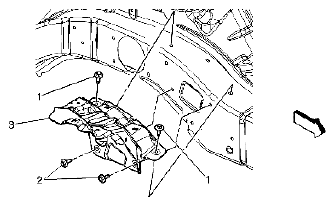

Fig 1: Battery Tray, Upper And Lower Bolts

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Remove the battery box assembly. Refer to REMOVAL PROCEDURE .
1	Battery Tray Upper Bolt (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque Tighten the bolts to 25 N.m (18 lb ft).
2	Battery Tray Lower Bolt (Qty: 2) Tightening torque Tighten the bolts to 25 N.m (18 lb ft).
3	Battery Tray
