Shift Lock Control Component Views (Notchback)

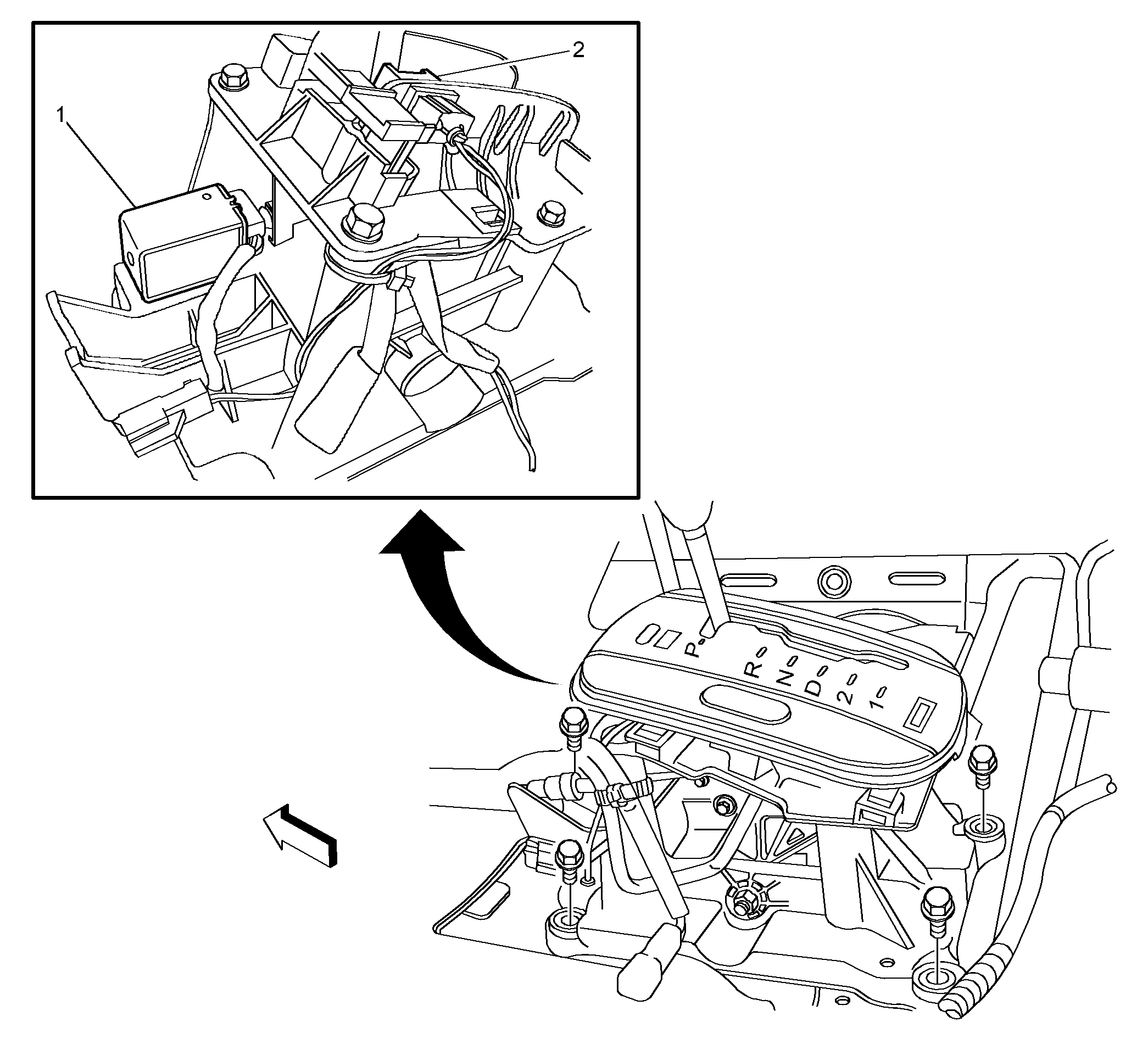

Fig 1: Shift Lock Control Component Views (Notchback)
GM1908926Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission Shift Lock Control Solenoid
2 Park Position Switch
