Installation Procedure

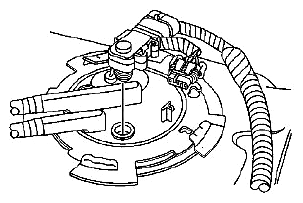

Fig 1: Identifying Fuel Tank Pressure Sensor And Fuel Pump Module Assembly
G05465735Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the fuel tank pressure sensor to the fuel pump module assembly. Ensure that the sensor grommet is fully seated to the pump module.

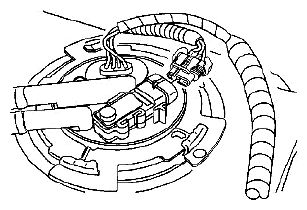

    Fig 2: Identifying Fuel Pump Module Harness Electrical Connector And Fuel Tank Pressure Sensor
    G05465736Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect the pump module electrical connector to the fuel tank pressure sensor.
  3. Install the fuel tank. Refer to FUEL TANK REPLACEMENT (FWD)  or FUEL TANK REPLACEMENT (AWD) .
