Installation Procedure

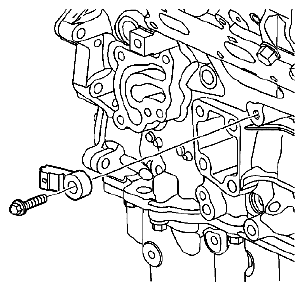

Fig 1: Identifying Knock Sensor Bolt

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .

Position the knock sensor and tighten the knock sensor bolt.
Tightening torque

Tighten the bolt to 23 N.m (17 lb ft).

Fig 2: Identifying Engine Wiring Harness Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the engine wiring harness electrical connector (2) to the bank 2 knock sensor.
Lower the vehicle.
