Body Control Systems: Service and Repair

BCM (Body Control Module): Removal And Installation

REMOVAL

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to [Additional Service When Replacing Control Unit].

1. Disconnect the battery negative terminal.
2. Remove the lower instrument panel LH. Refer to [Instrument Panel Assembly: Exploded View].
3. Remove the knee protector. Refer to [Instrument Panel Assembly: Exploded View].

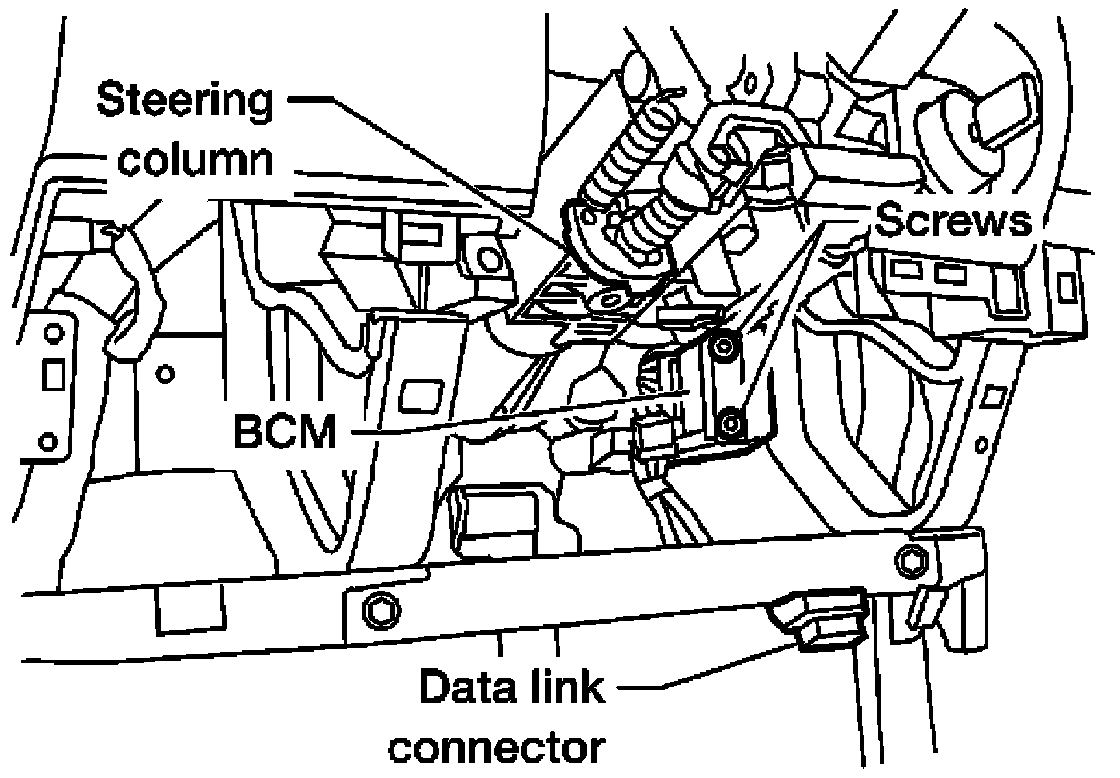

4. Remove the BCM screws and release the BCM.






5. Disconnect the BCM connectors and then remove the BCM.

INSTALLATION
Installation is in the reverse order of removal.

NOTE:
- When replacing the BCM, it must be configured. Refer to [Body Control System: Configuration].
- When replacing the BCM, perform initialization of immobilizer system and registration of all immobilizer system ignition key IDs. Refer to [Body Control System: Configuration].
- When replacing the BCM, perform ID registration procedure of low tire pressure warning system. Refer to [ID Registration Procedure].
- When replacing the BCM, if equipped with remote keyless entry, register the remote keyless entry system keyfob ID codes. Refer to [Additional Service When Replacing Control Unit].
- When replacing the BCM, if equipped with VOC, perform adjustment procedure for the steering angle sensor. Refer to [Adjustment of Steering Angle Sensor Neutral Position].
