Front Fender: Service and Repair

Front Fender: Removal And Installation







REMOVAL

1. Remove headlamp assembly. Refer to [Headlamp: Removal and Installation].
2. Remove front fender protector. Refer to [Front Fender Protector: Removal and Installation].
3. Remove front bumper. Refer to [Front Bumper: Removal and Installation].

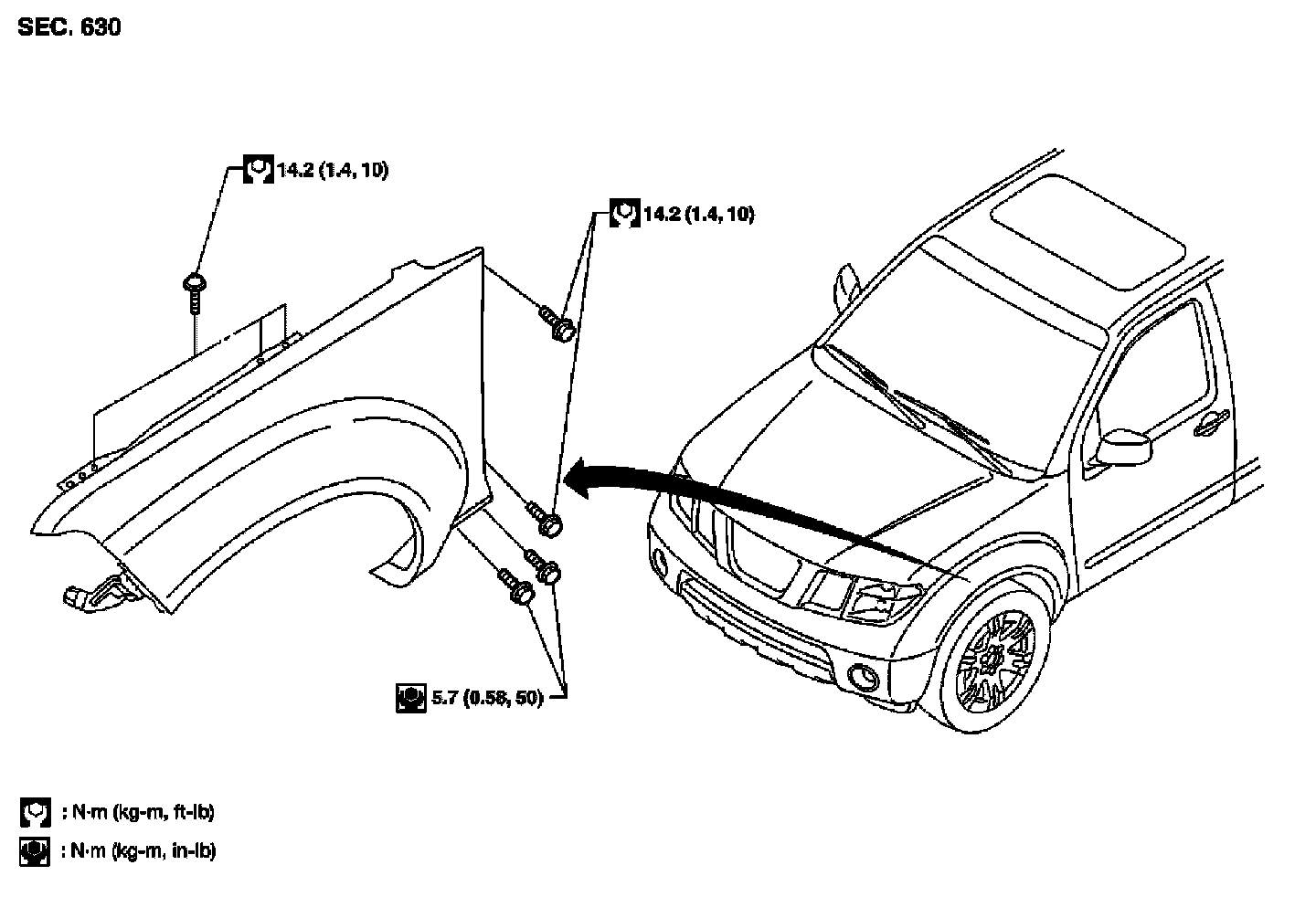

4. Remove front fender bolts from hoodledge and dash panel.
5. Remove front fender bolts from rocker panel and radiator core support member.
6. Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.
