Control Unit, Differential Lock

Differential Lock Control Unit: Wiring Diagram

Rear Final Drive

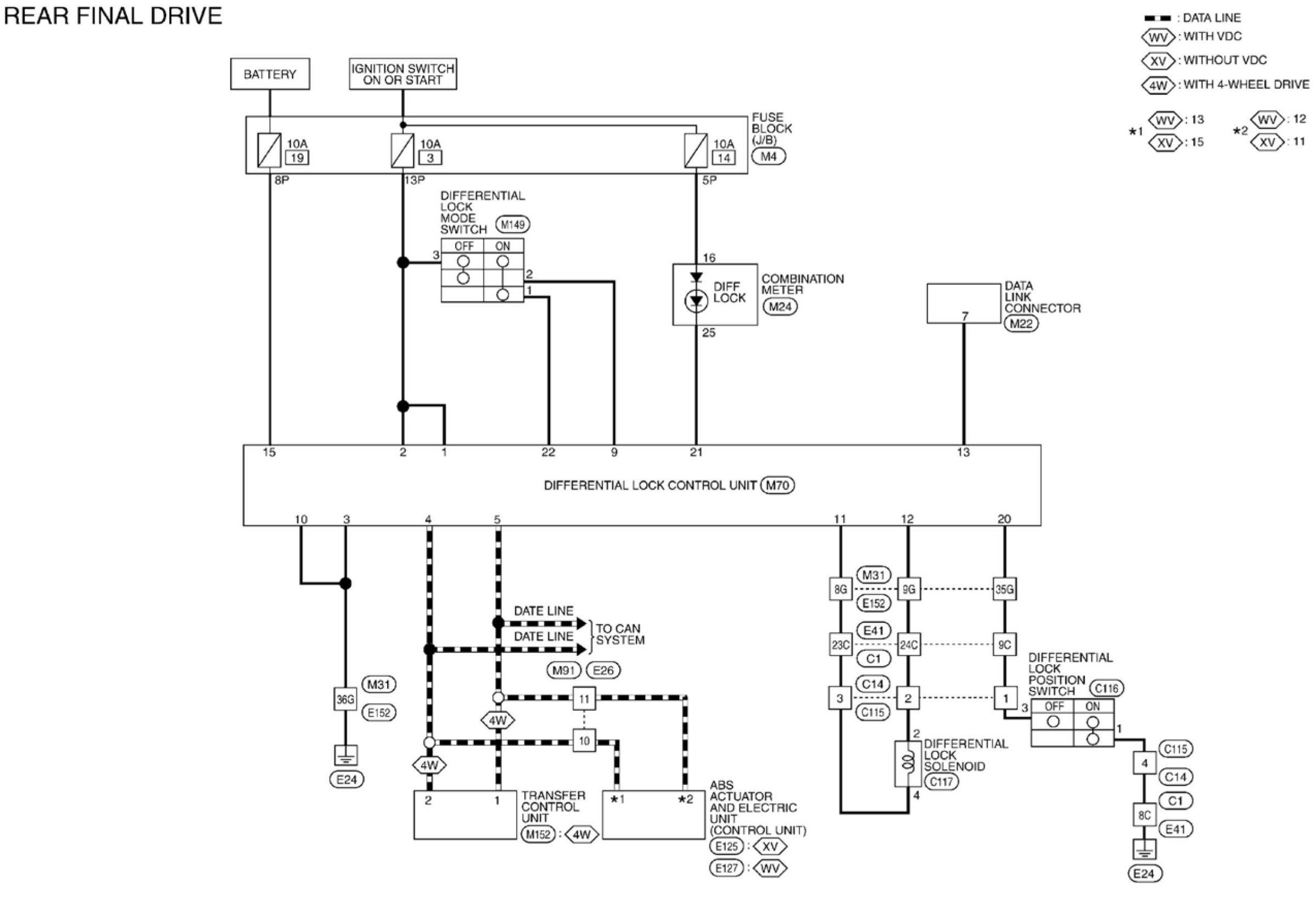

Rear Final Drive:

Rear Final Drive Connectors

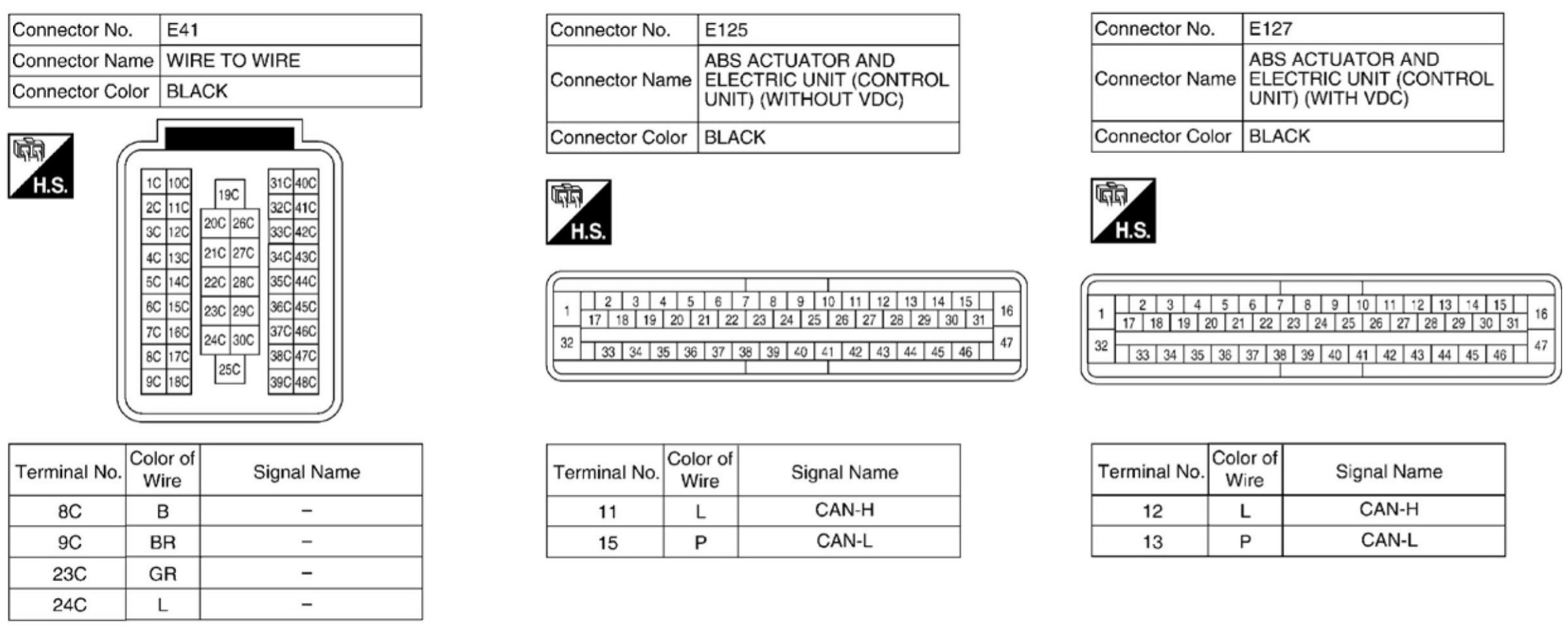

Rear Final Drive Connectors (Part 1):

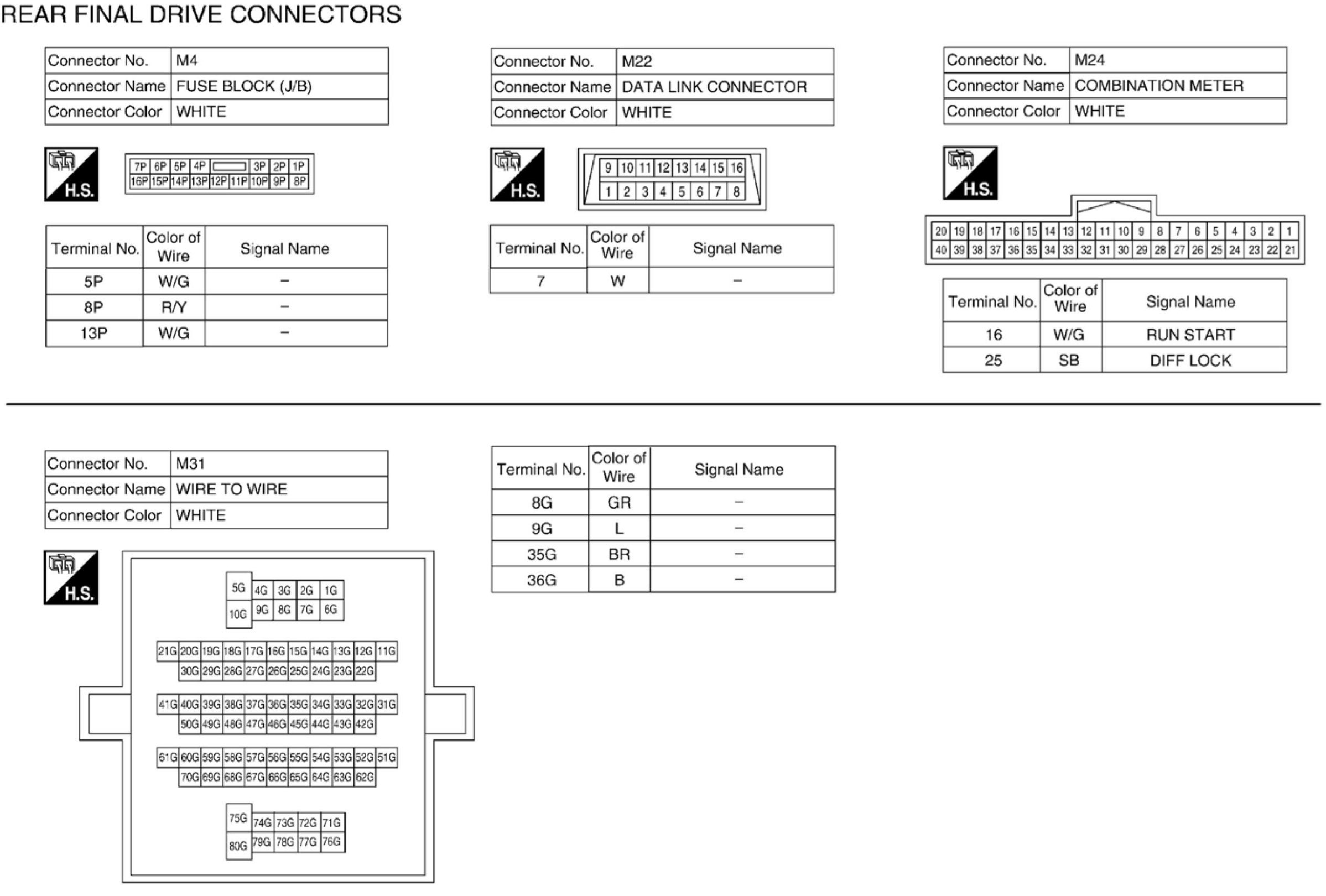

Rear Final Drive Connectors (Part 2):

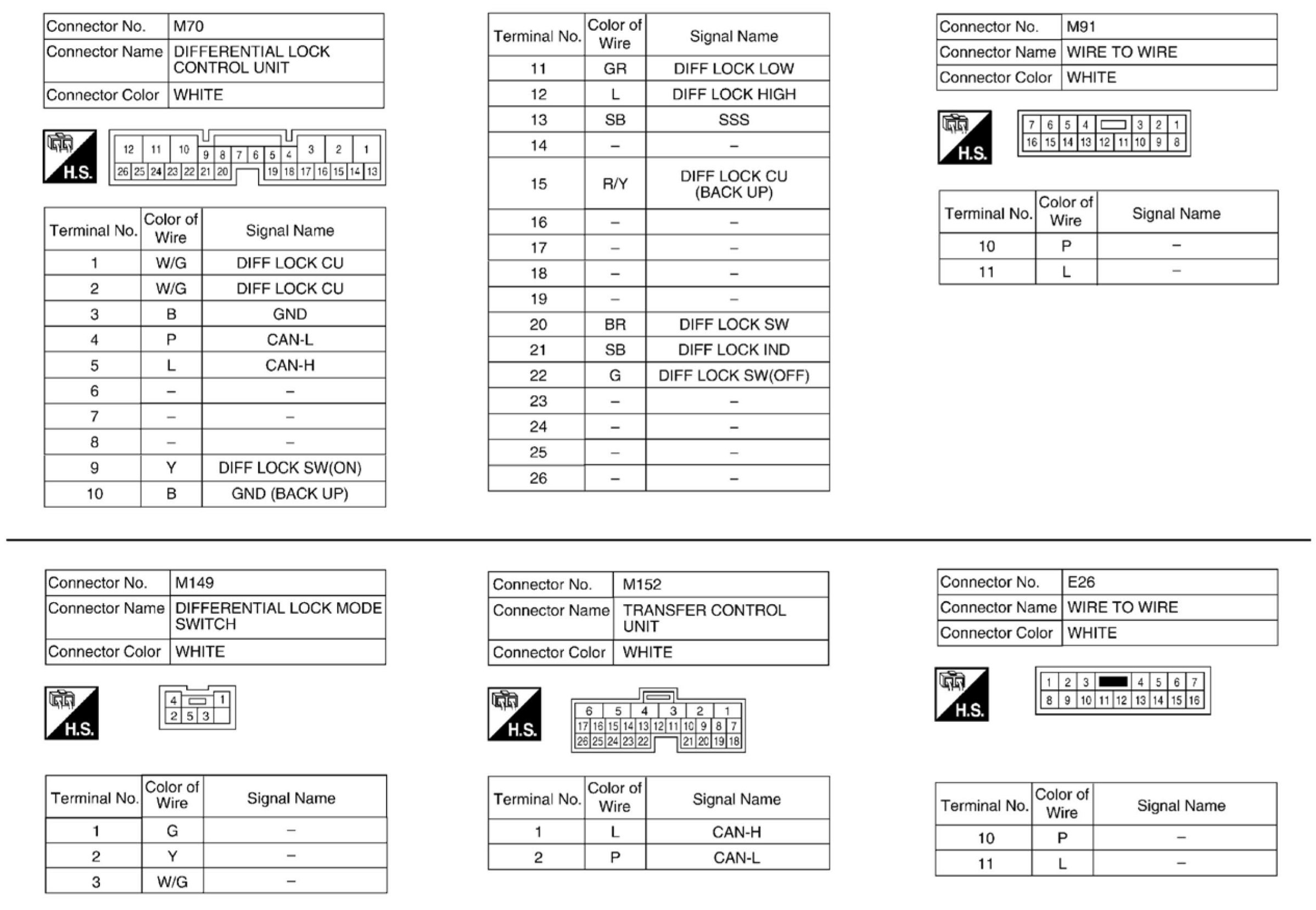

Rear Final Drive Connectors (Part 3):

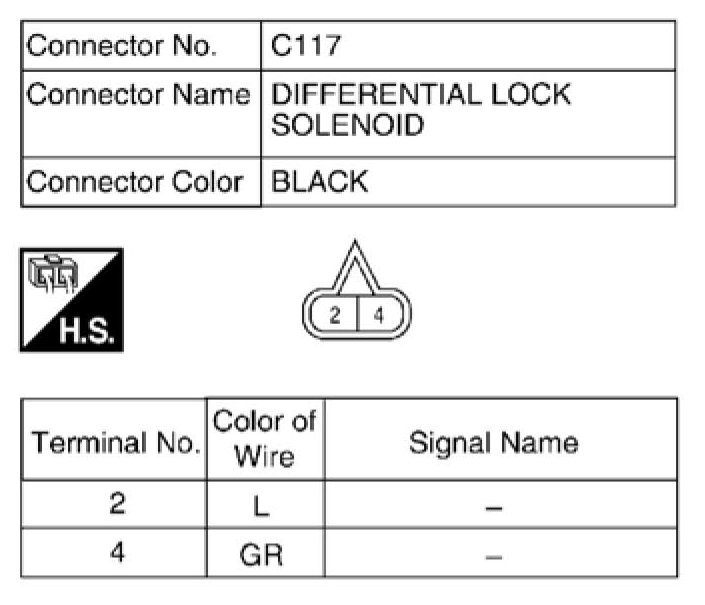

Rear Final Drive Connectors (Part 4):

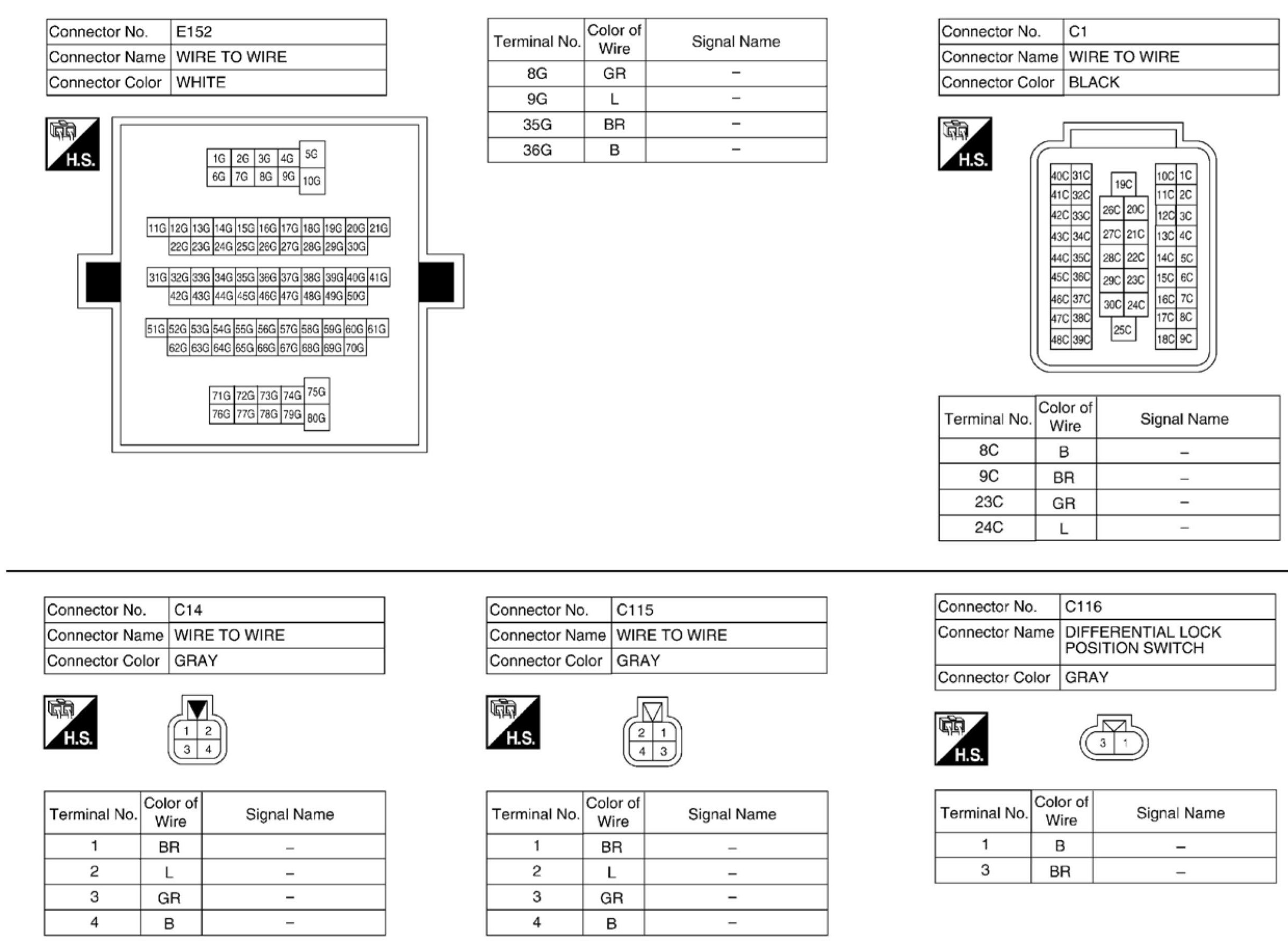

Rear Final Drive Connectors (Part 5):
