Relay Control System: System Diagram
Relay Control System: System Diagram

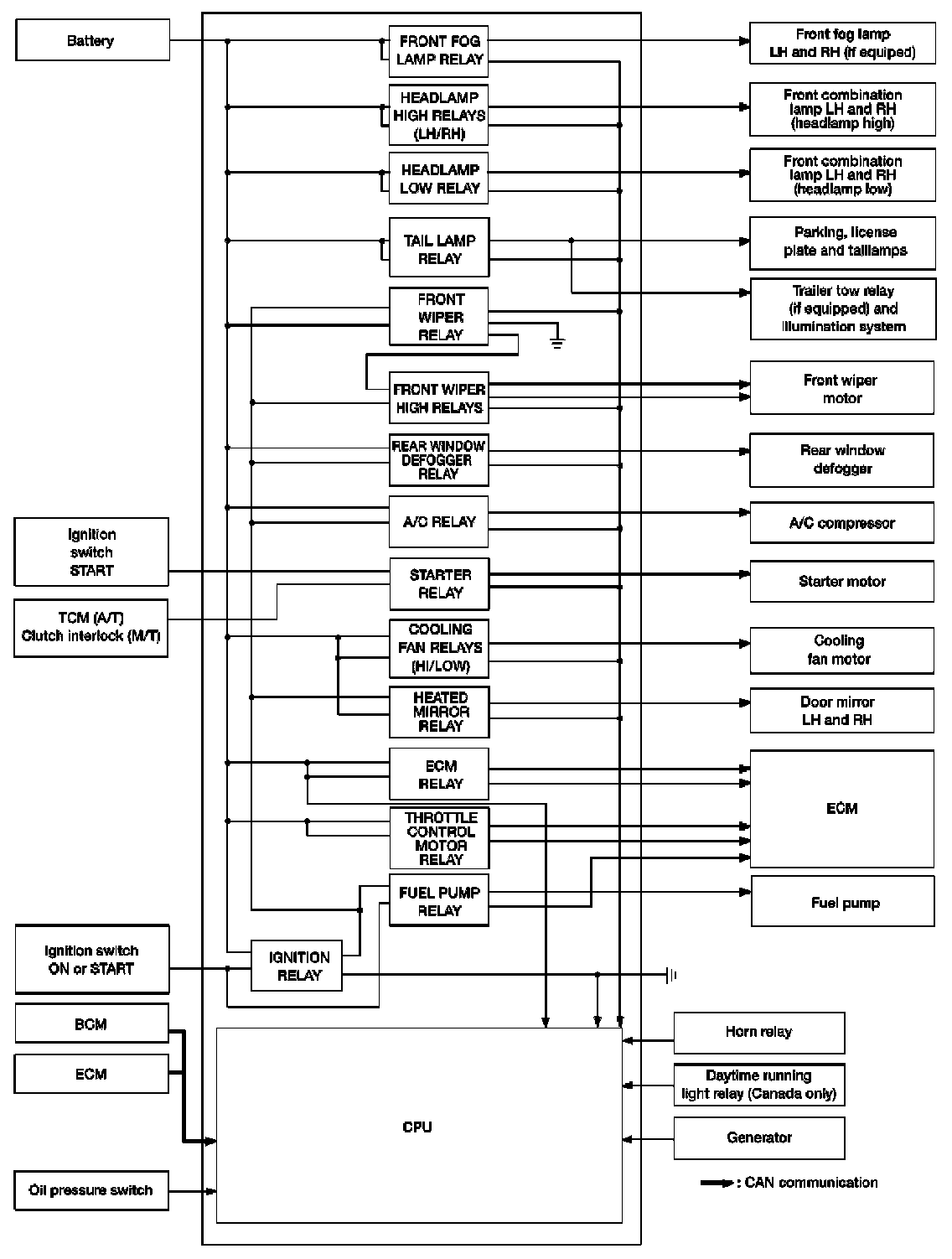

Relay Control System: System Diagram:
