Refrigeration System: Component

Refrigeration System: Component

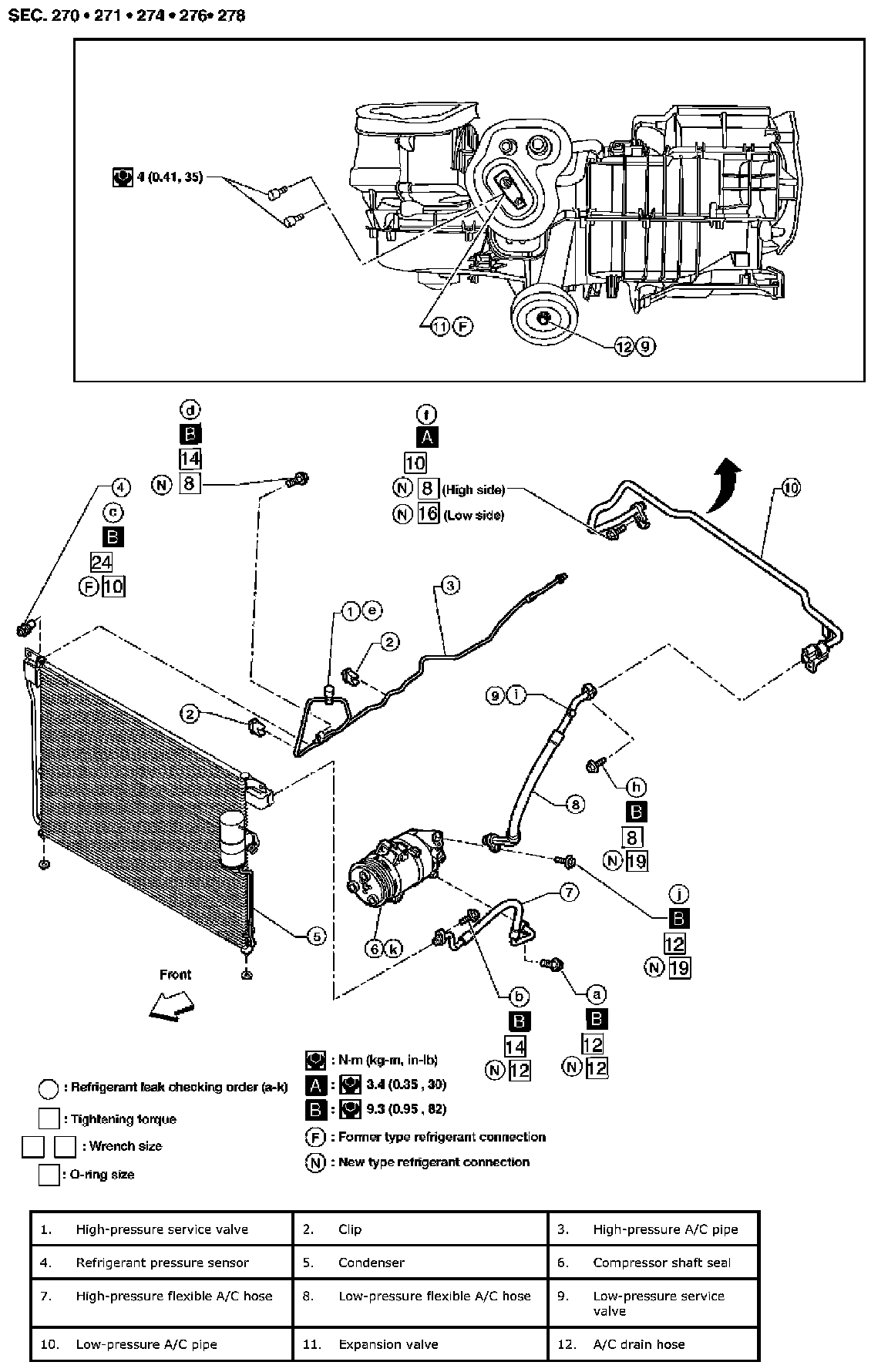

A/C Compressor and Condenser






NOTE: Refer to [Precaution for Refrigerant Connection].
