Main Harness

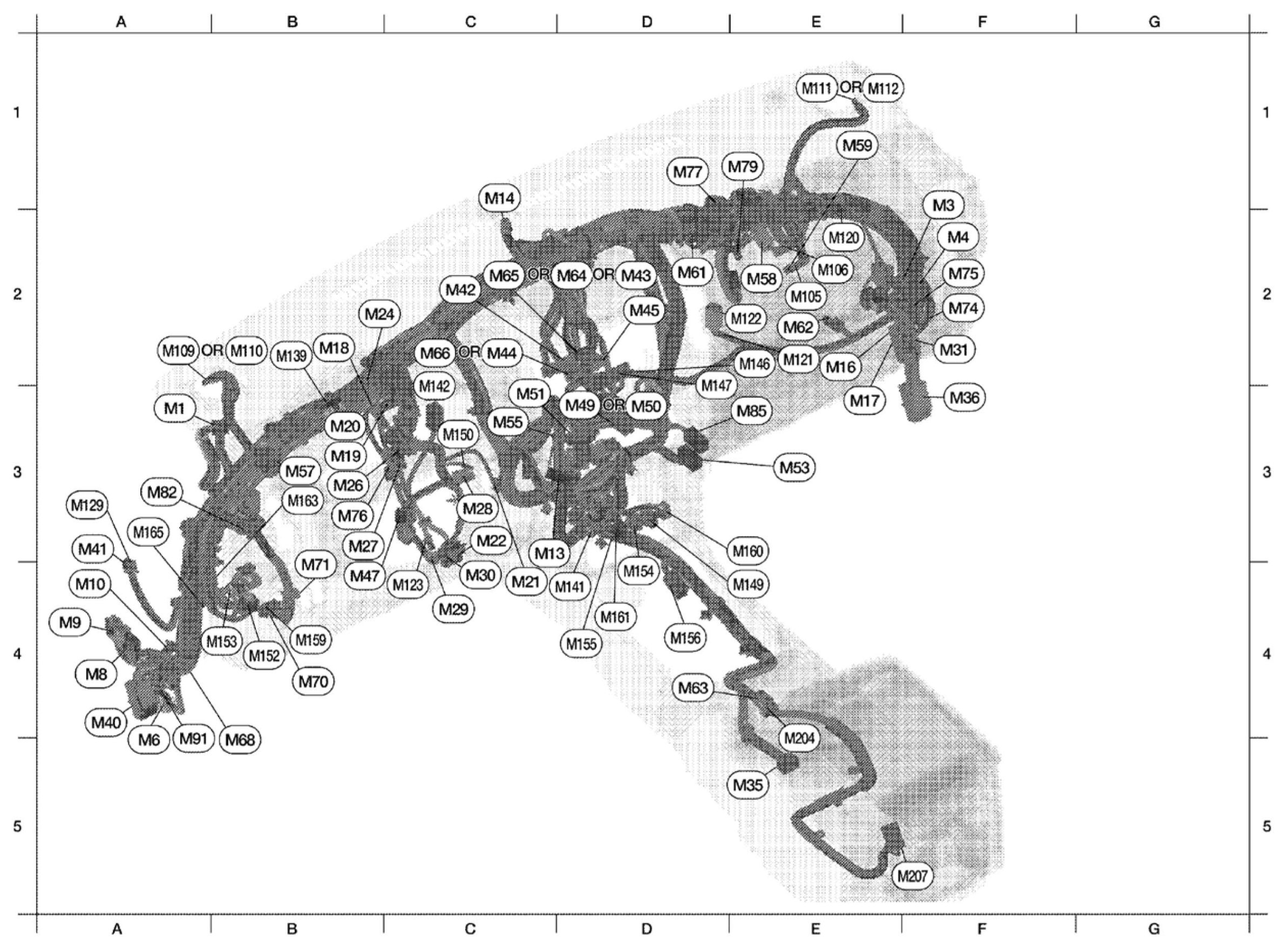

Main Harness View
Main Harness View:

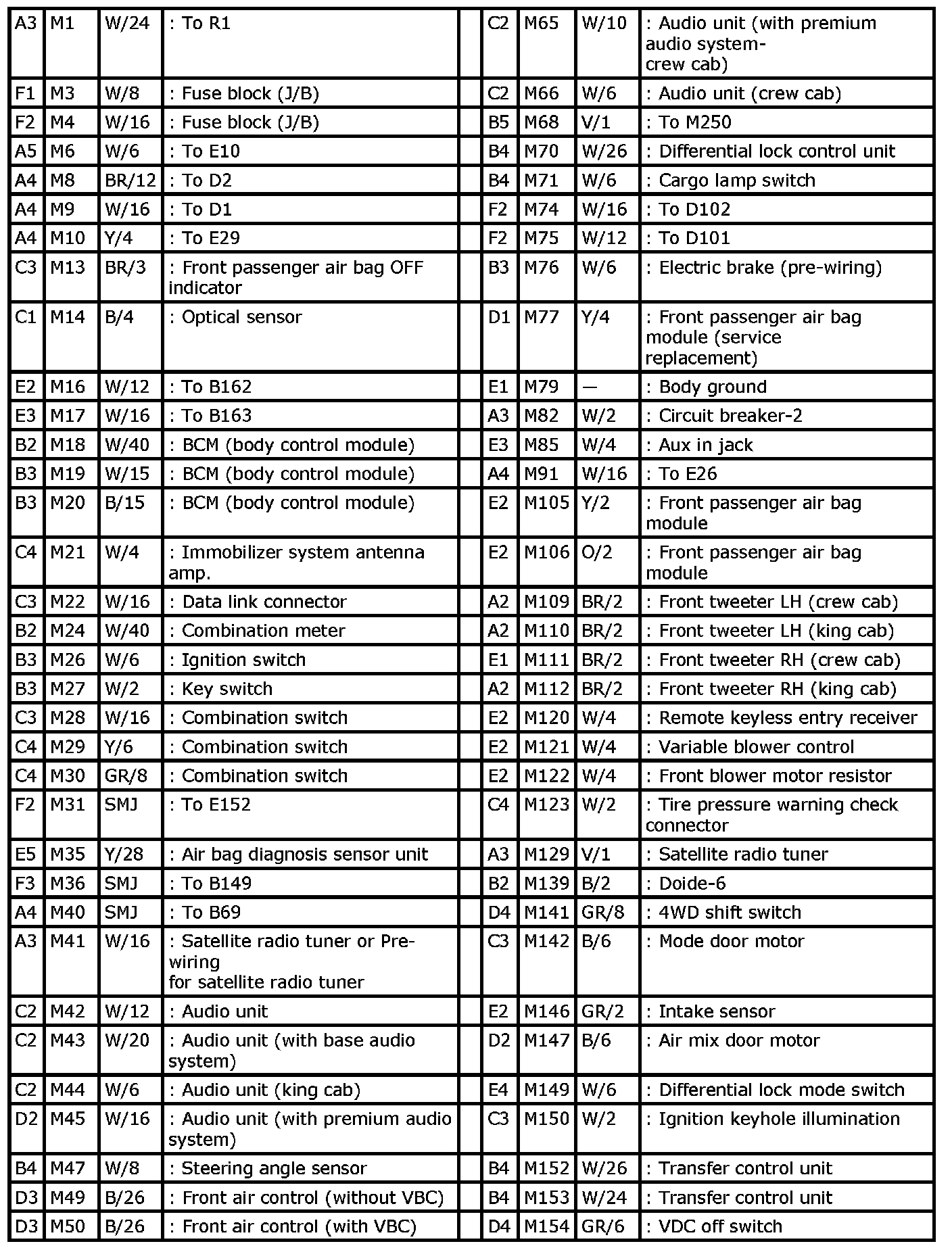

Main Harness Index
Main Harness Index (Part 1):
Main Harness Index (Part 2):
