Power Distribution System: System Description
Power Distribution System: System DescriptionINPUT/OUTPUT SIGNAL CHART

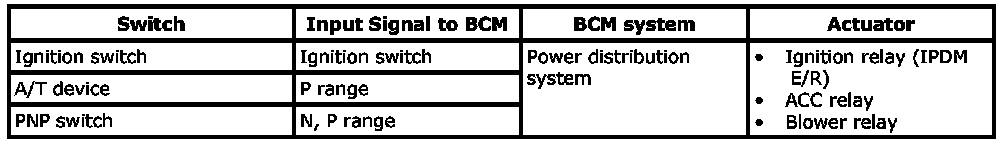

Input/Output Signal Chart:
SYSTEM DESCRIPTION
- PDS (POWER DISTRIBUTION SYSTEM) is the system that BCM controls with the operation of the ignition switch and performs the power distribution to each power circuit.
- The ignition switch operation is input to BCM as a signal. BCM changes the power supply position according to the status and operates the ignition relay (inside IPDM E/R) to supply power to each power circuit.
