SDT Function (IPDM E/R)

SDT Function (IPDM E/R)

APPLICATION ITEM
SDT performs the following functions via CAN communication with IPDM E/R.

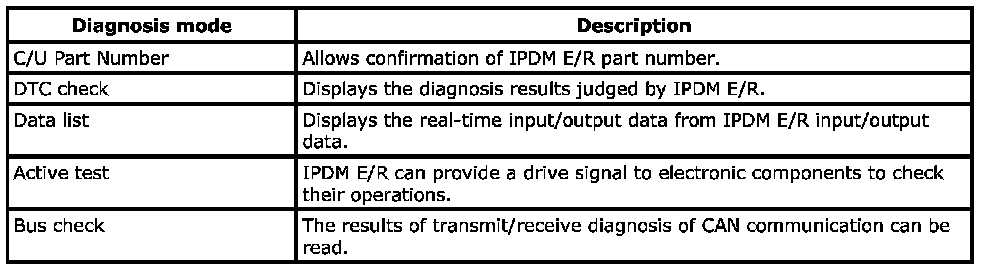

SDT Function (IPDM E/R) - Application Item:

DTC Check
Refer to [DTC Index: IPDM E/R]. Power Control System

Data List
Monitor item

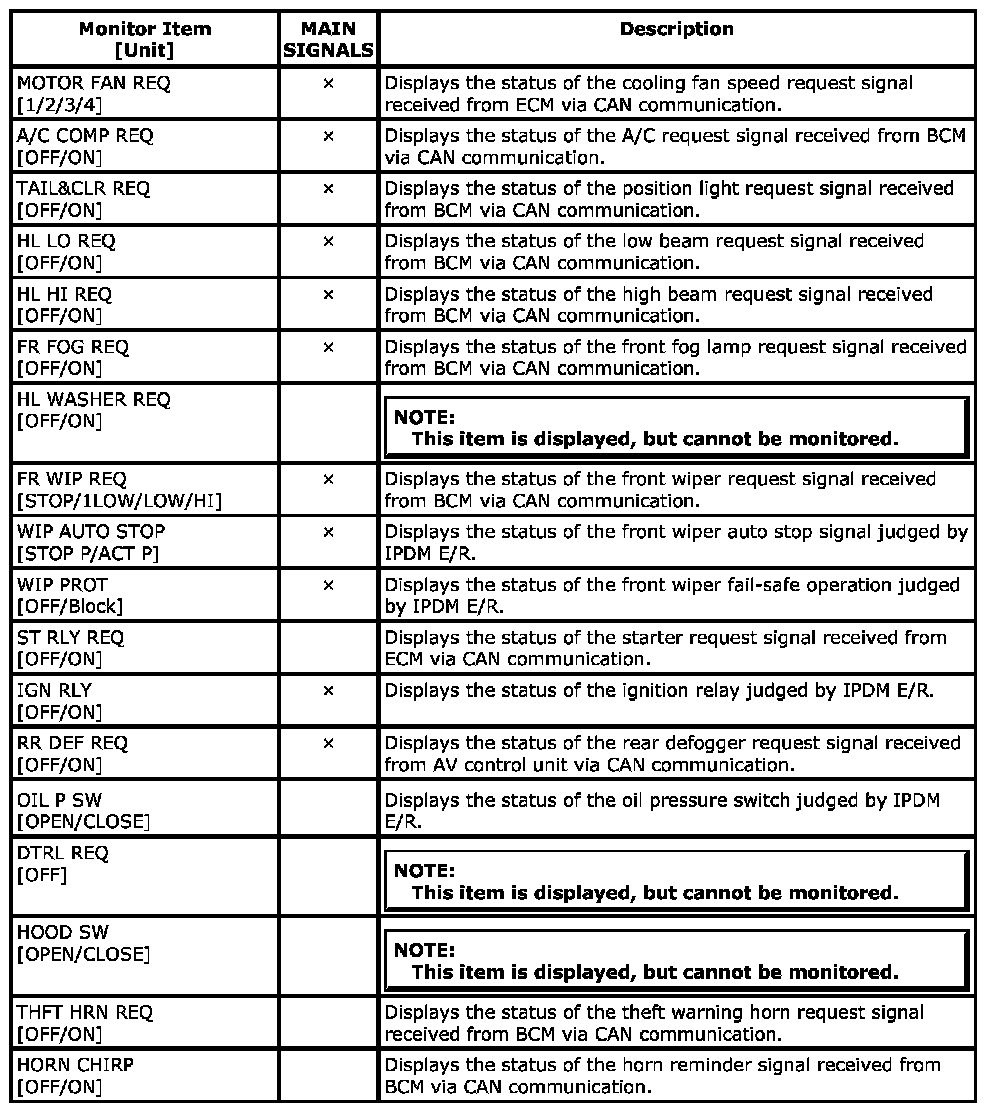

SDT Function (IPDM E/R) - Data List:

Active Test
Test item

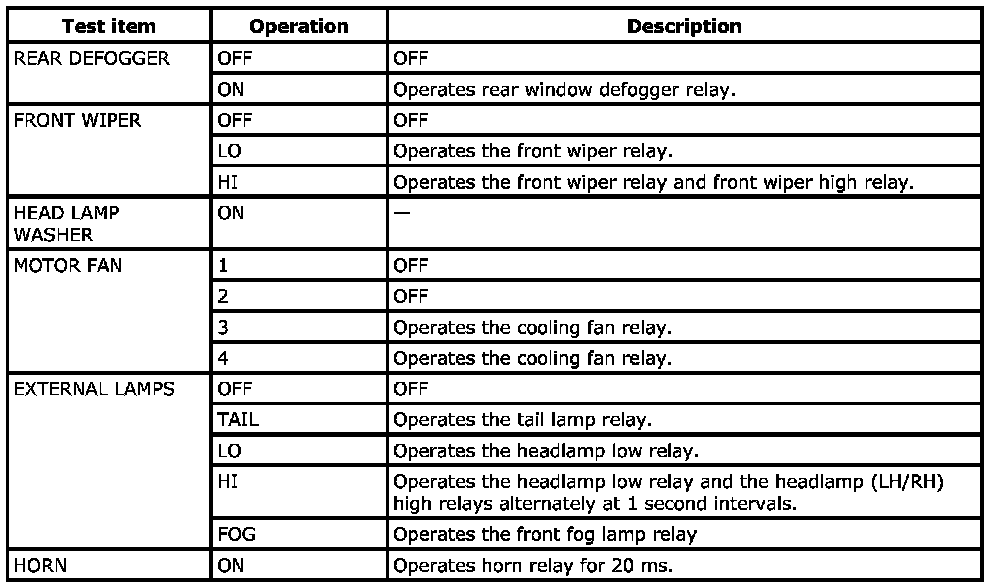

SDT Function (IPDM E/R) - Active Test:
