Fuel Level Sensor: Testing and Inspection

Fuel Level Sensor Signal Circuit Check

Description

The fuel level sensor unit and fuel pump detects the approximate fuel level in the fuel tank and transmits the fuel level signal to the combination meter.

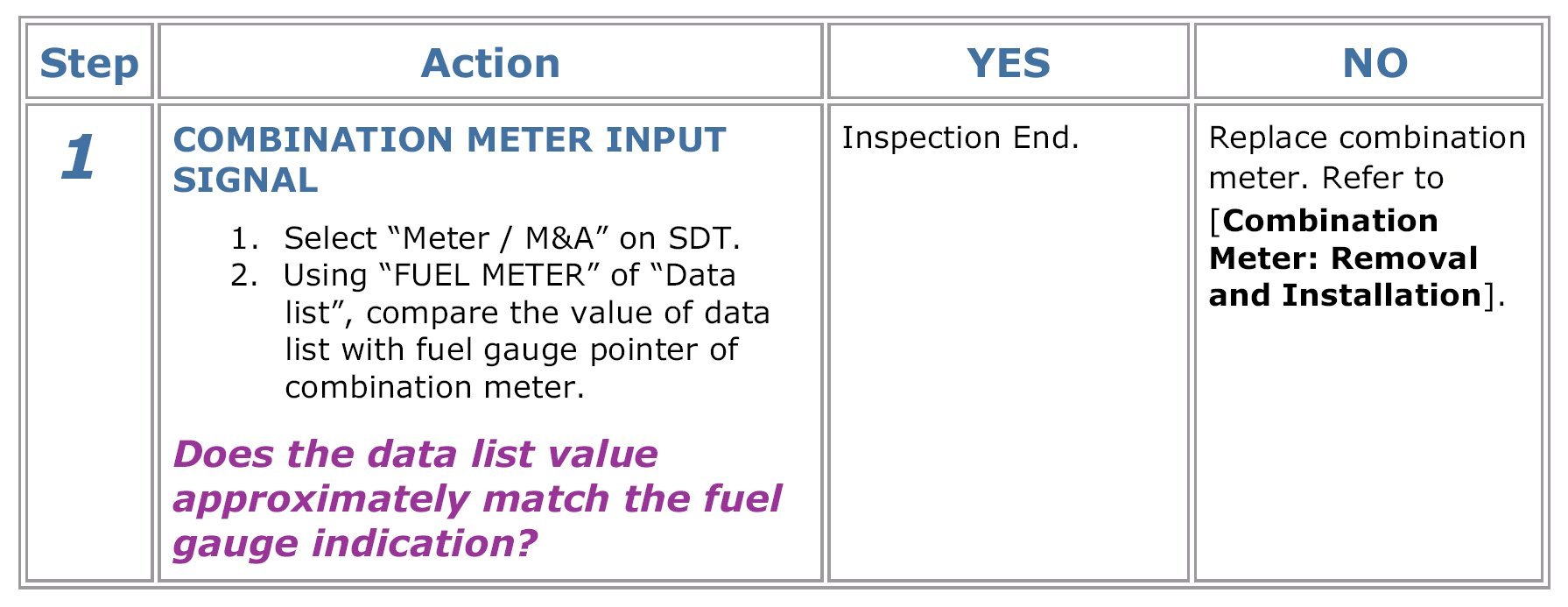

Component Function Check

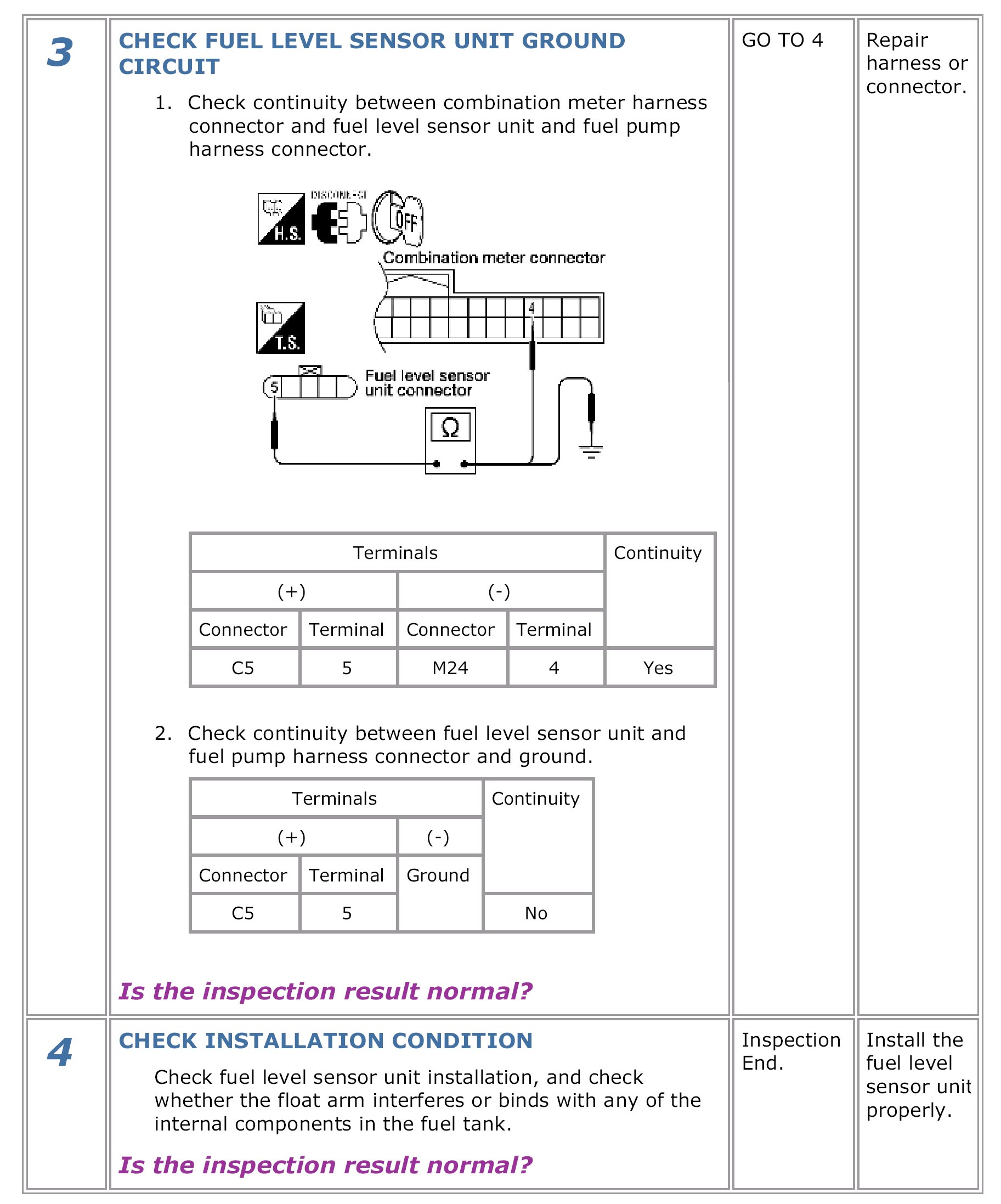

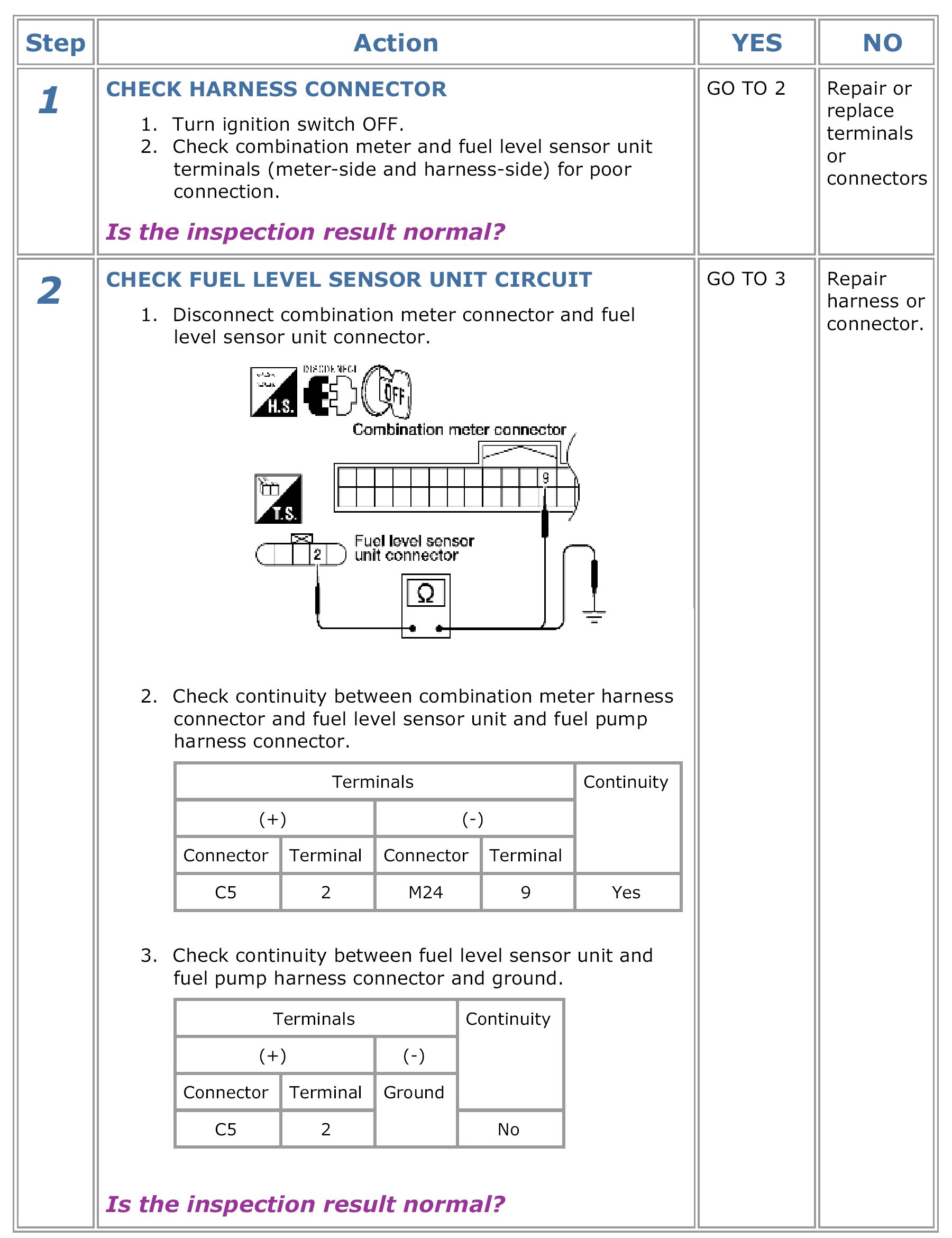

Diagnosis Procedure

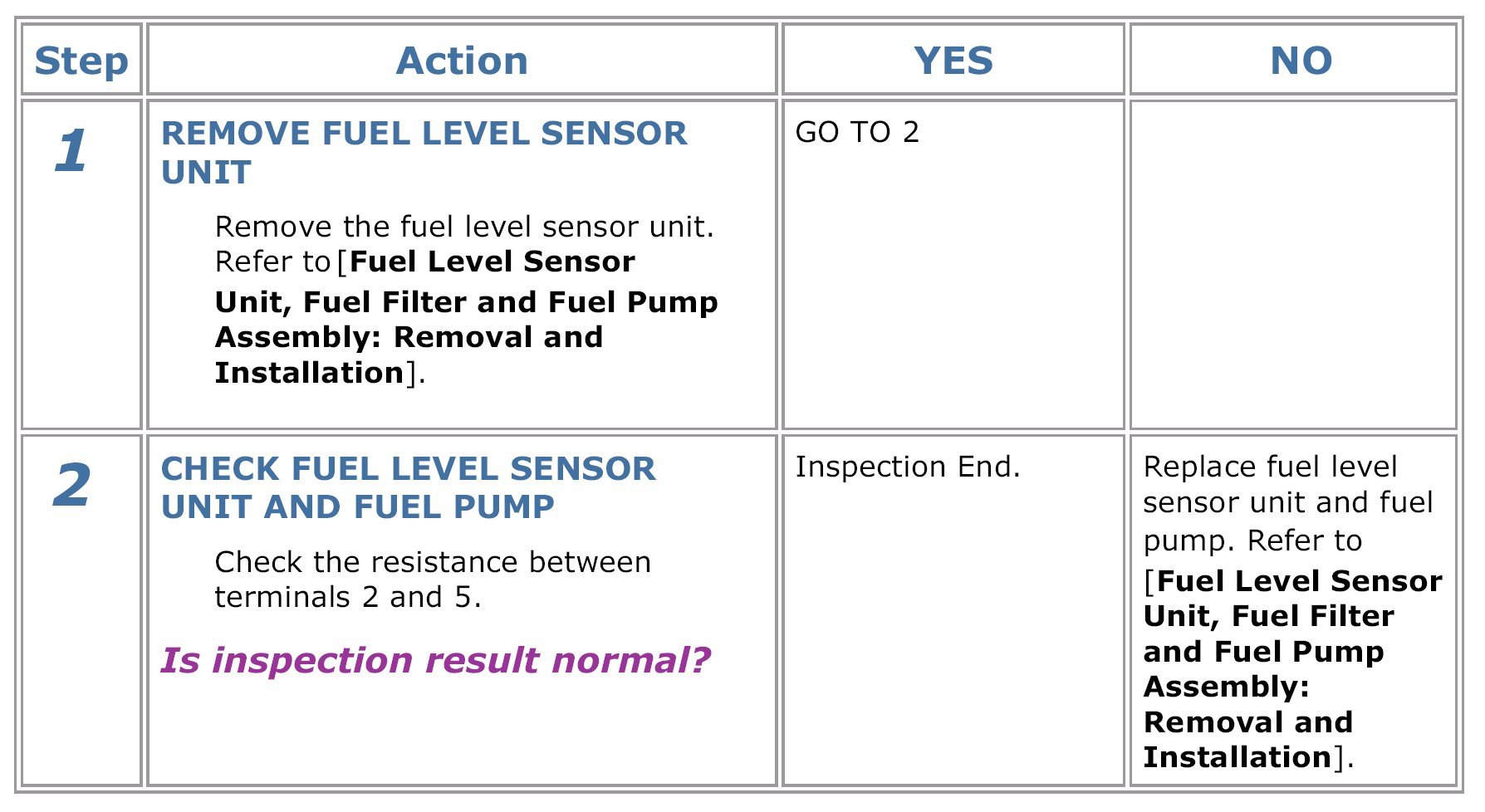

Component Inspection
