LAN System: Bus Check

LAN System: Bus Check

SDT and bus check (on-board diagnosis function) are used for detecting root cause.

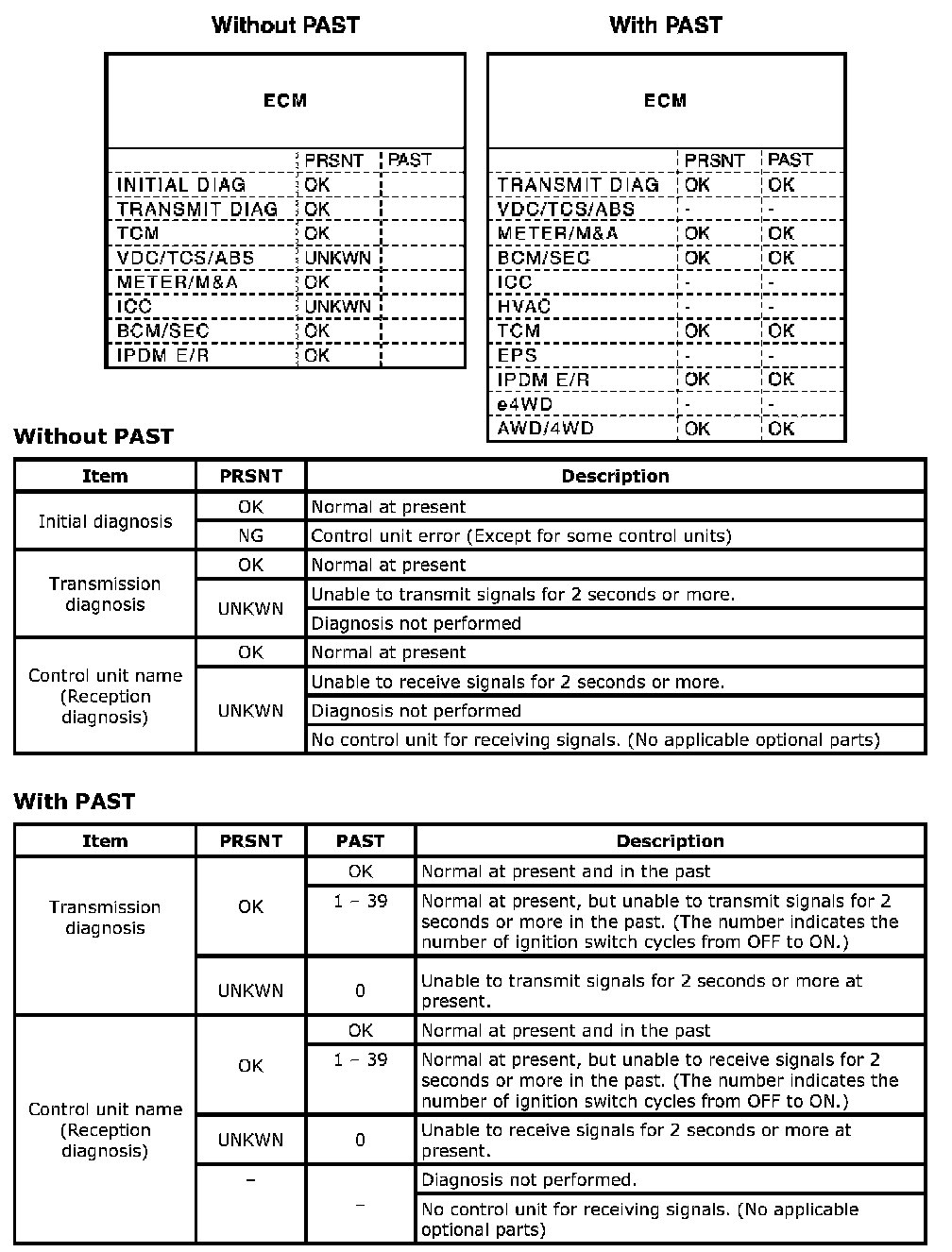

MONITOR ITEM (SDT)

Example: Bus check indication

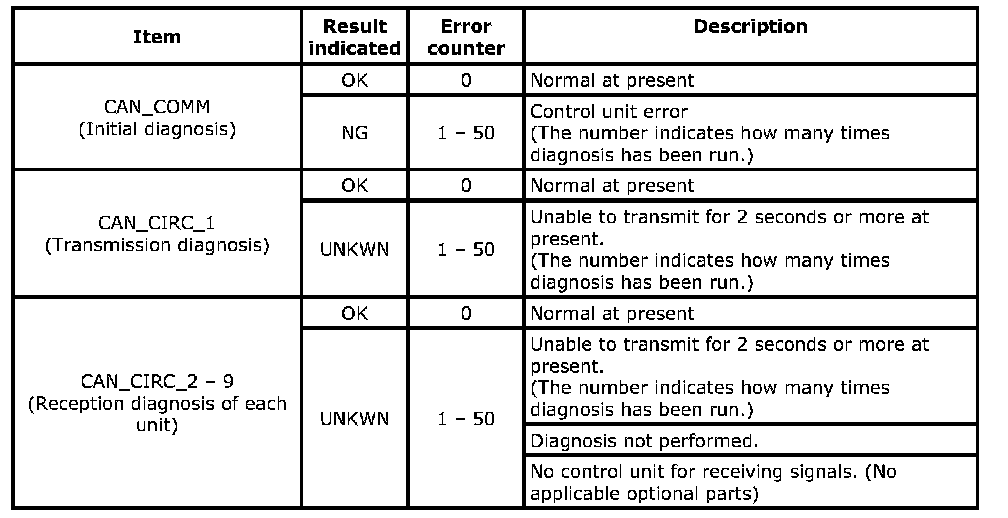

MONITOR ITEM (ON-BOARD DIAGNOSIS)

NOTE: For some models, CAN communication diagnosis result is received from the vehicle monitor. (SDT is not available.)

Example: Vehicle Display
