Combination Switch Output Circuit Check

Combination Switch Output Circuit Check

Diagnosis Procedure

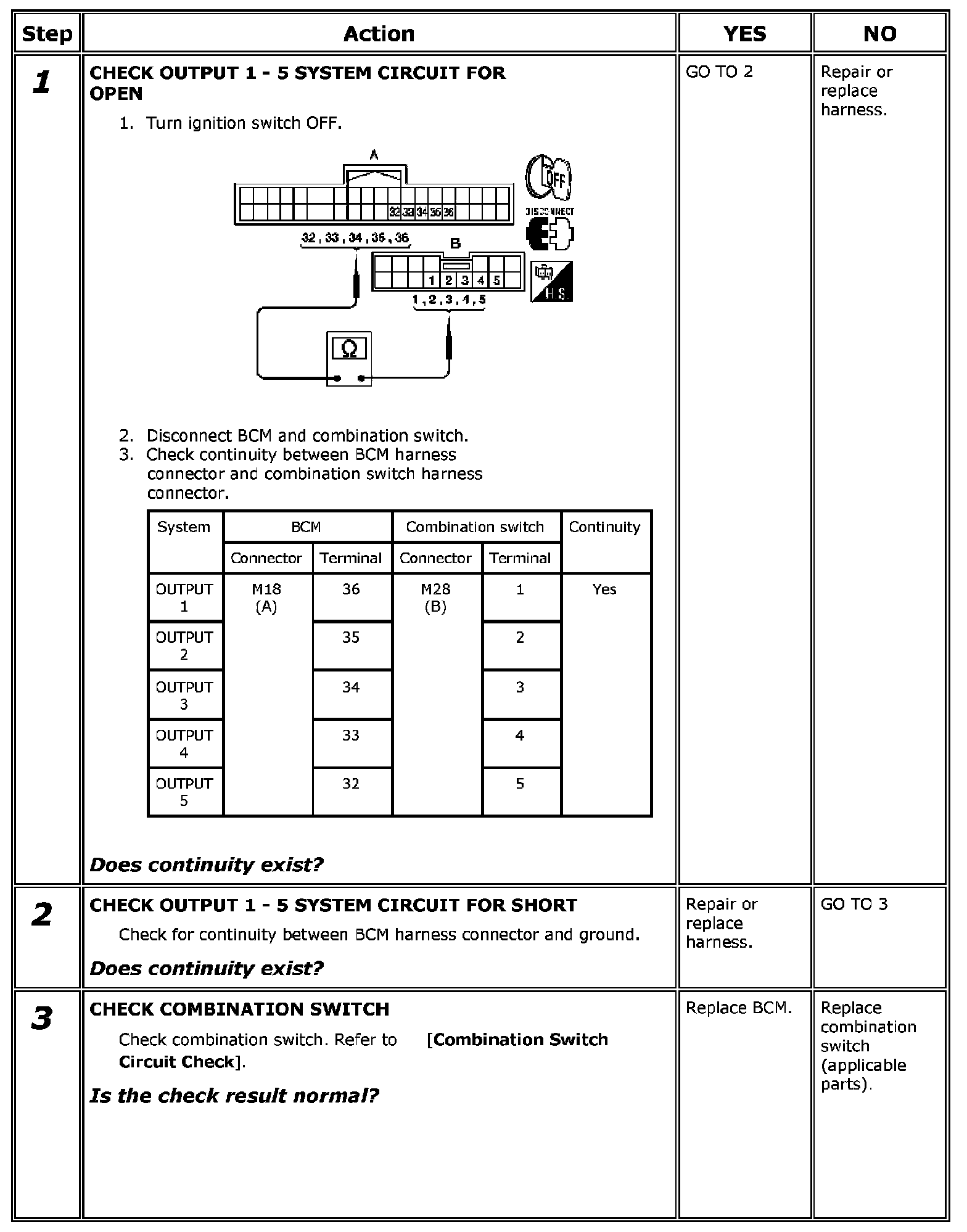

Step 1-3:






Special Repair Requirement

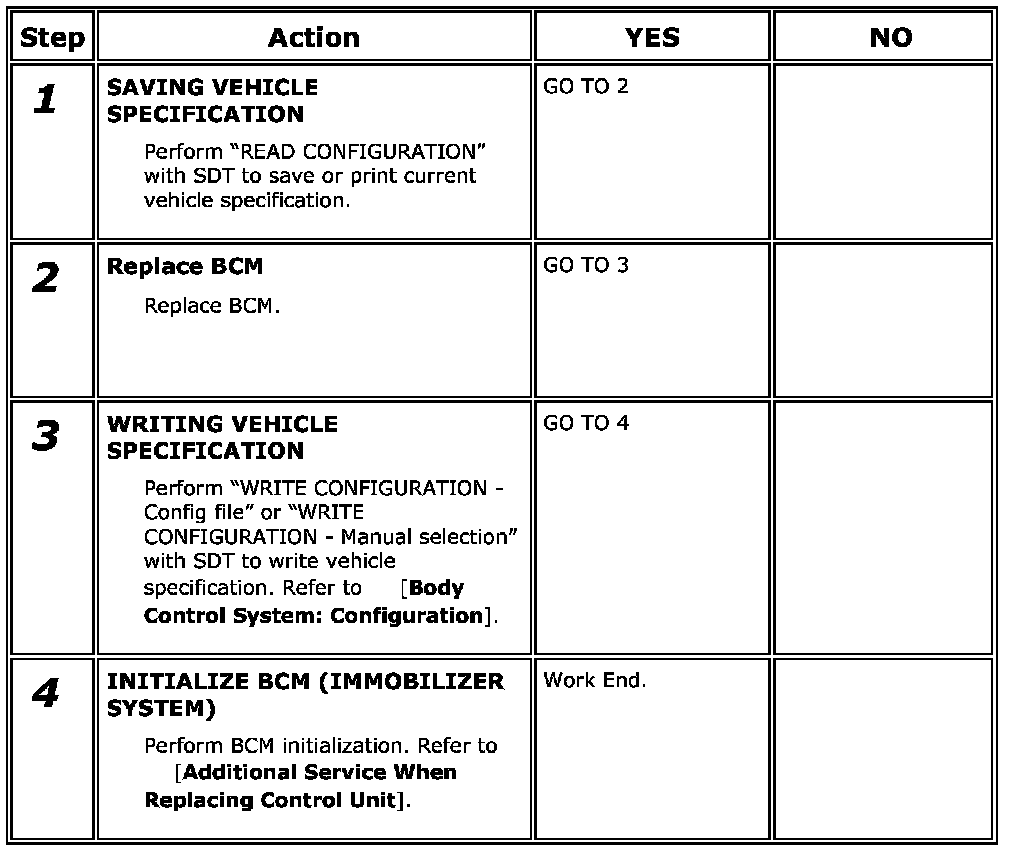

Step 1-4:
