Introduction

OBD System: Introduction

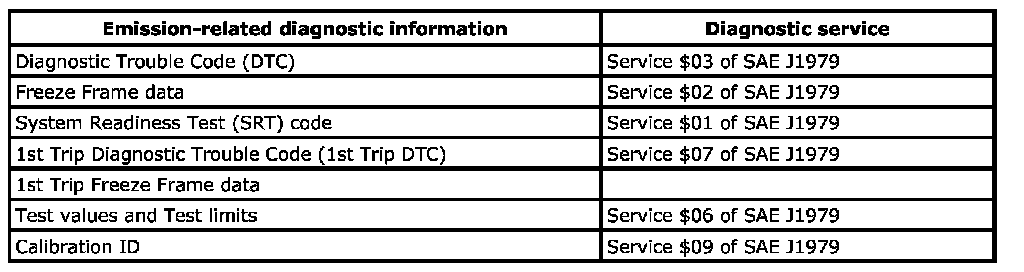

The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actuators. The ECM also records various emission-related diagnostic information including:

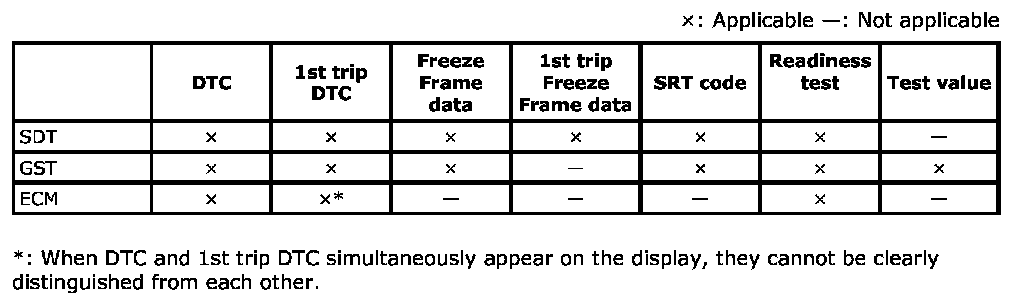

The above information can be checked using procedures listed in the table below.






The malfunction indicator lamp (MIL) on the instrument panel illuminate when the same malfunction is detected in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to [Fail-safe Chart: ECM].) Fail-Safe Chart
