Engine Control Component Parts/Control Systems Application

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION

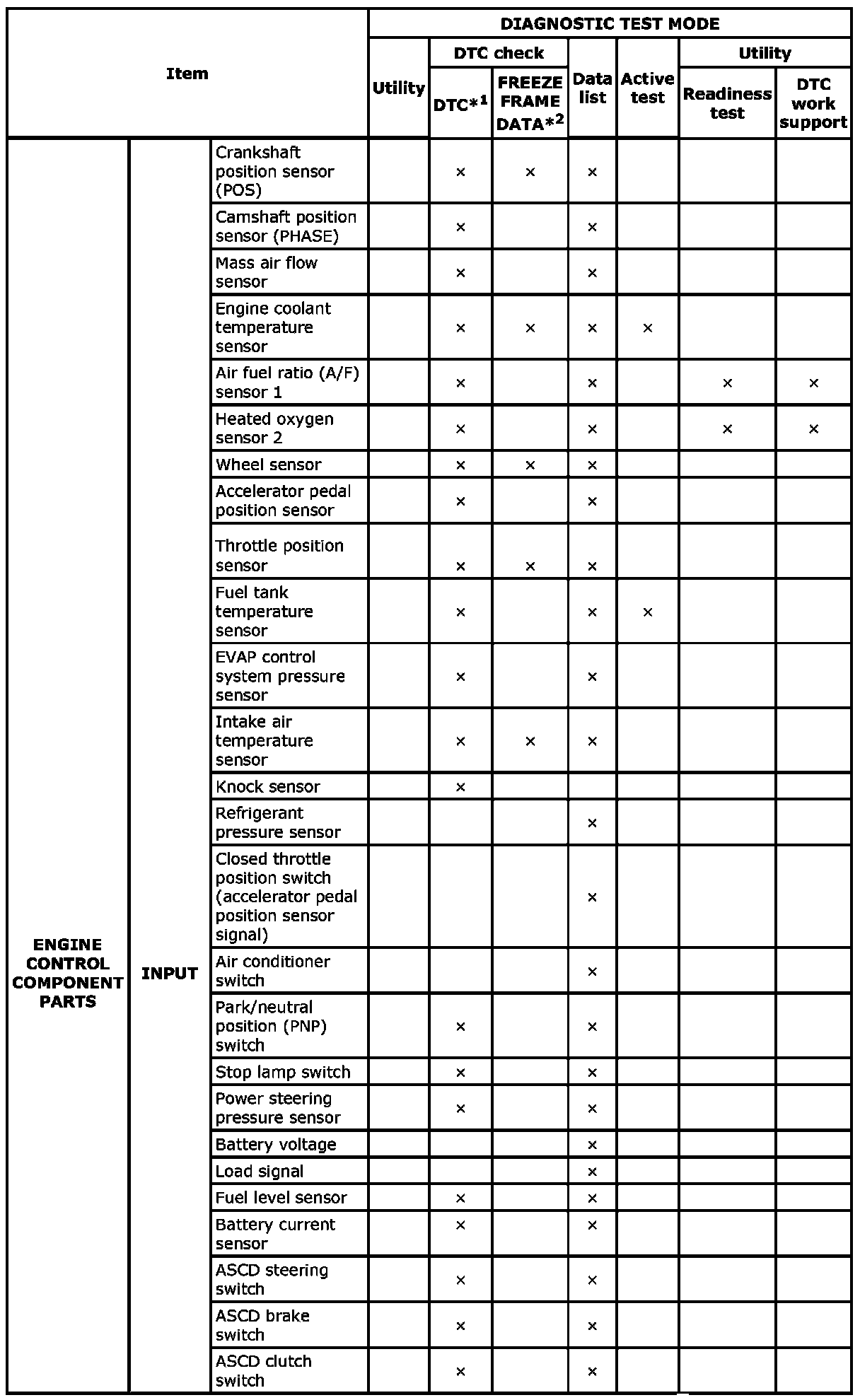

Engine Control Component Parts/Control Systems Application (Part 1):

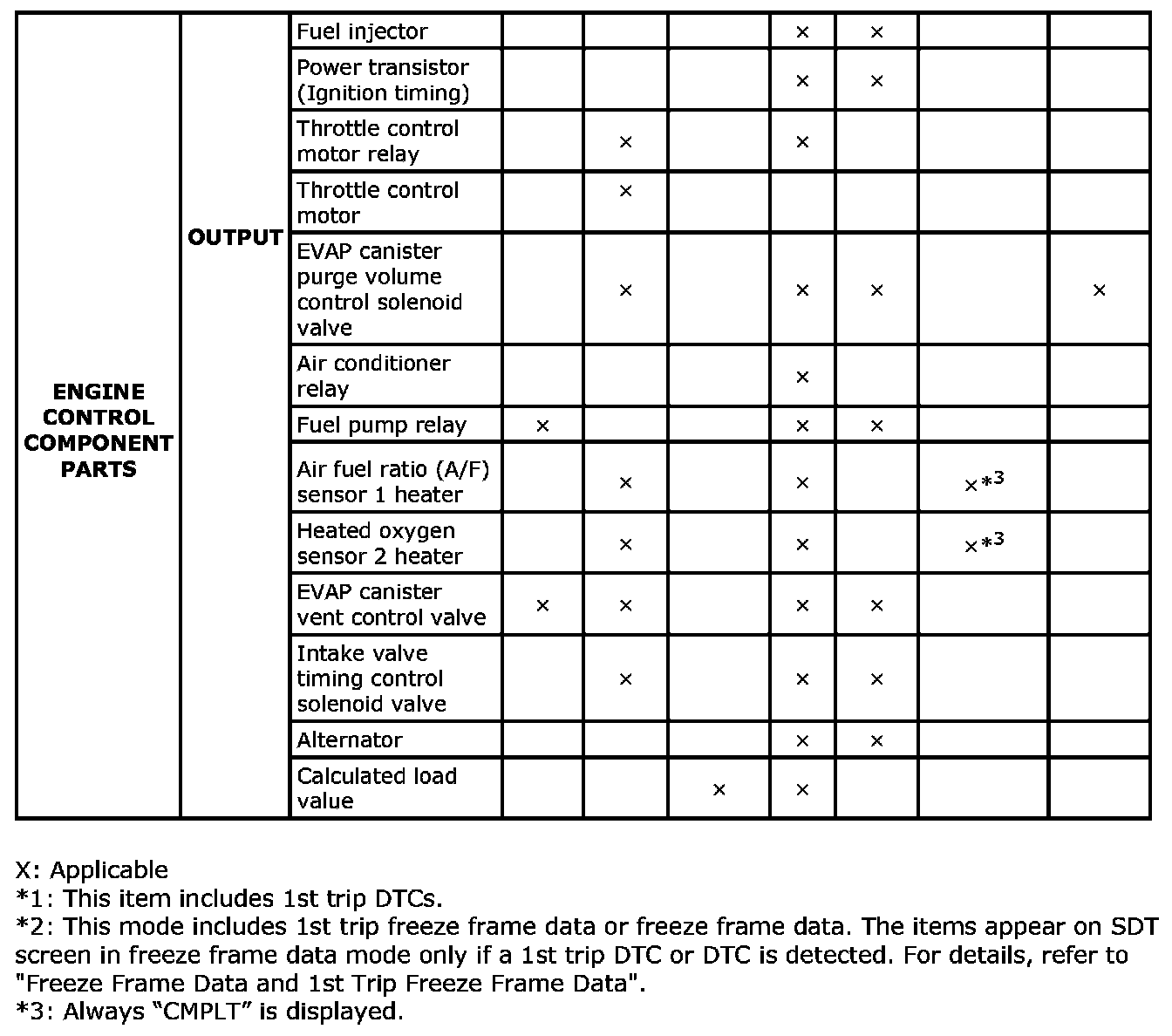

Engine Control Component Parts/Control Systems Application (Part 2):
