Generic Scan Tool (GST) Function
Generic Scan Tool (GST) FunctionDESCRIPTION

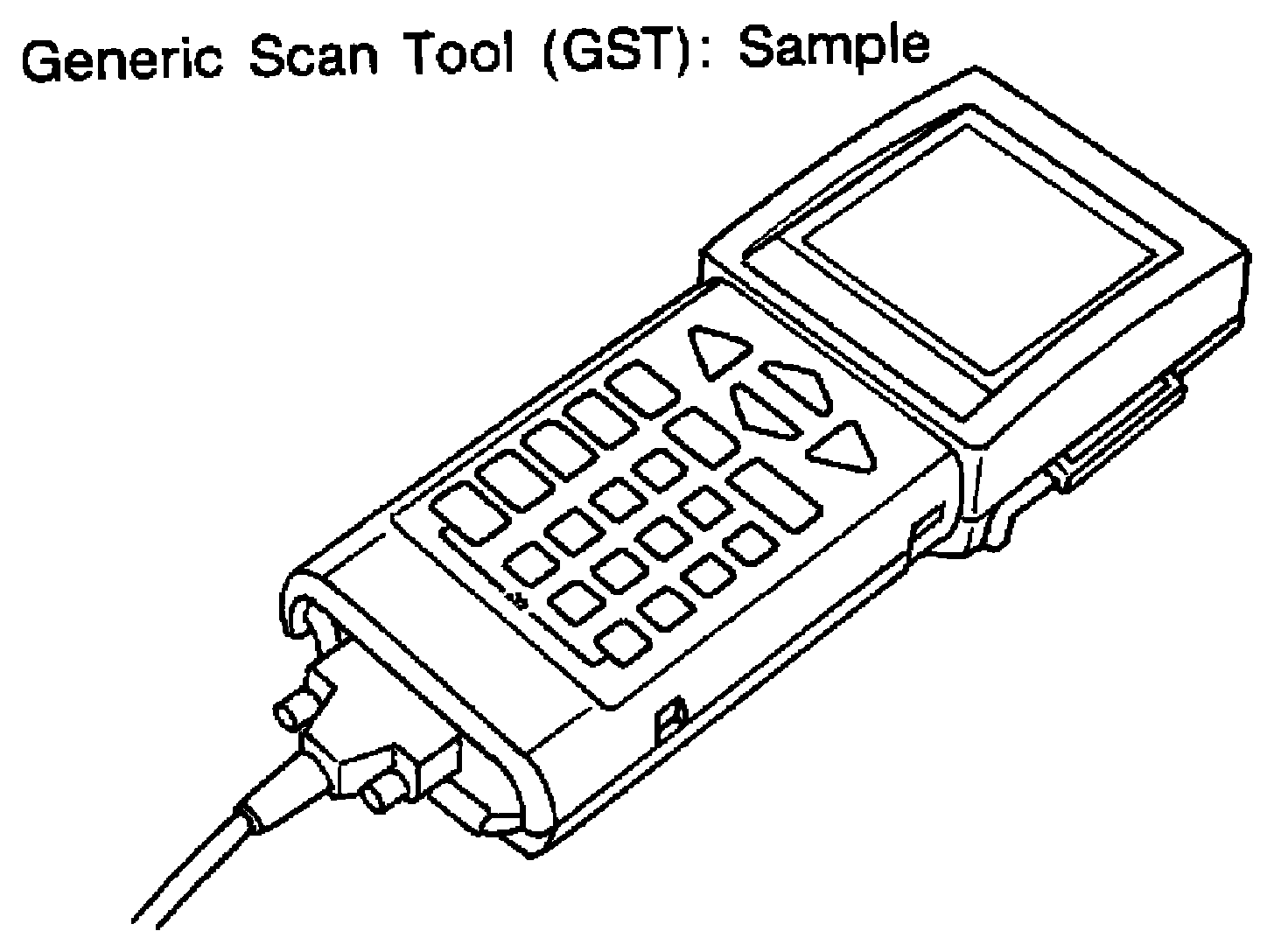

Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has several functions explained below.
ISO9141 is used as the protocol.
The name "GST" or "Generic Scan Tool" is used.

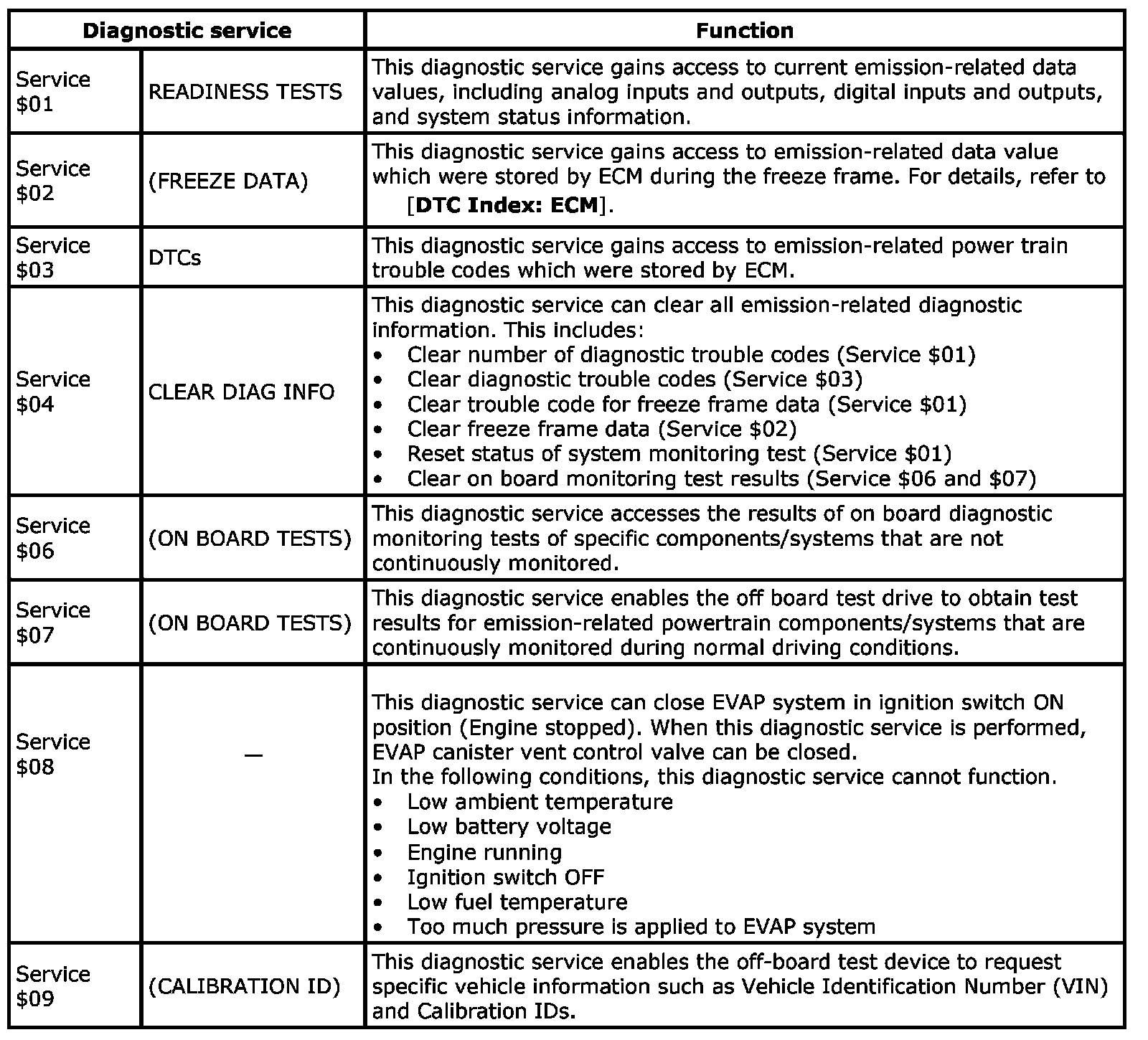

FUNCTION
INSPECTION PROCEDURE
1. Turn ignition switch OFF.

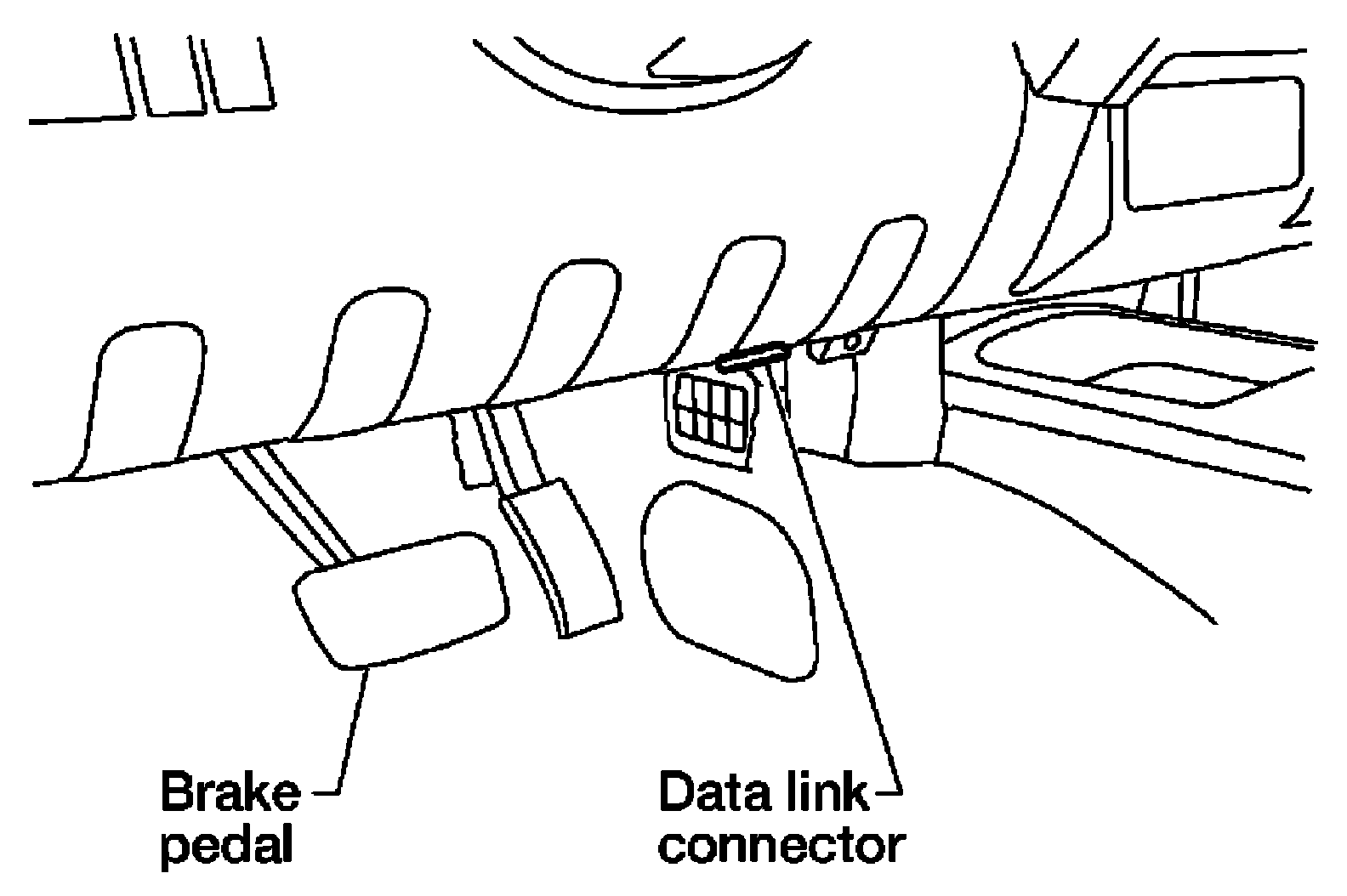

2. Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.
3. Turn ignition switch ON.

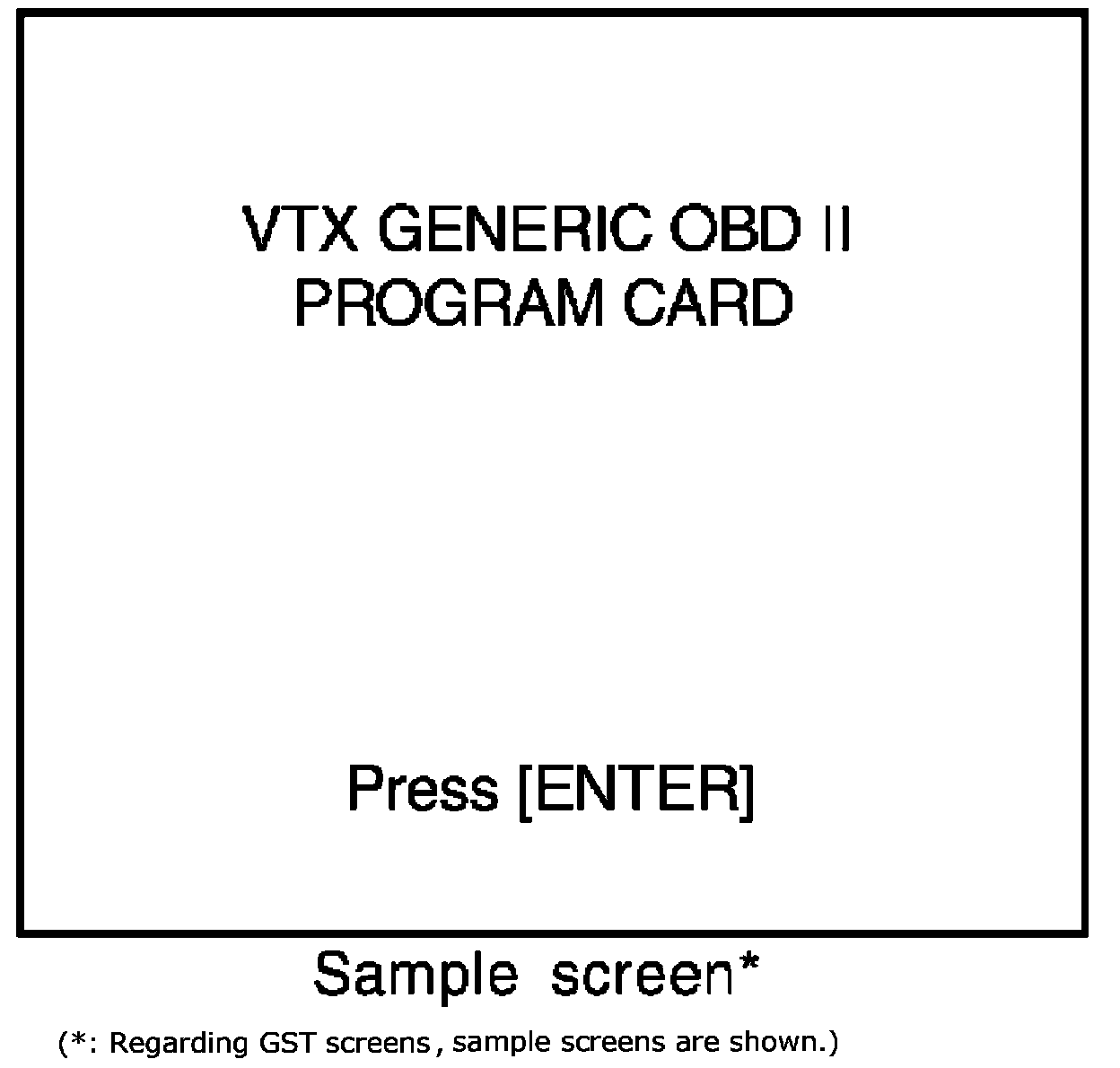

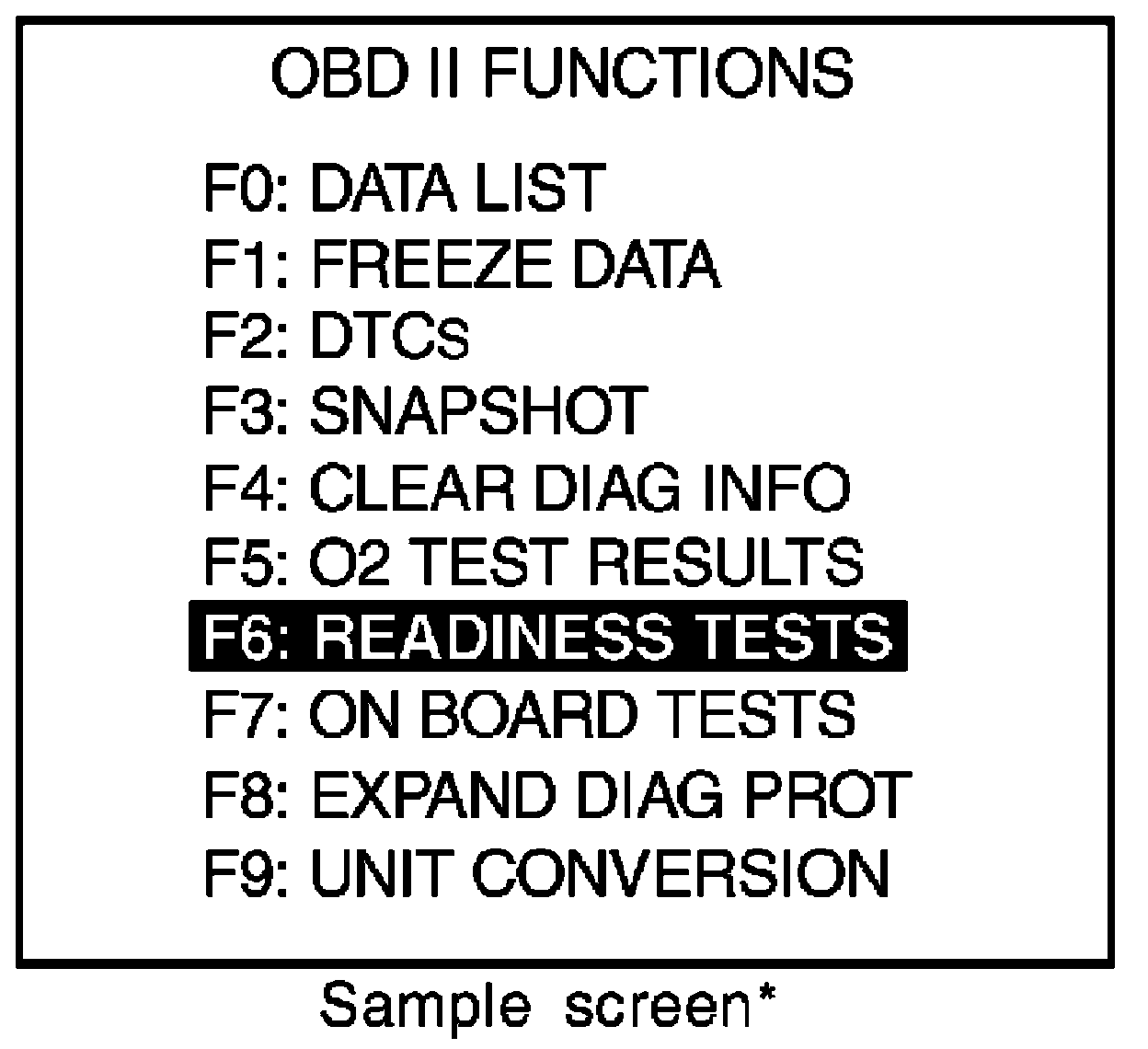

4. Enter the program according to instruction on the screen or in the operation manual.
5. Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.
