System Specifications

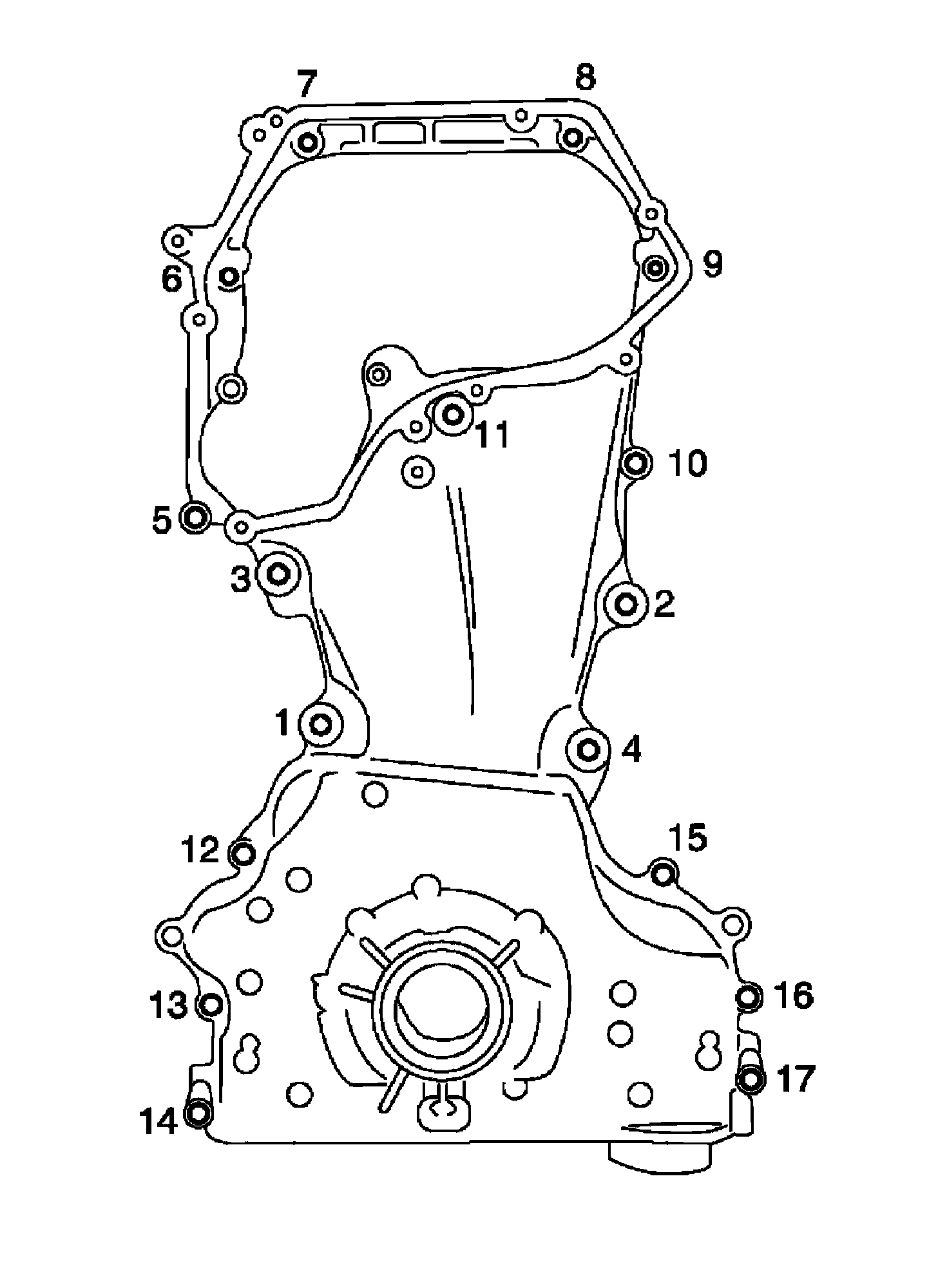

Front Cover bolts





Tighten bolts to the specified torque.
5 through 17: 12.8 Nm (1.3 kg-m, 9 ft-lb)
1 through 4: 49.0 Nm (5.0 kg-m, 36 ft-lb)

After all bolts are tightened, retighten them to the specified torque in numerical order as shown.

Timing Chain Tensioner 7.0 Nm 0.71 kg-m, 62 in-lb)

Crankshaft pulley bolt 42.1 Nm (4.3 kg-m, 31 ft-lb)
