Steering Column

Service Data and Specifications

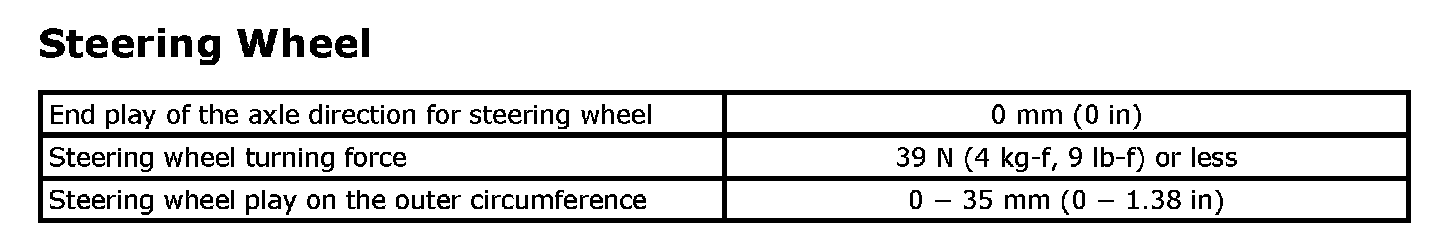

Steering Wheel

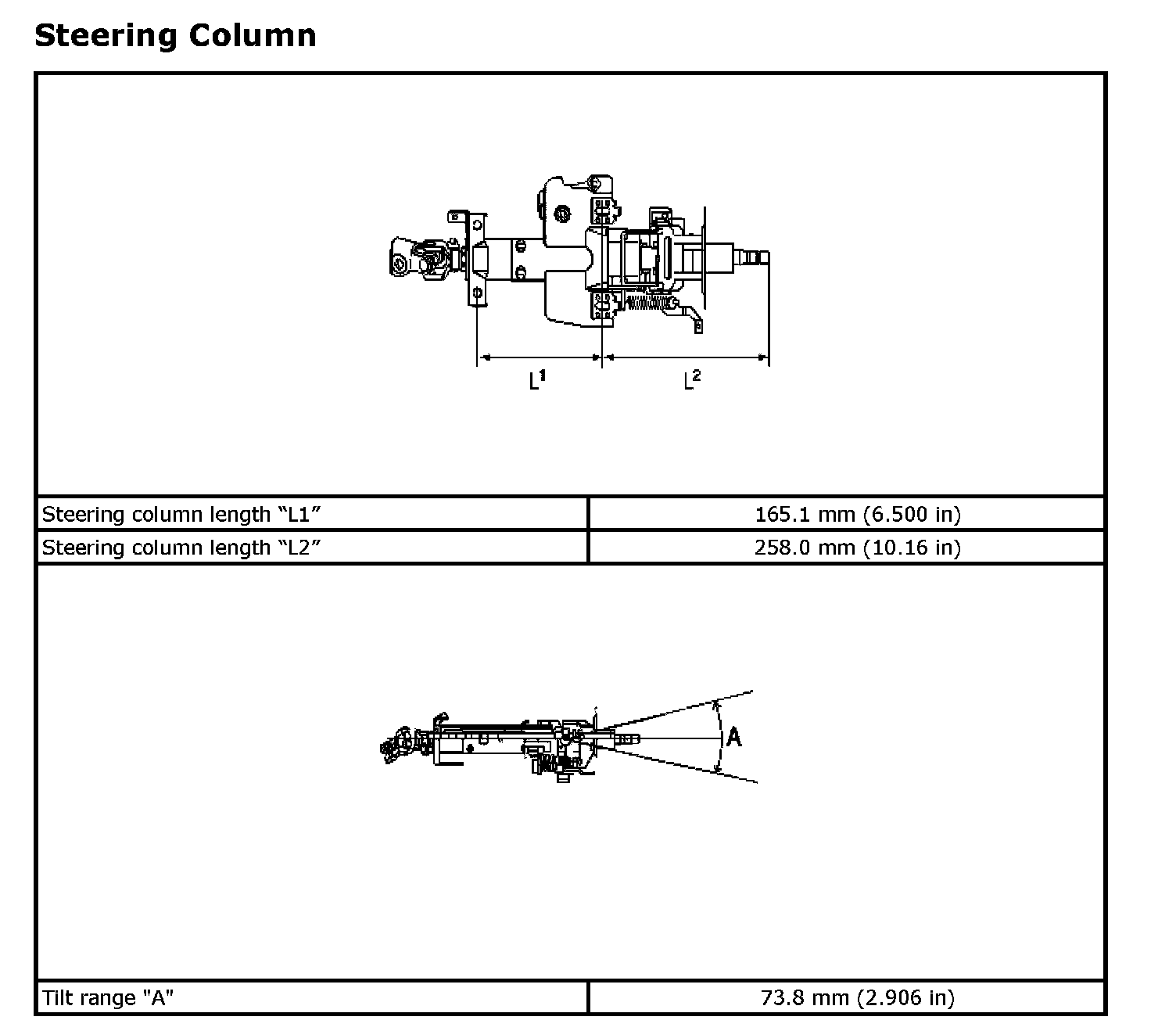

Steering Column

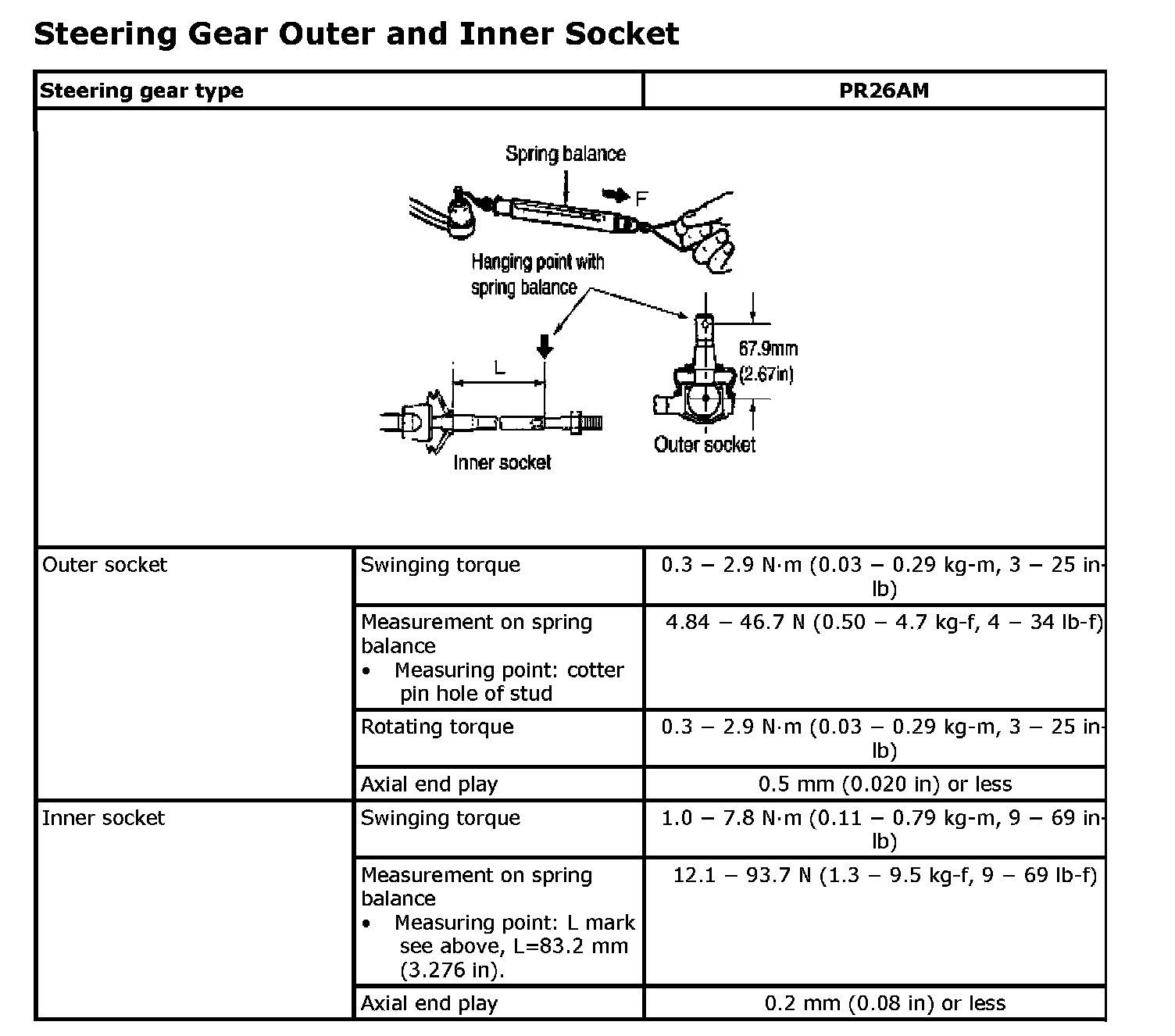

Steering Gear Outer and Inner Socket

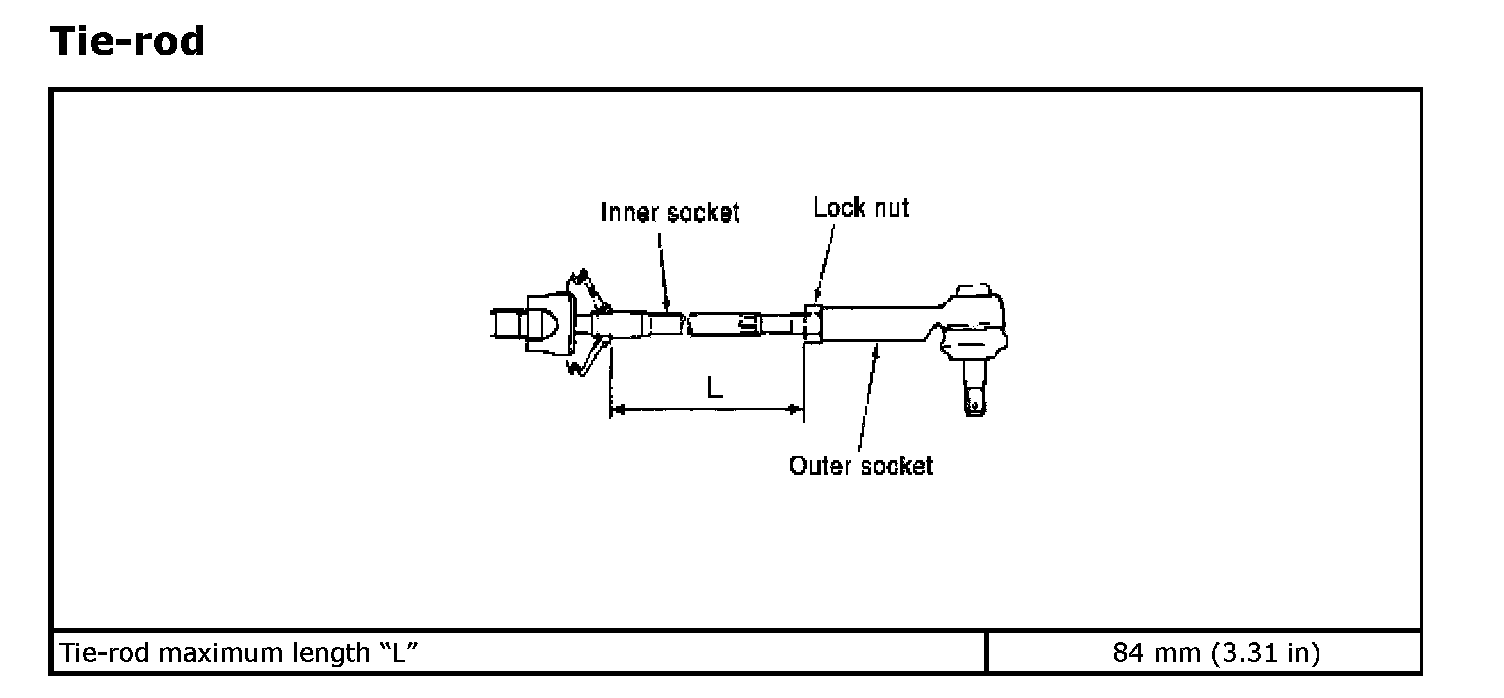

Tie-rod
