Power Distribution Module: Service and Repair

IPDM E/R (Intelligent Power Distribution Module Engine Room): Removal And Installation

REMOVAL
1. Disconnect negative battery terminal.

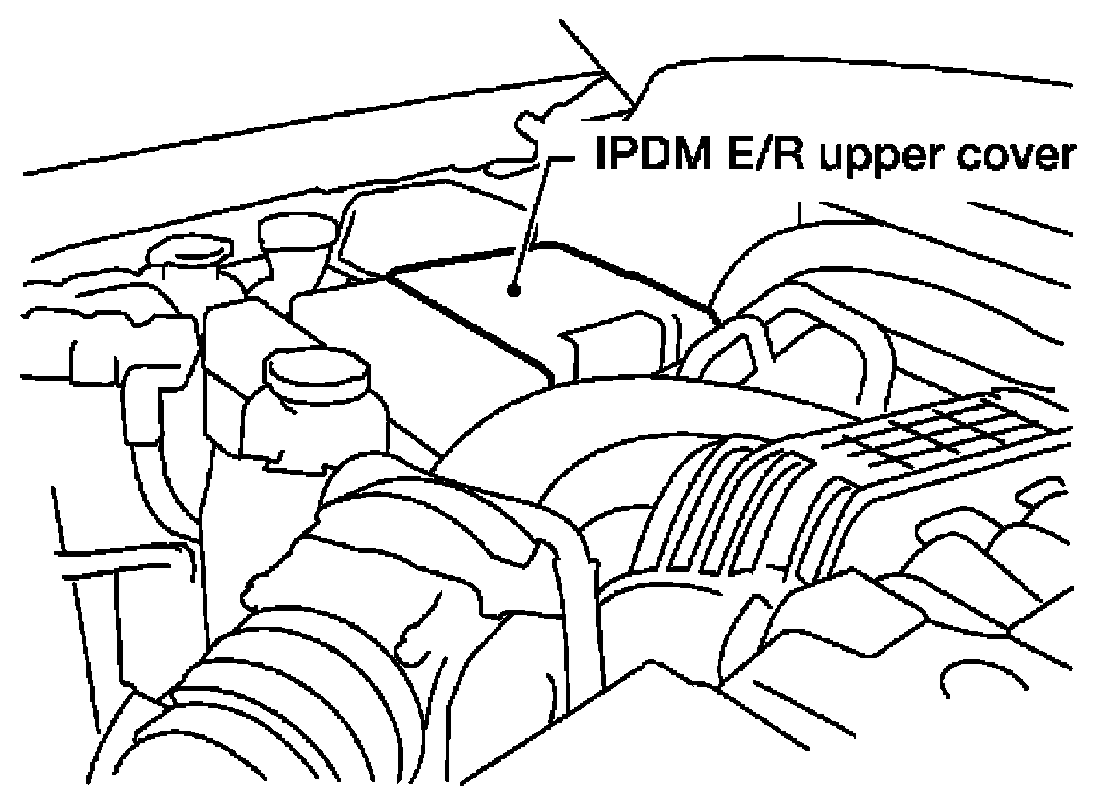

2. Remove IPDM E/R upper cover.

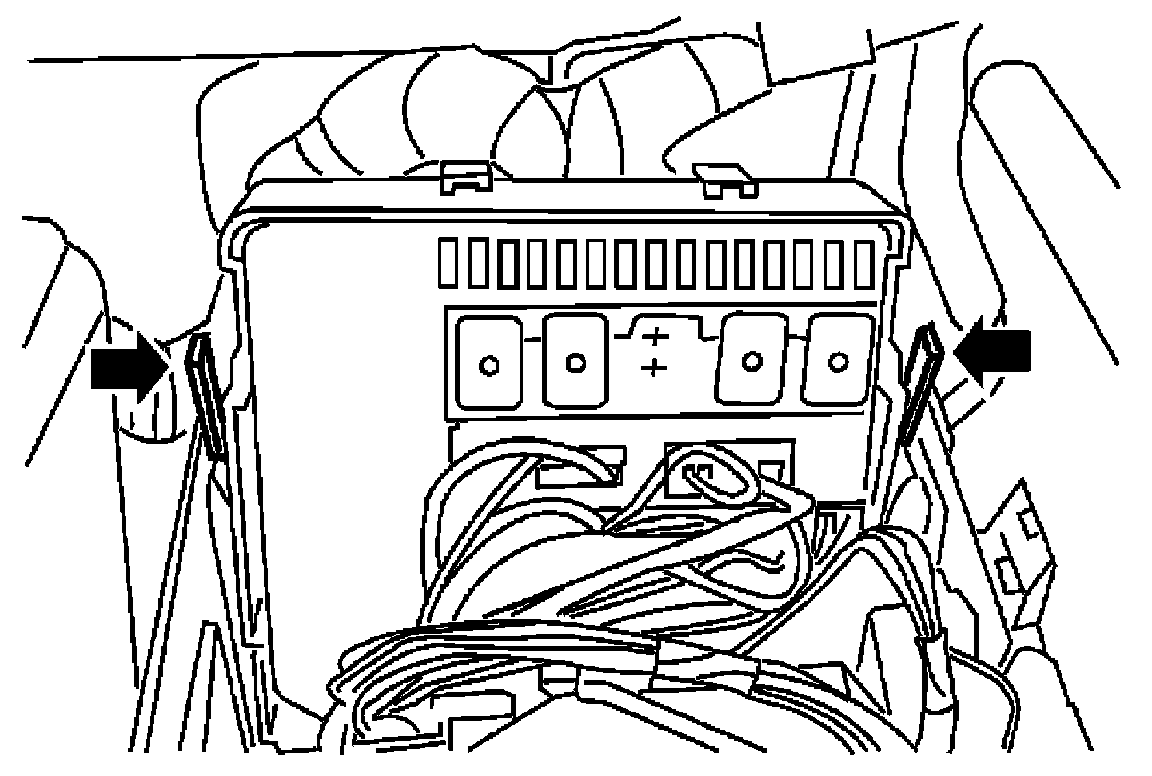

3. Release 2 clips and pull IPDM E/R up from case.






4. Disconnect IPDM E/R connectors and remove the IPDM E/R.

INSTALLATION
Installation is in the reverse order of removal.
