Work Flow

Service Information for Electrical Incident: Work Flow

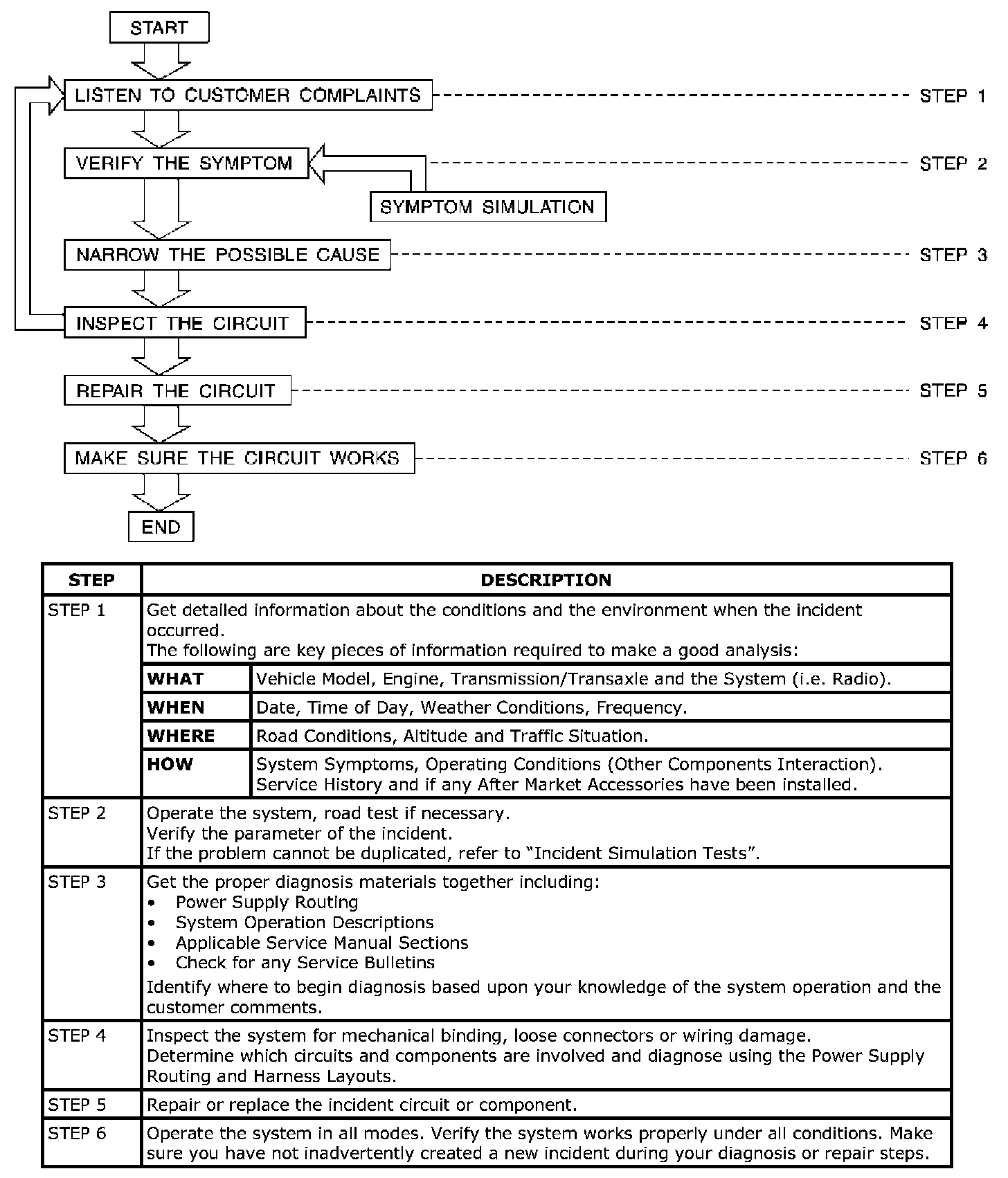

WORK FLOW





Service Information For Electrical Incident: Intermittent Incident
Intermittent and Poor Connection Inspection
