Combination Switch Circuit Check

Combination Switch Circuit Check

Description

Combination Switch Matrix
Combination switch consists of INPUT circuit and OUTPUT circuit.

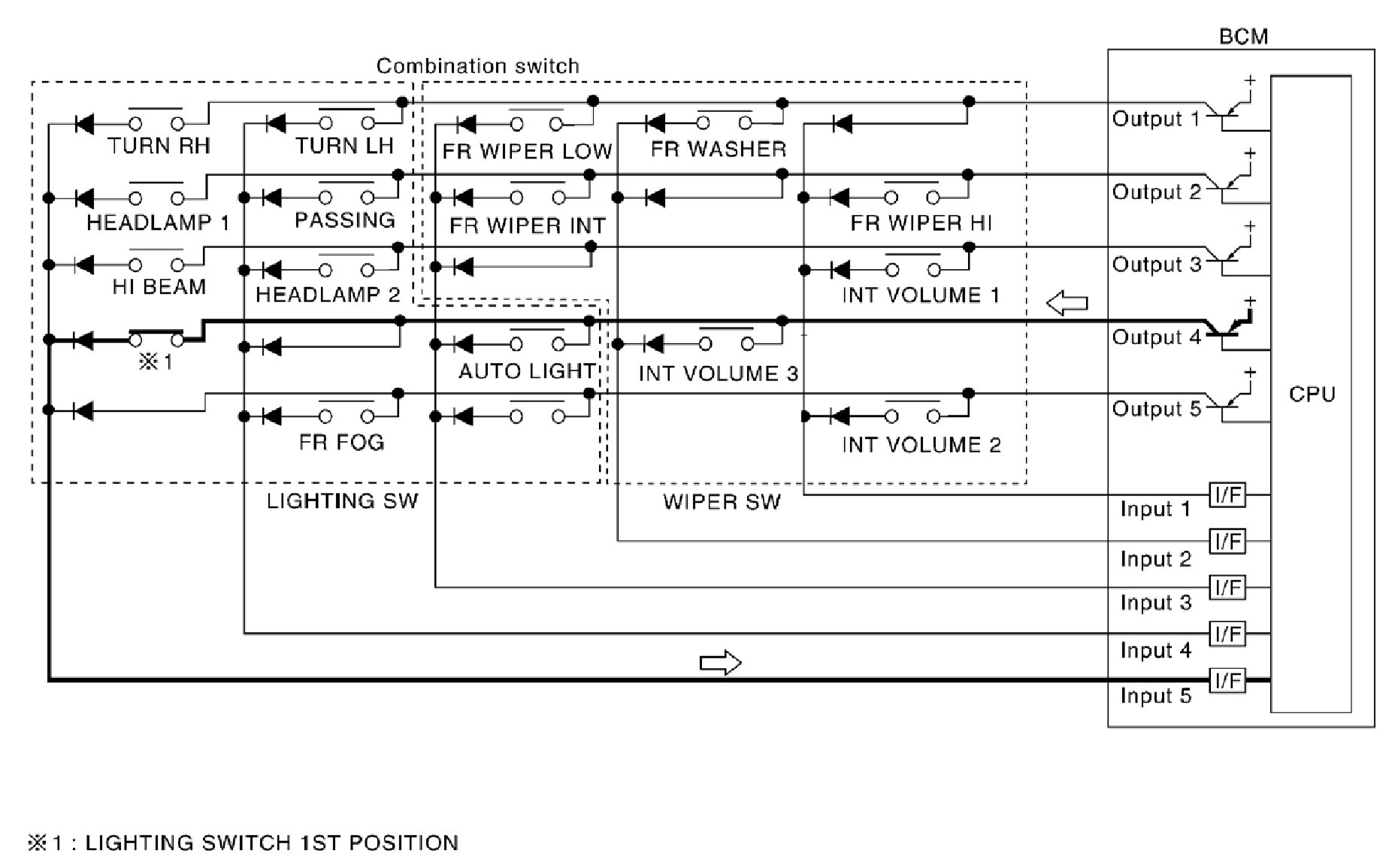

Combination switch circuit






Combination switch INPUT-OUTPUT system list






NOTE: Headlamp has a dual system switch.

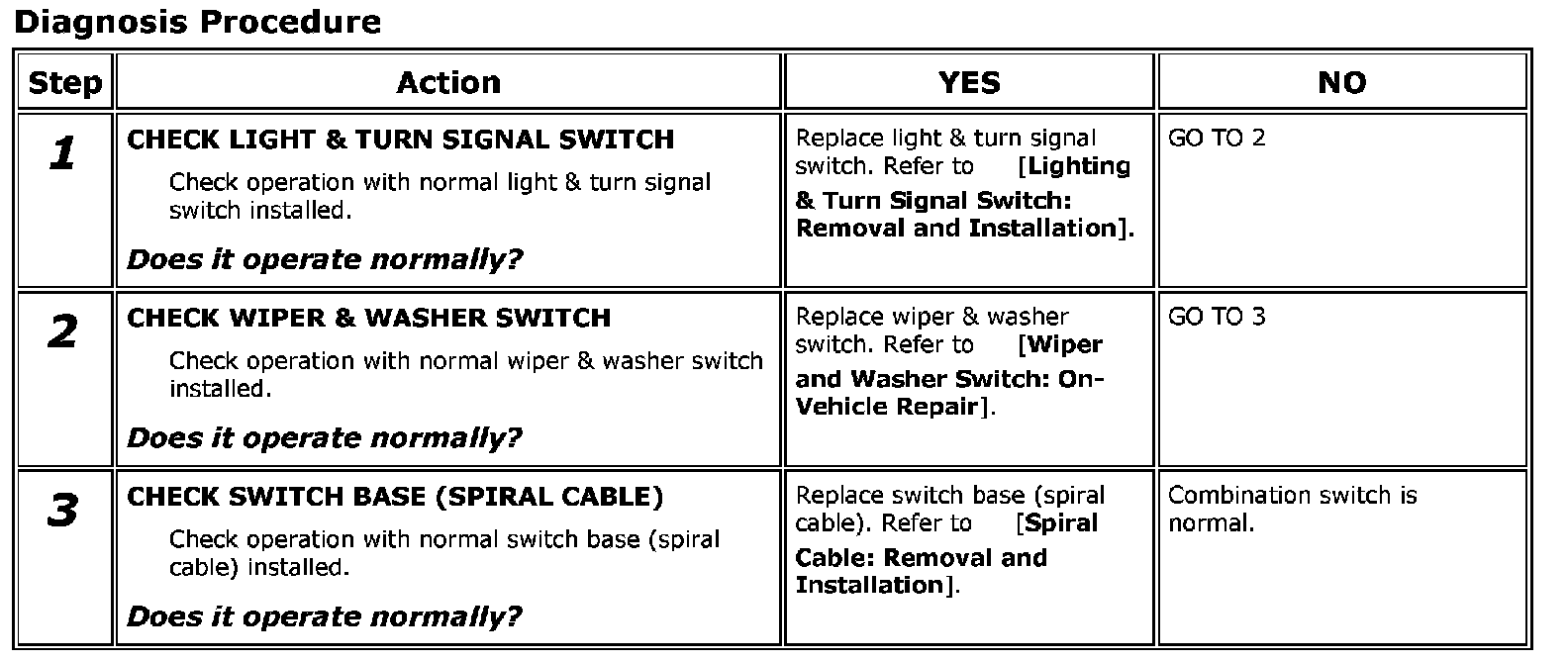

Diagnosis Procedure

Step 1-3:
