SDT Function: Air Pressure Monitor

SDT Function: Air Pressure Monitor

Utility

ID Read
The registered ID number is displayed.

ID Regist
Refer to [ID Registration Procedure]. ID Registration Procedure

DTC Check

Operation Procedure
Refer to [DTC Check (with SDT)]. Reading and Clearing Diagnostic Trouble Codes

Data List
Screen of data list mode is displayed.

NOTE: When malfunction is detected, SDT performs REAL-TIME DIAGNOSIS.
Also, any malfunction detected while in this mode will be displayed at real time.

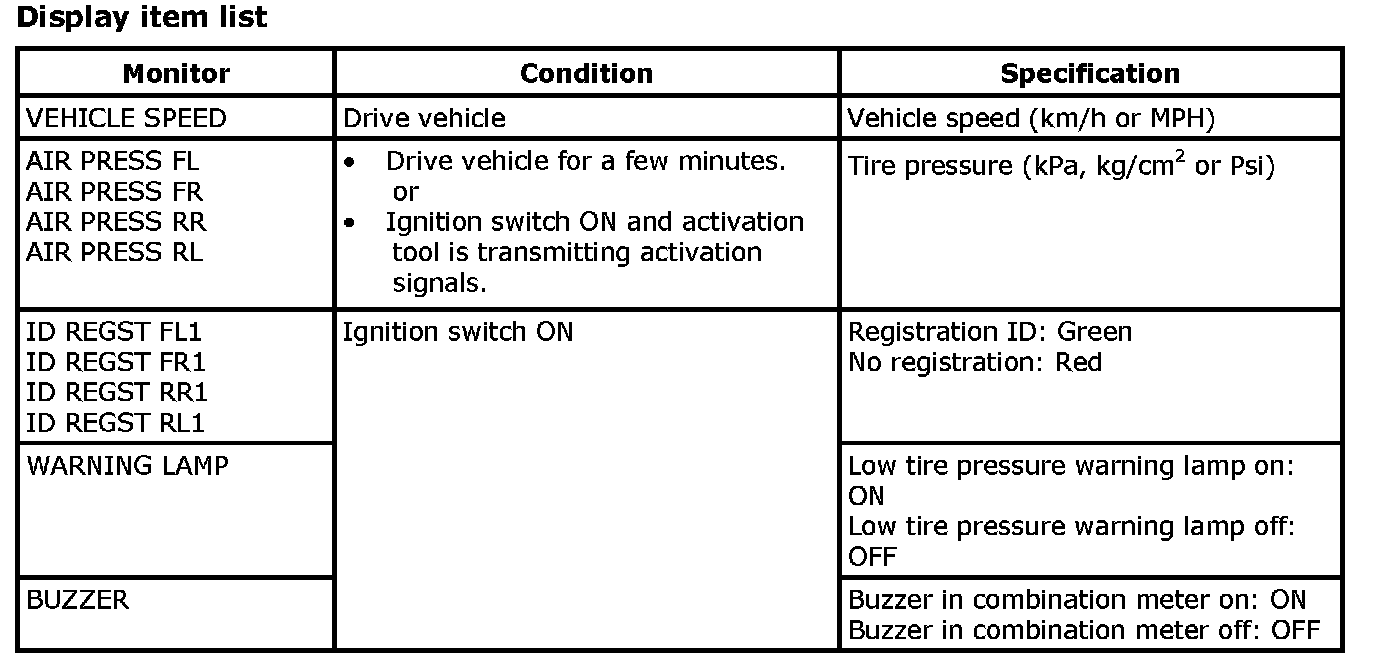

Display item list






Active Test

NOTE: Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction may be different from that displayed on SDT.

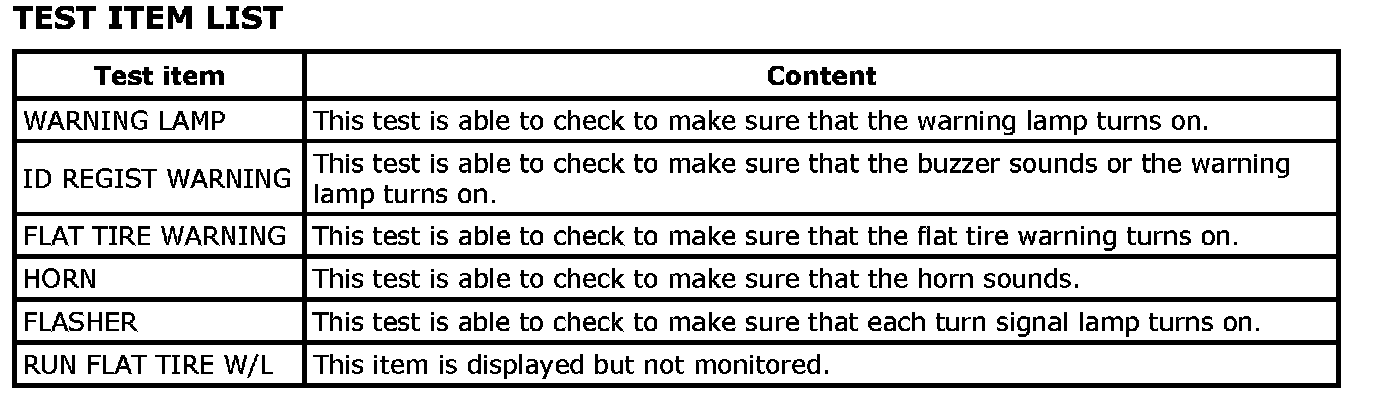

TEST ITEM LIST
