Battery Current Sensor: Description and Operation

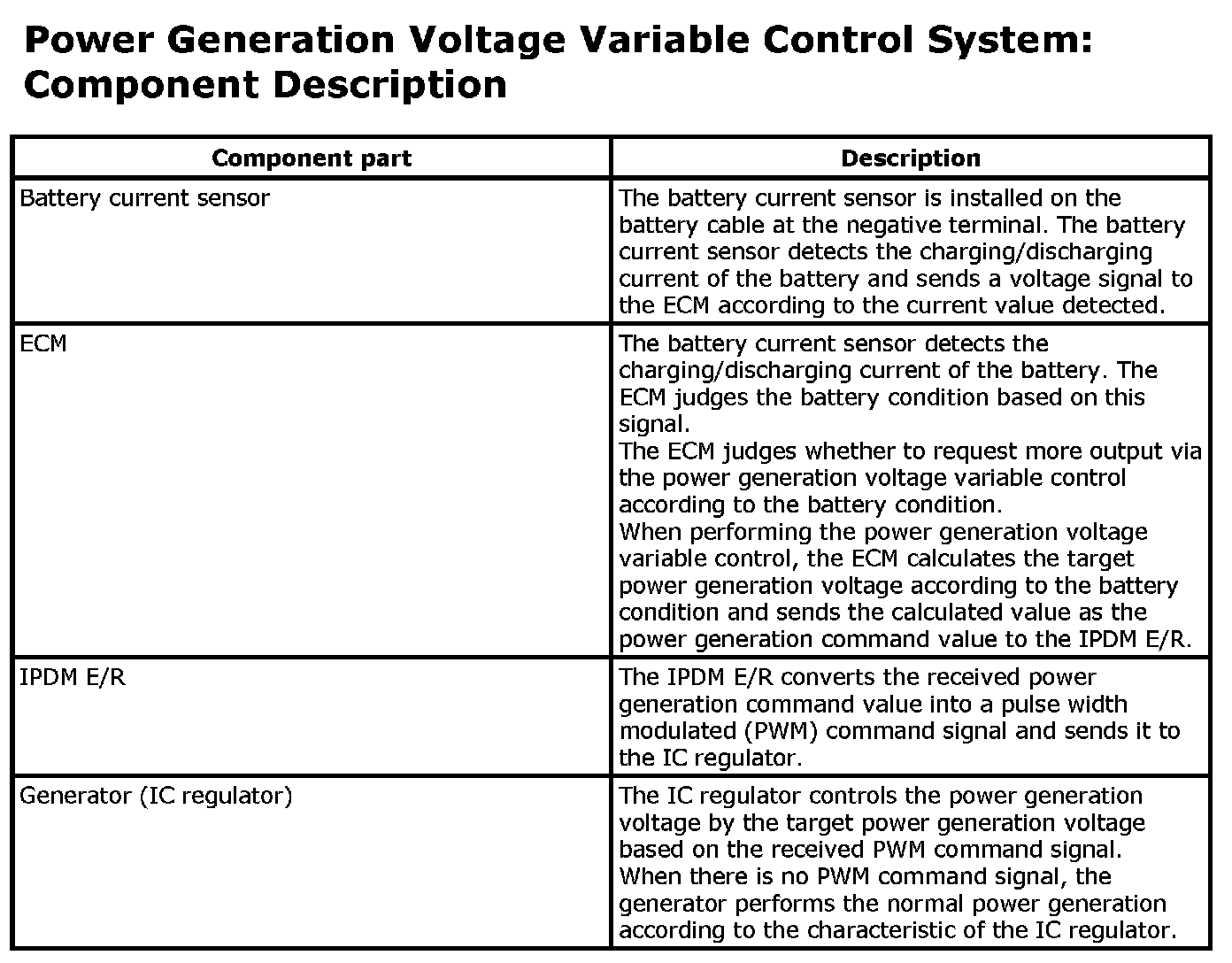

Power Generation Voltage Variable Control System: Component Description
