LAN System: Bus Check

LAN System: Bus Check

SDT and bus check (on-board diagnosis function) are used for detecting root cause.

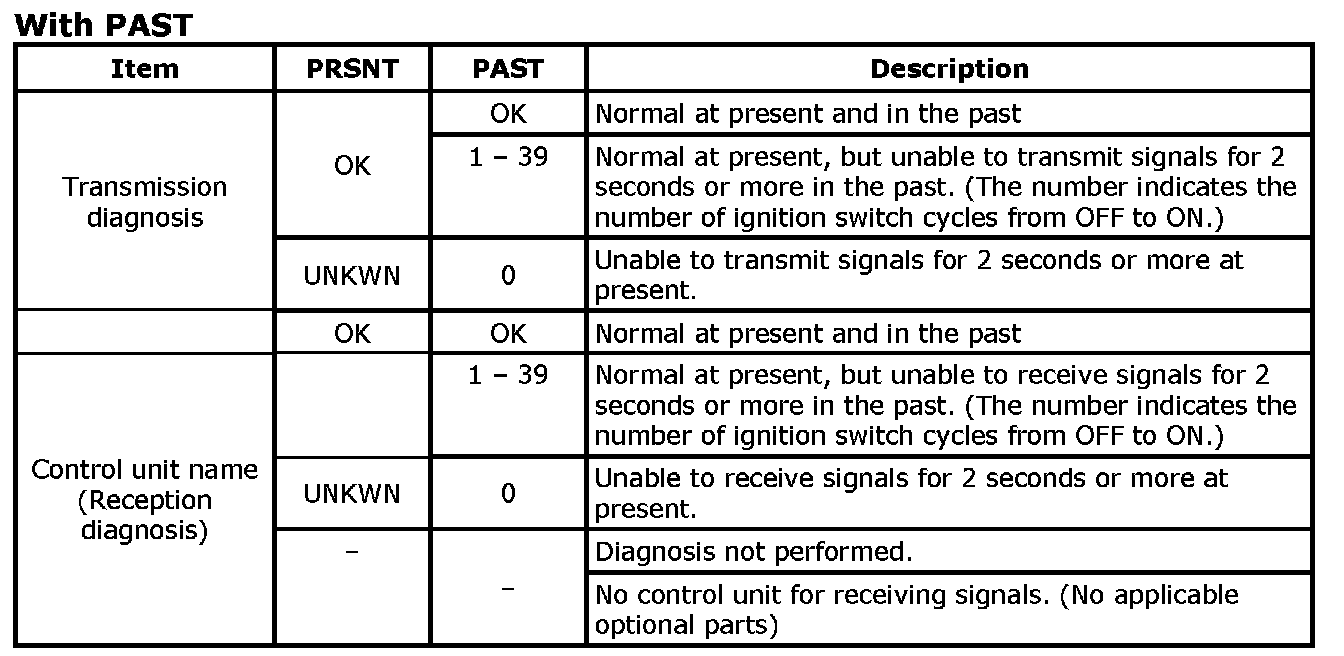

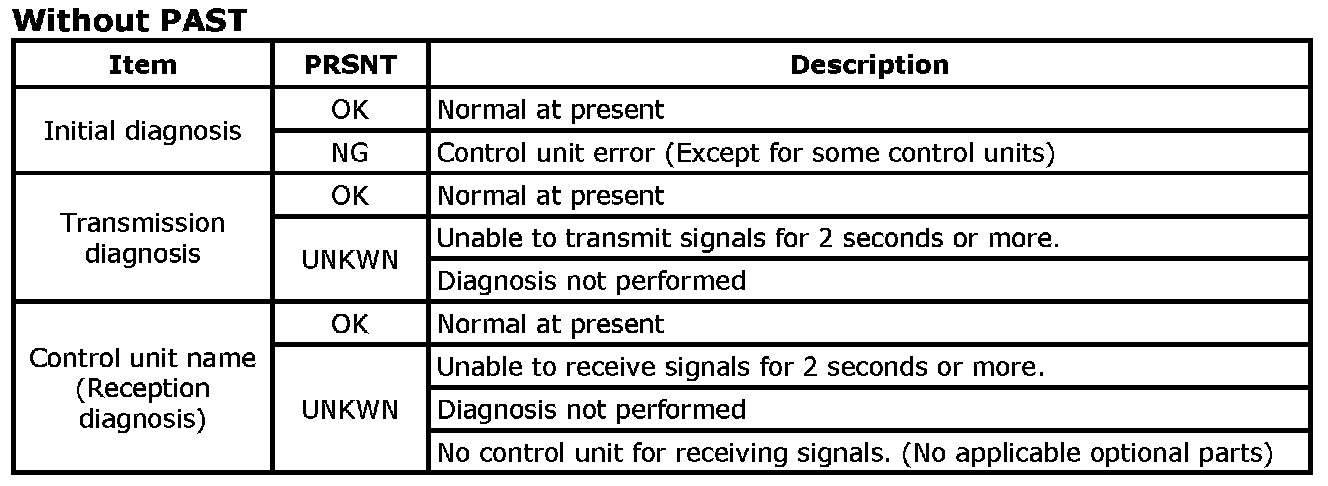

Monitor Item (SDT)

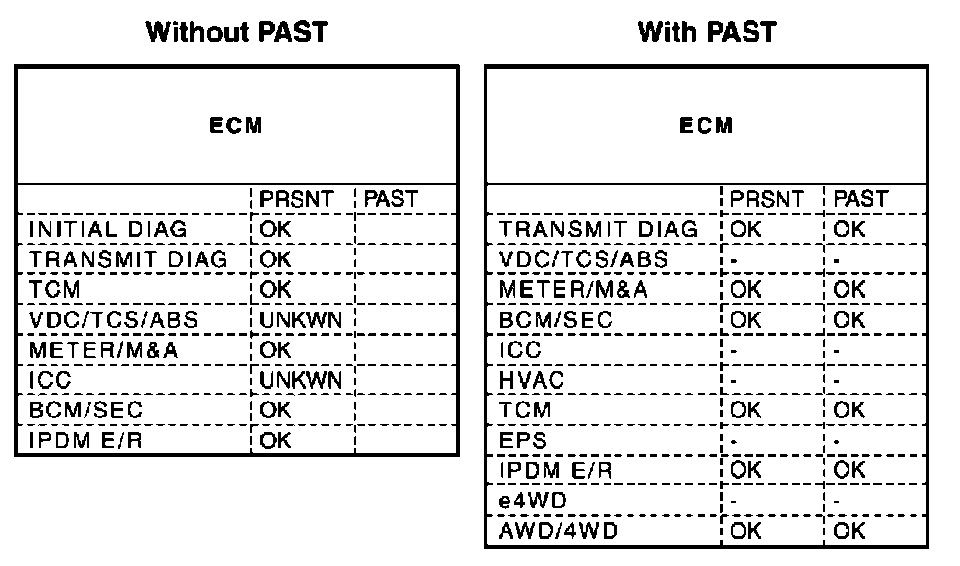

Example: Bus check indication

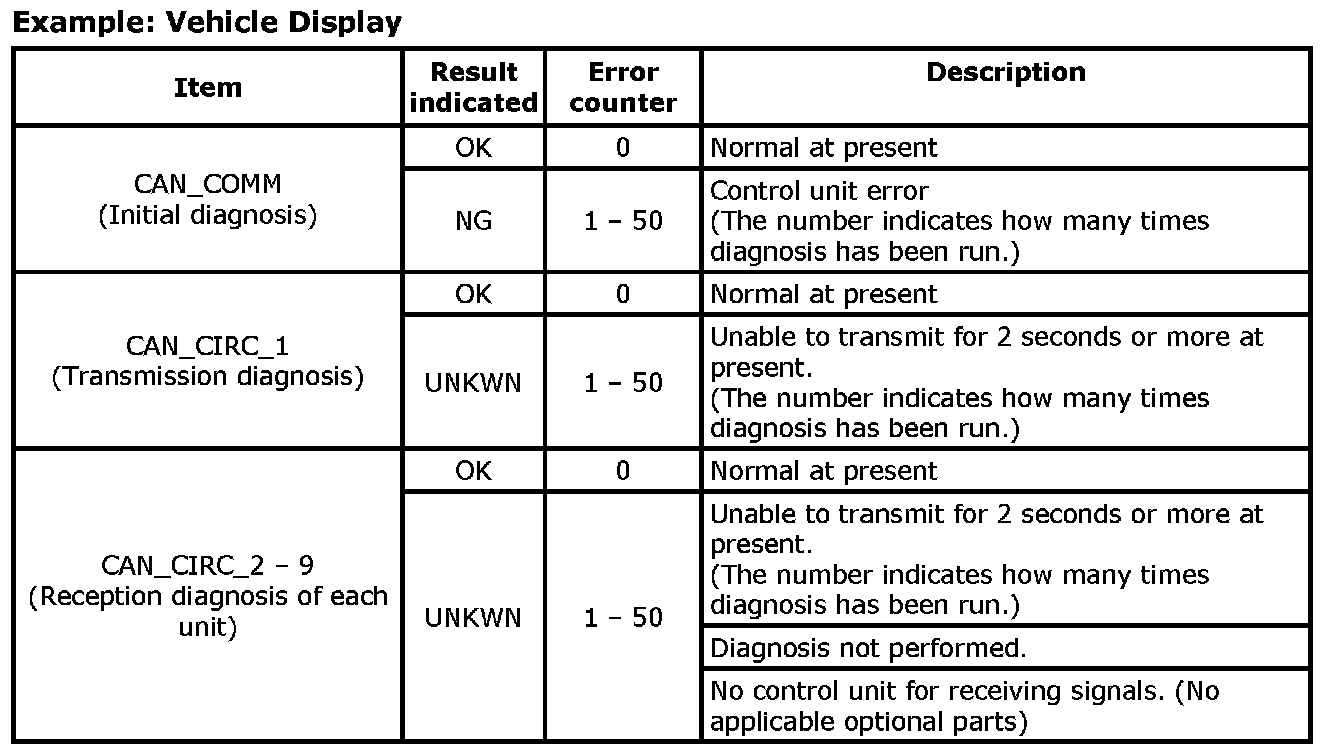

Monitor Item (On-Board Diagnosis)

NOTE: For some models, CAN communication diagnosis result is received from the vehicle monitor. (SDT is not available.)
