Basic Inspection

Basic Inspection

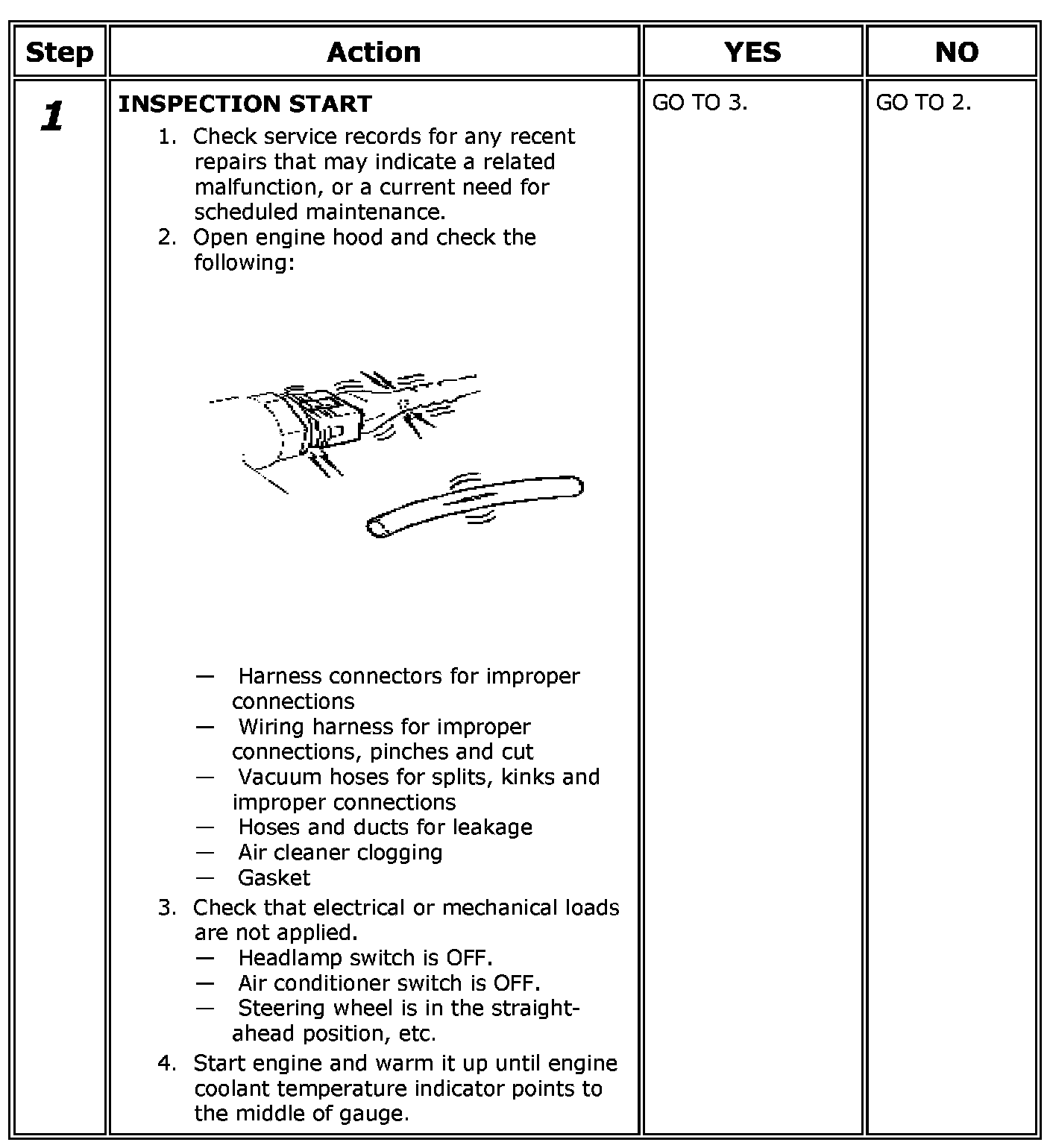

Step 1:

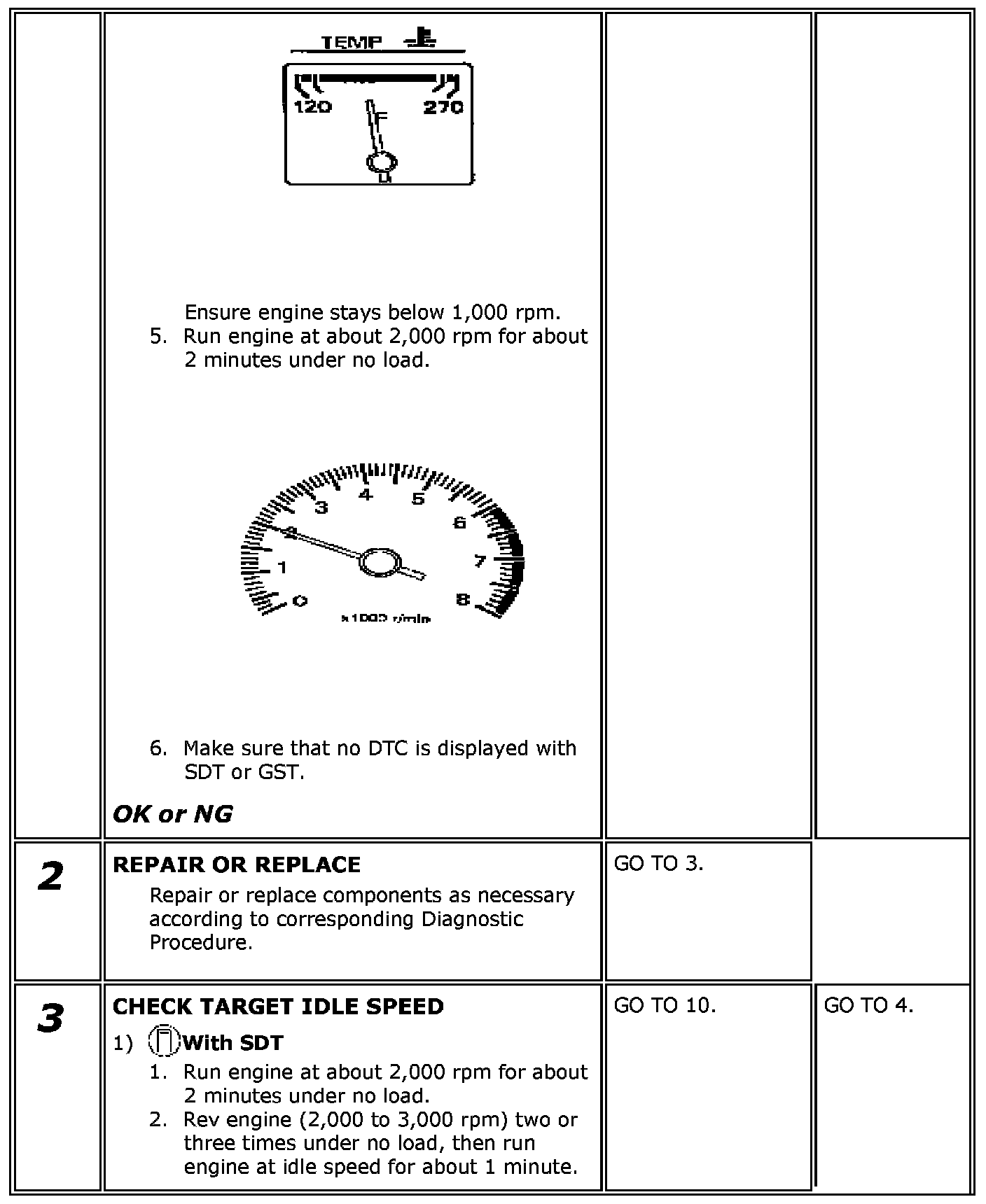

Step 1 (Continued)-3:

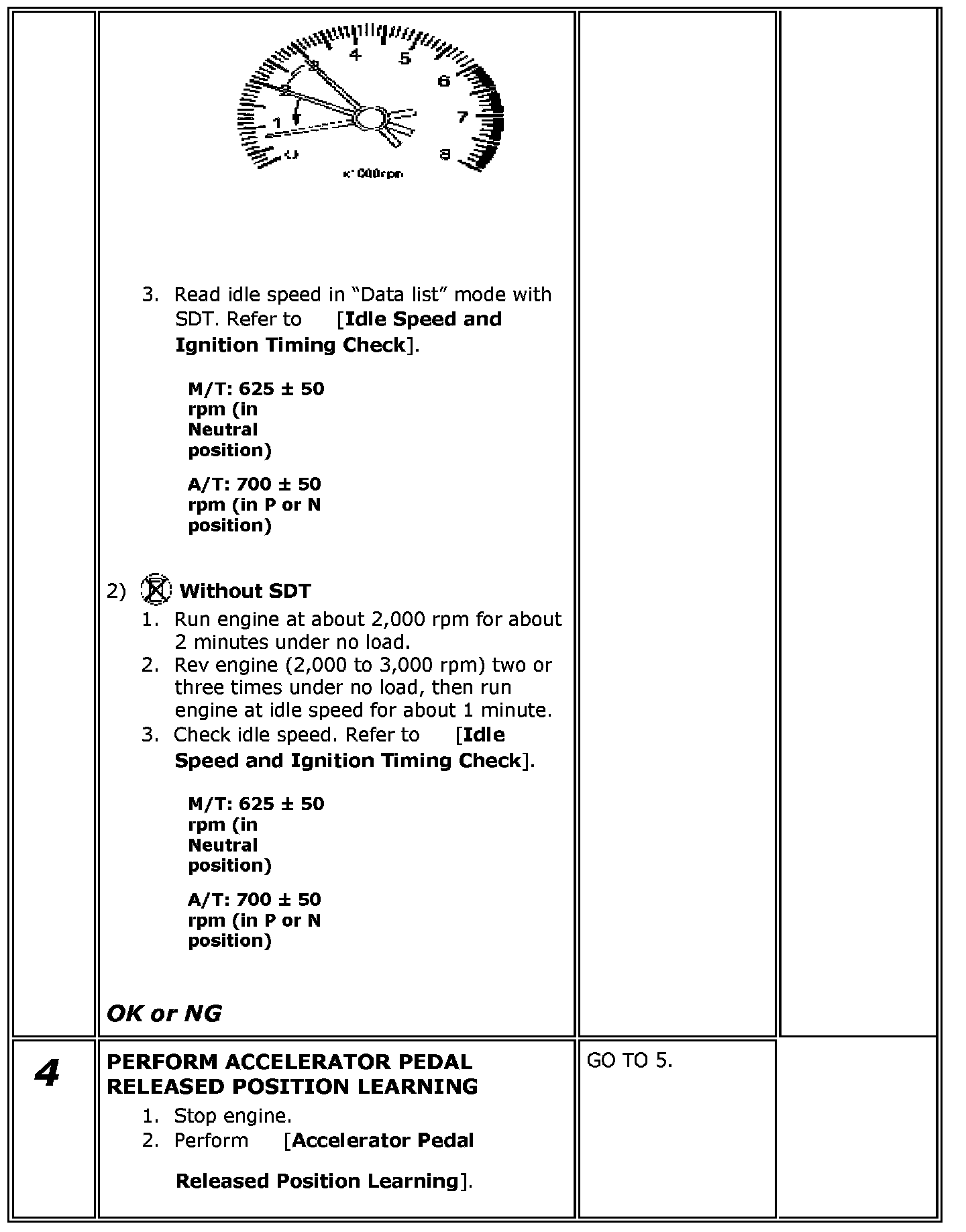

Step 3 (Continued)-4:

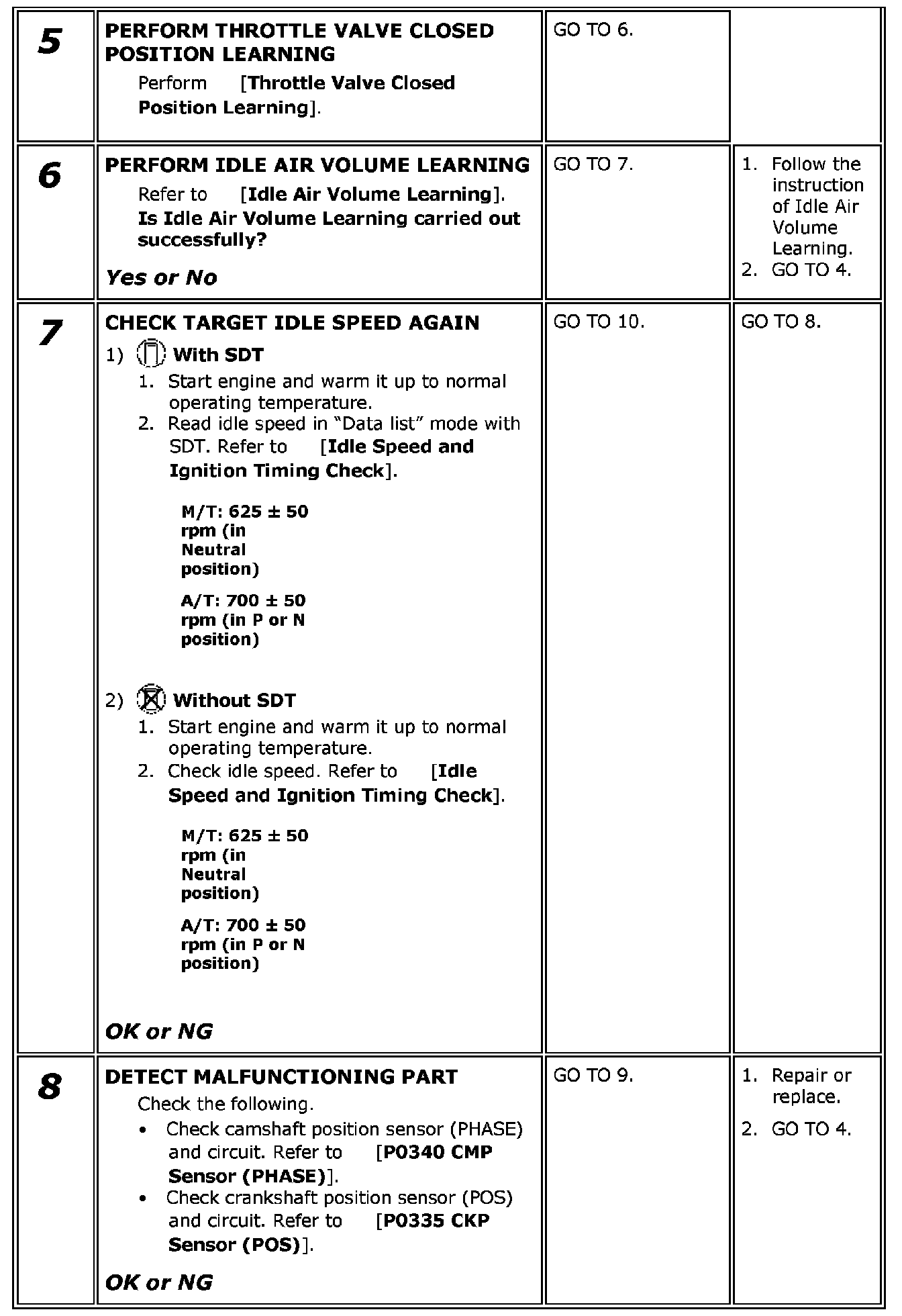

Step 5-8:

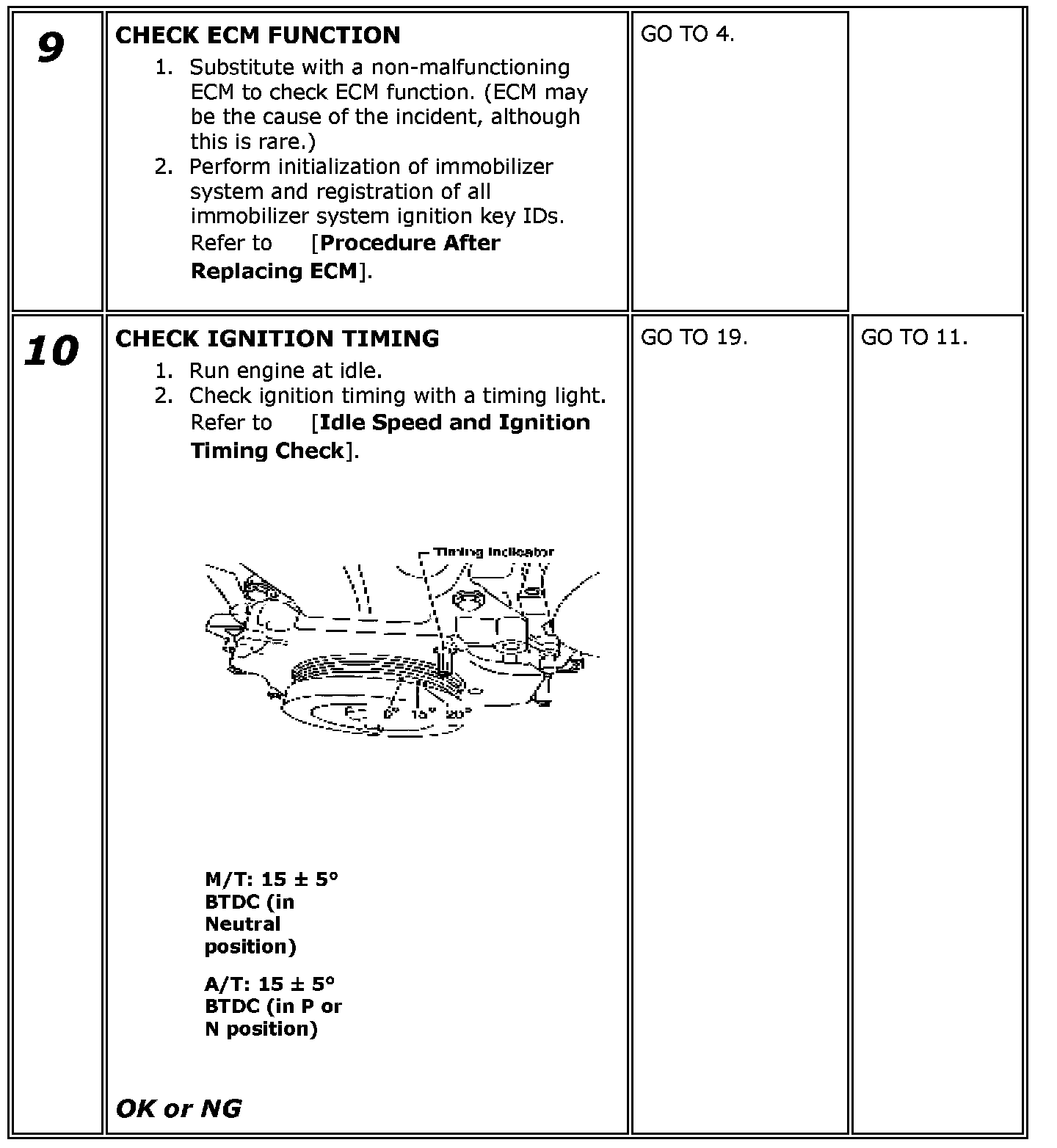

Step 9-10:

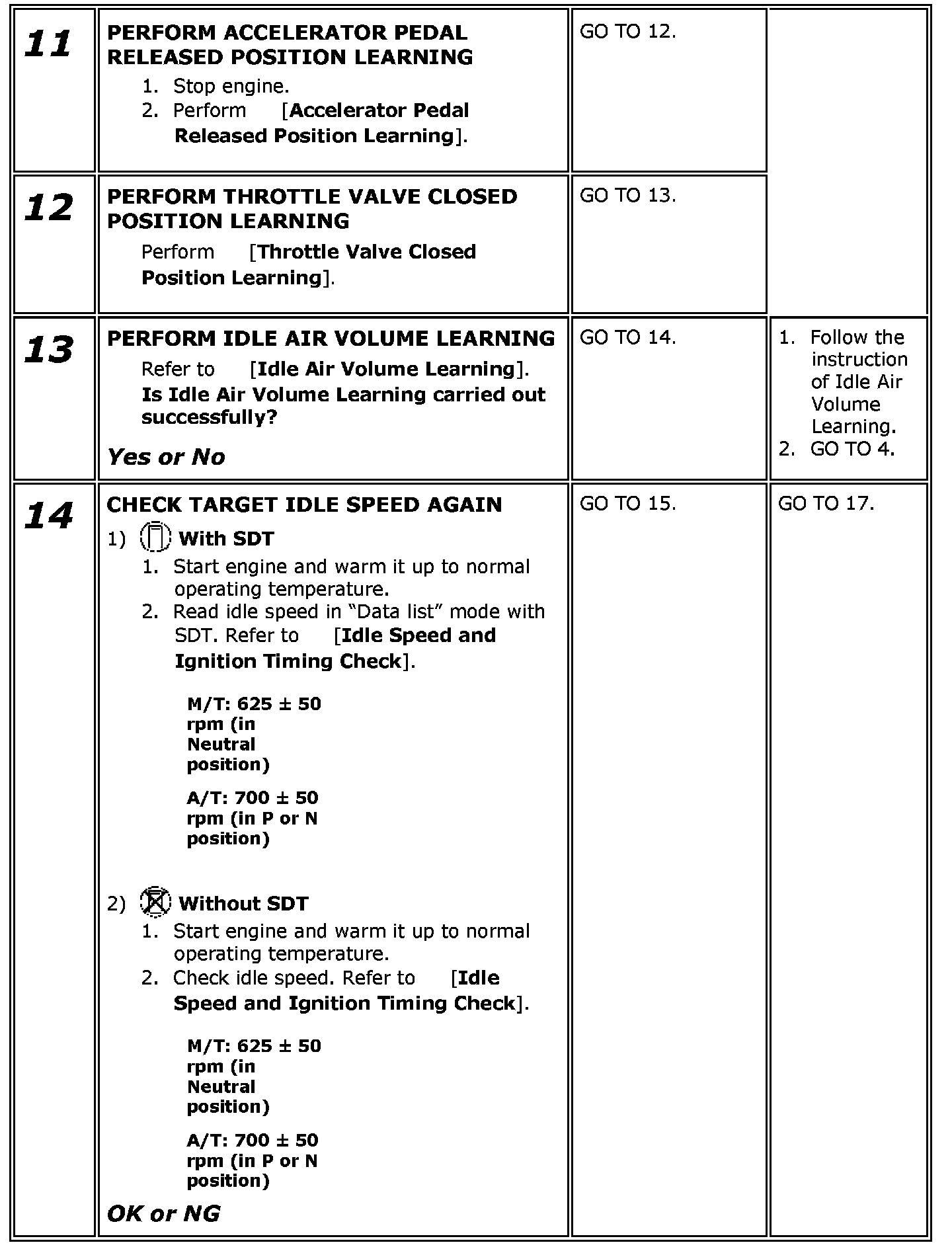

Step 11-14:

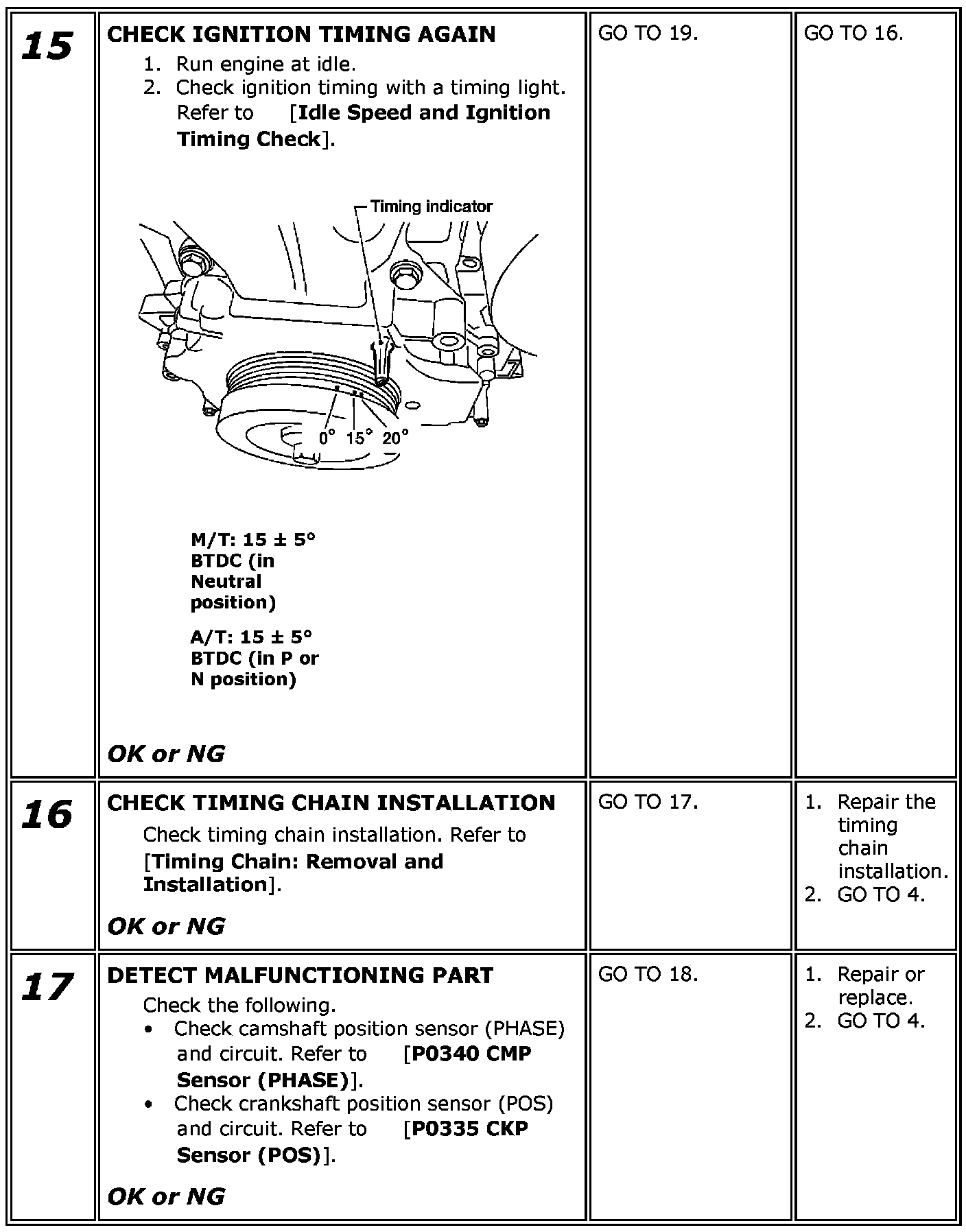

Step 15-17:




Step 18-19:
