Symptom Related Diagnostic Procedures

Engine Control System Symptoms: Symptom Matrix Chart

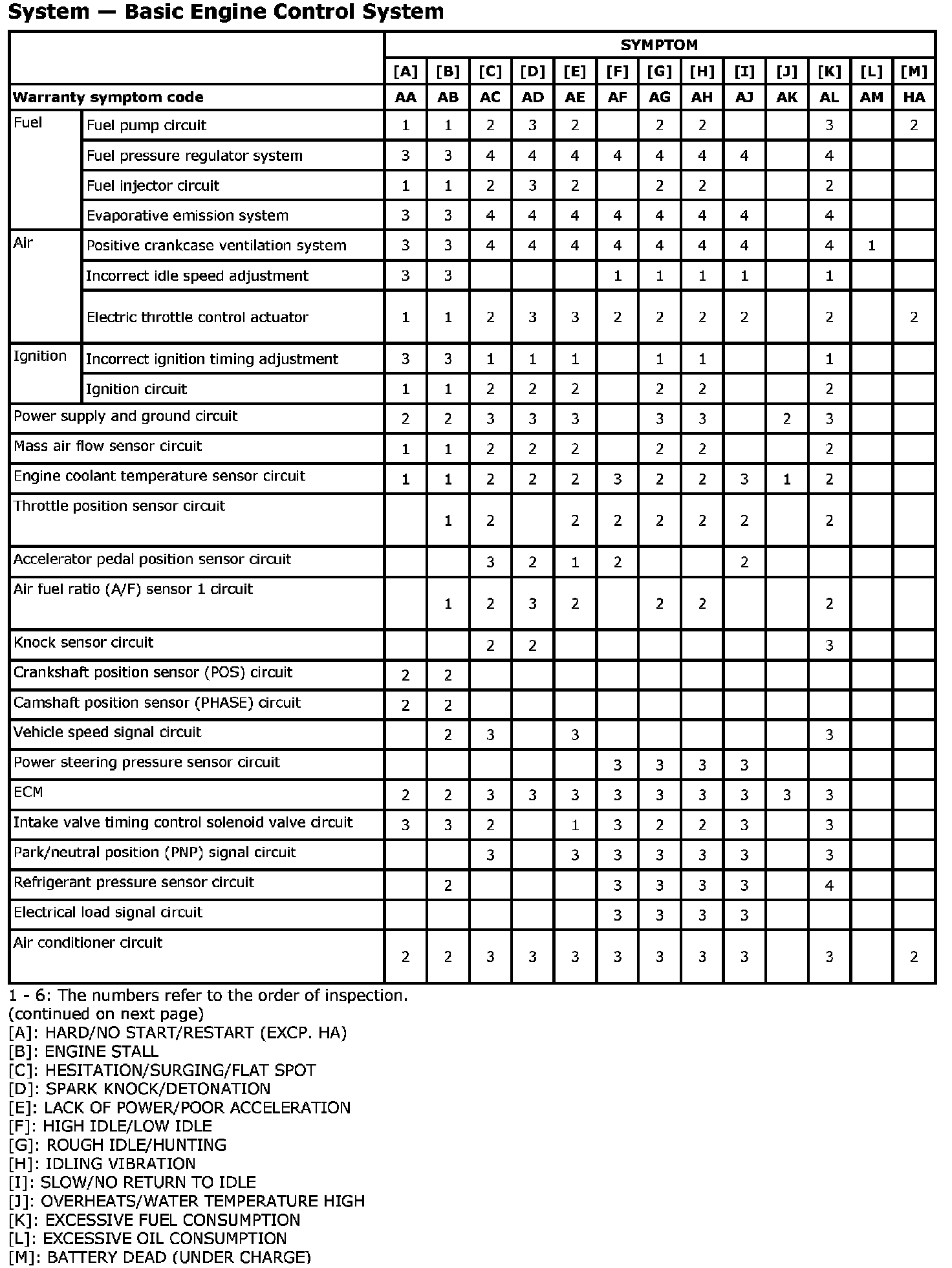

System Basic Engine Control System

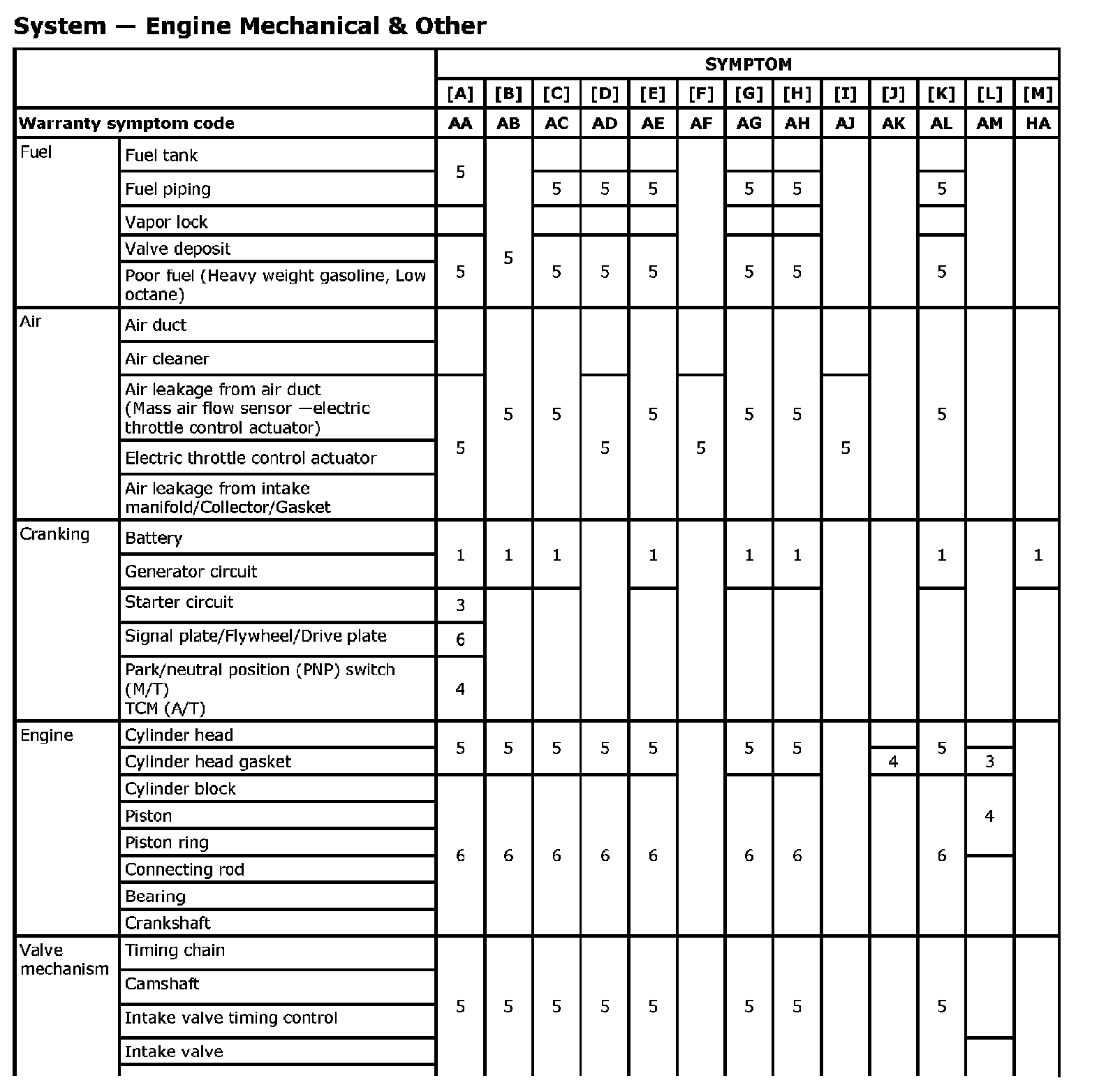

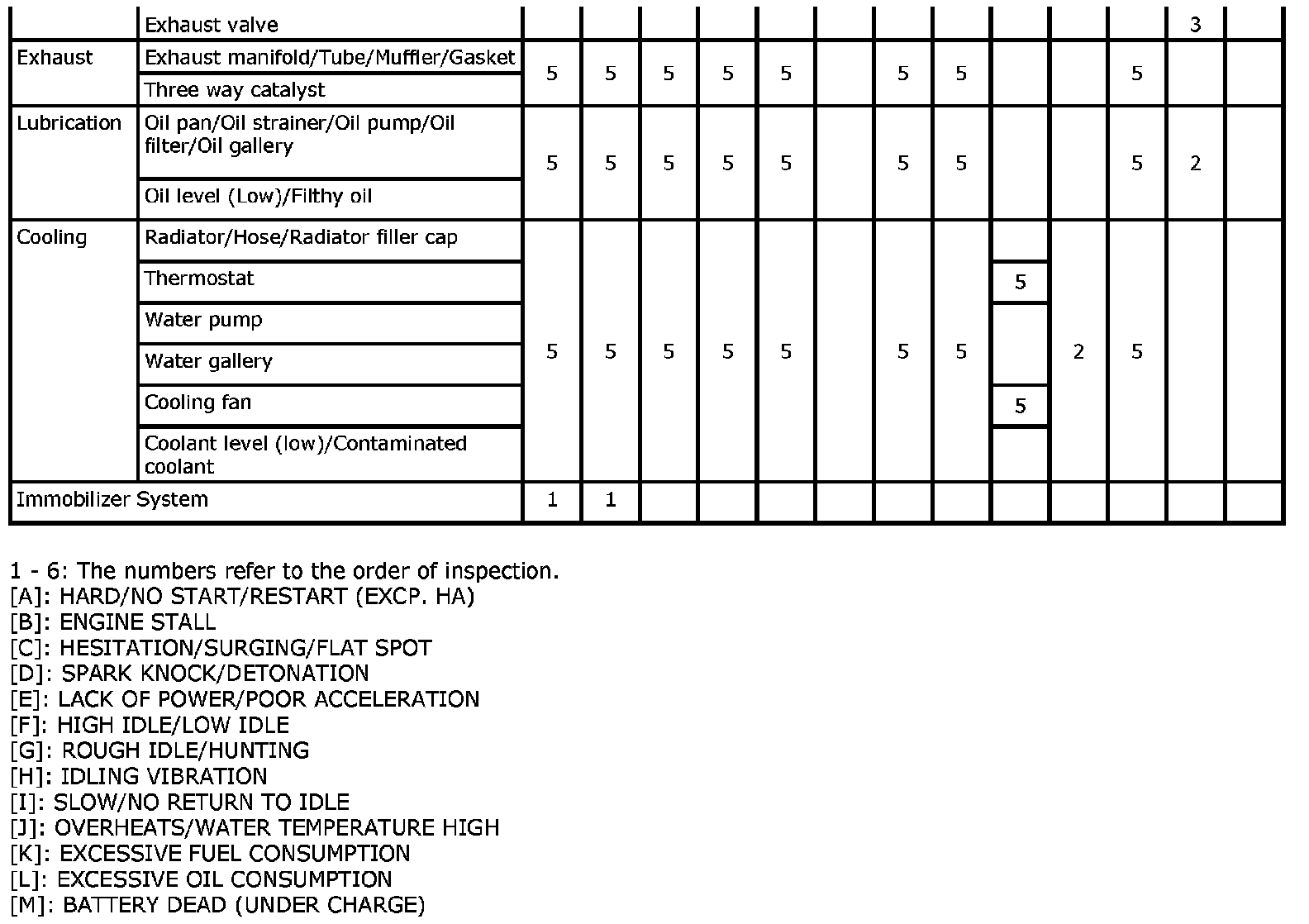

System - Engine Mechanical & Other
