Body Control Module: Service and Repair

BCM: Removal and Installation

Removal

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to [Additional Service When Replacing Control Unit].

1. Disconnect the battery negative terminal.
2. Remove the lower instrument panel LH. Refer to [Instrument Panel Assembly: Removal and Installation].

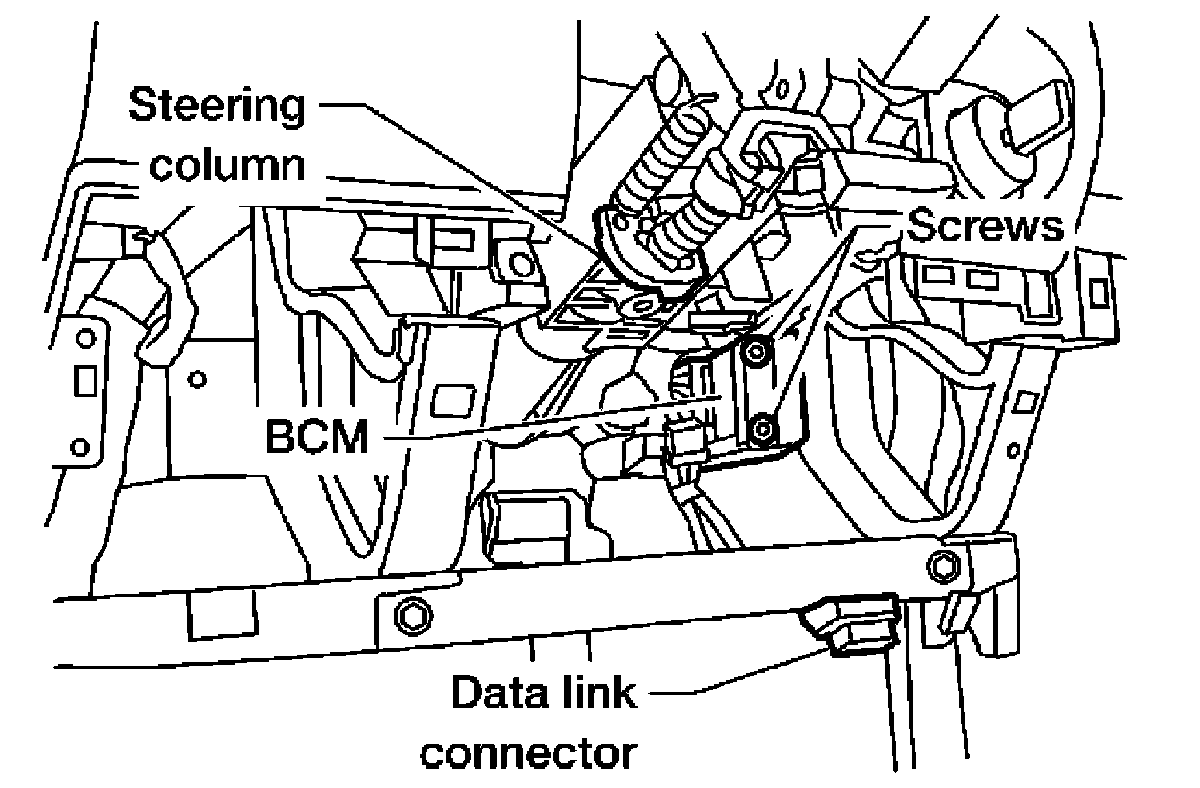

3. Remove the BCM screws and release the BCM.






4. Disconnect the BCM connectors and then remove the BCM.

Installation
Installation is in the reverse order of removal.

NOTE:
- When replacing the BCM, it must be configured. Refer to [Basic Inspection: Configuration].
- When replacing the BCM, if equipped with immobilizer system perform initialization of immobilizer system and registration of all immobilizer system ignition key IDs. Refer to [Basic Inspection: Configuration].
- When replacing the BCM, perform ID registration procedure of low tire pressure warning system. Refer to [ID Registration Procedure].
- When replacing the BCM, if equipped with remote keyless entry, register the remote keyless entry system keyfob ID codes. Refer to [Additional Service When Replacing Control Unit].
- When replacing the BCM, perform adjustment procedure for the steering angle sensor if equipped. Refer to [Adjustment of Steering Angle Sensor Neutral Position] (type 2) or [Adjustment of Steering Angle Sensor Neutral Position] (type 3).
