Alignment

Service Data and Specifications

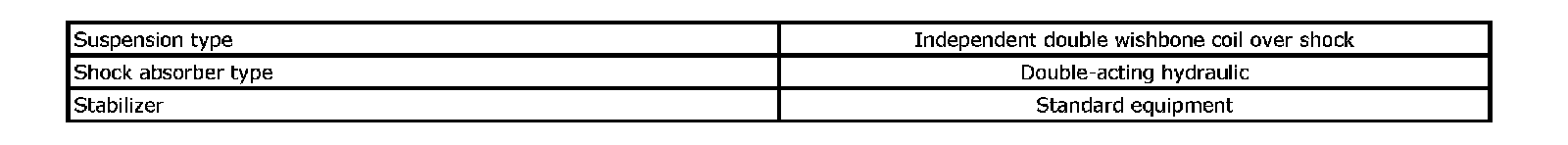

General Specification (Front)

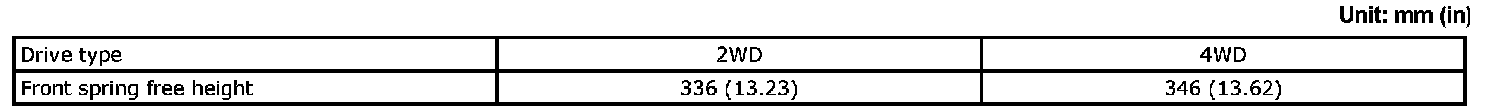

Spring Free Height

VQ40DE





QR25DE

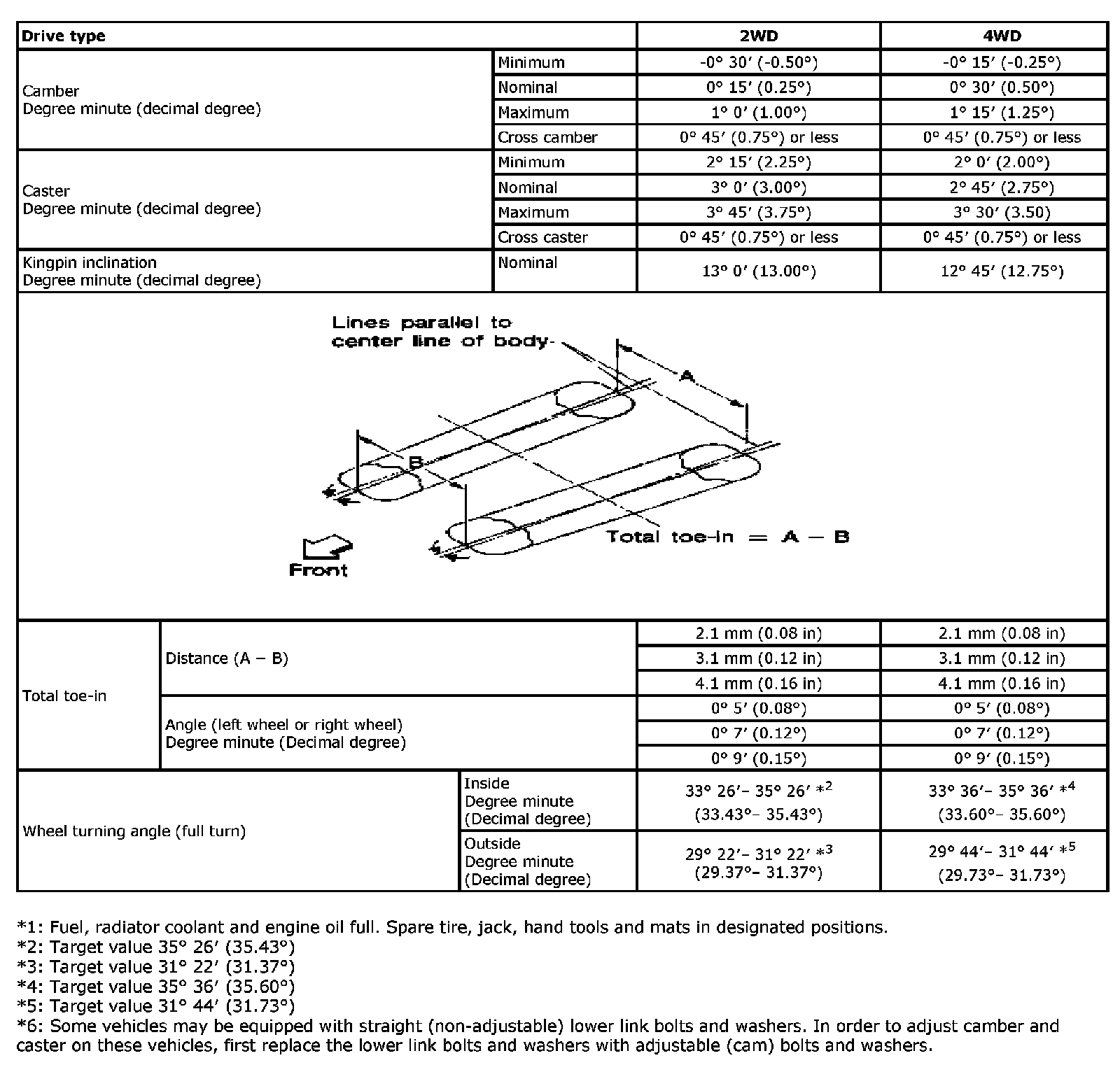

Wheel Alignment (Unladen*1)*6

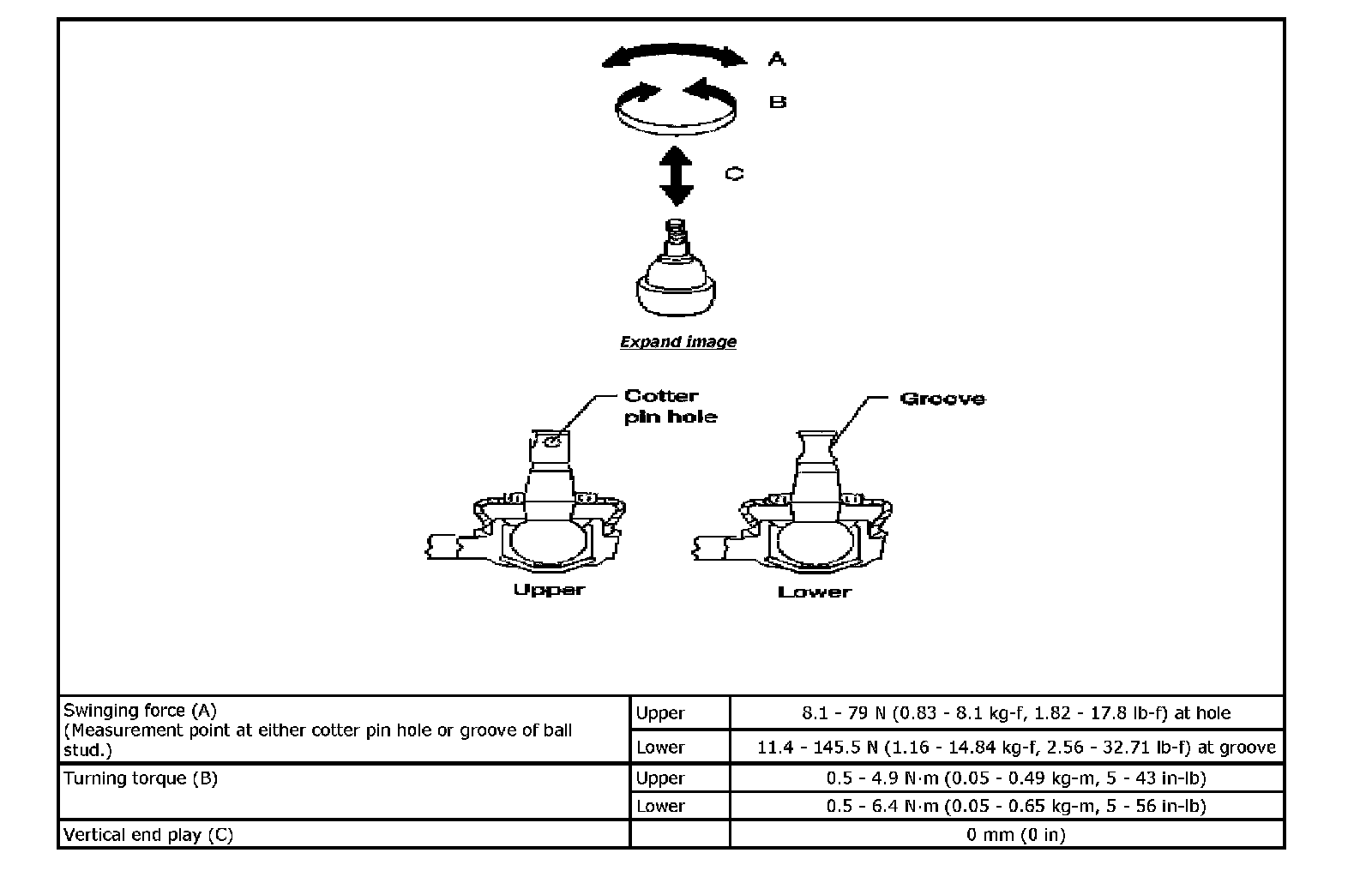

Ball Joint

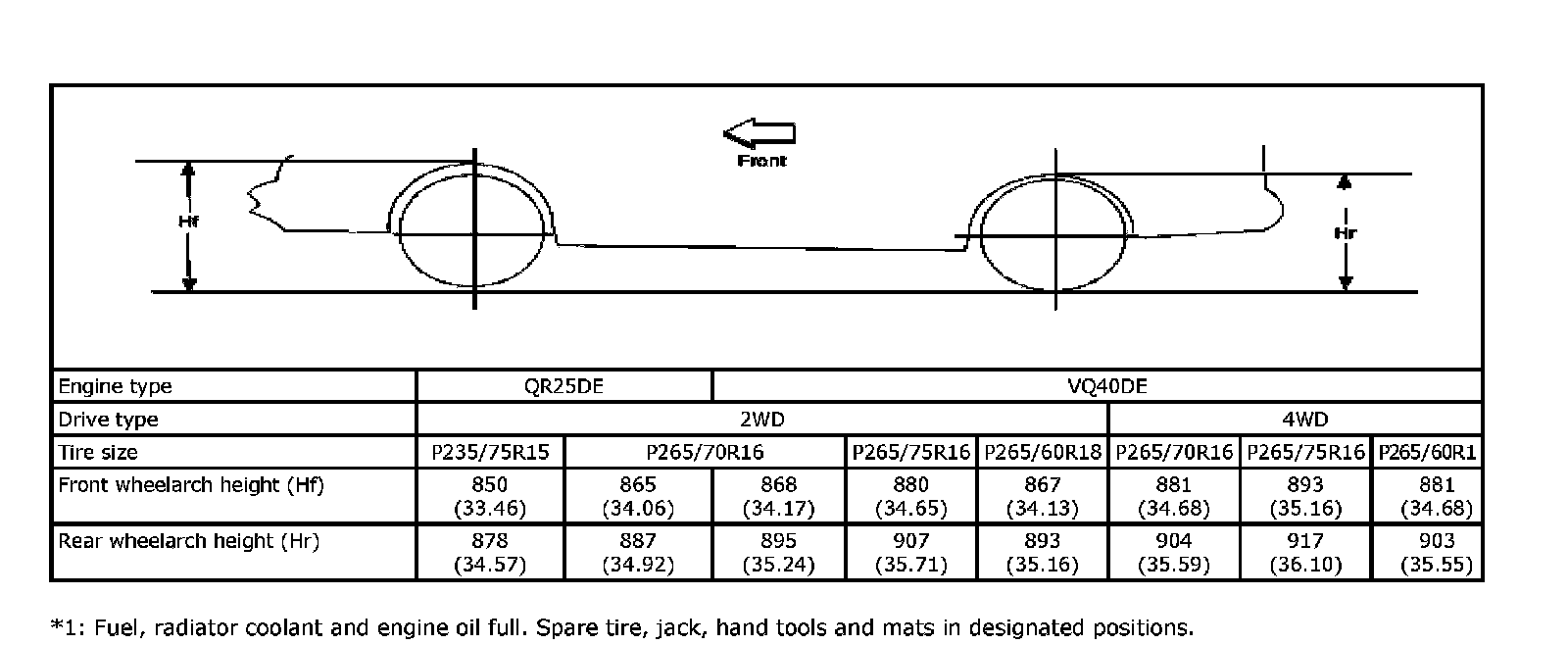

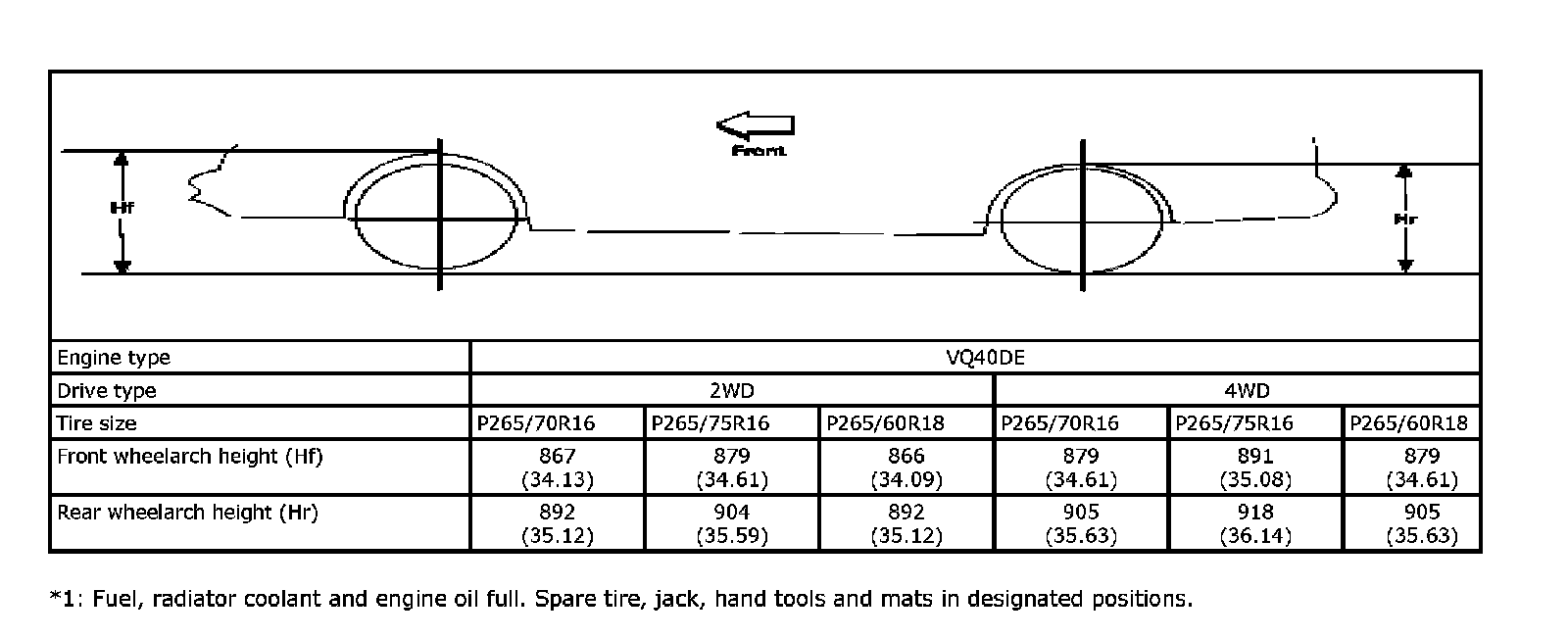

Wheelarch Height (Unladen*1)

King Cab





Crew cab
