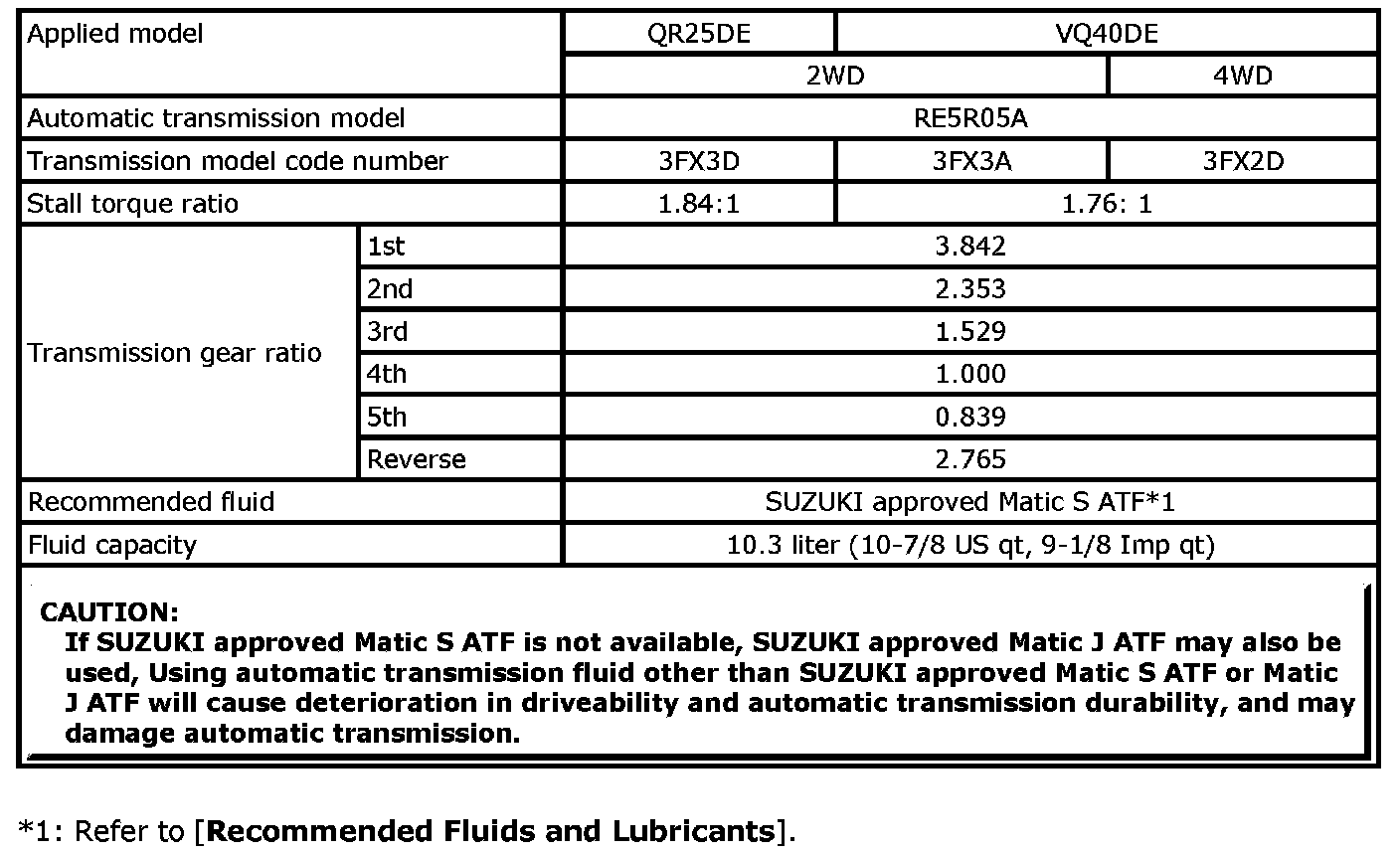

General Specification

General Specification





*1: Refer to [Recommended Fluids and Lubricants].

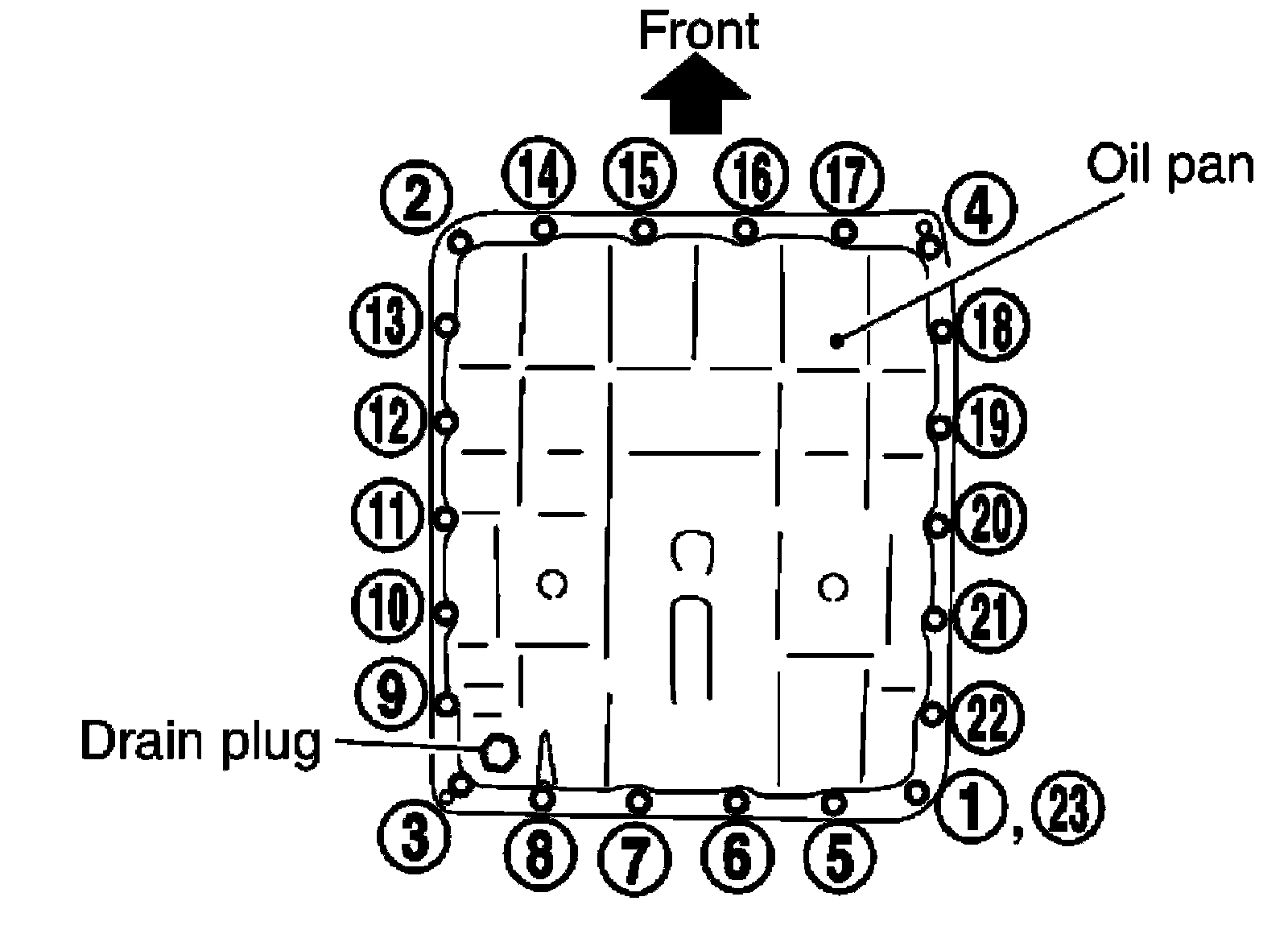

Tighten oil pan bolts in numerical order as shown.
Oil pan bolts : 7.9 Nm (0.81 kg-m, 70 in-lb)
