System Specifications

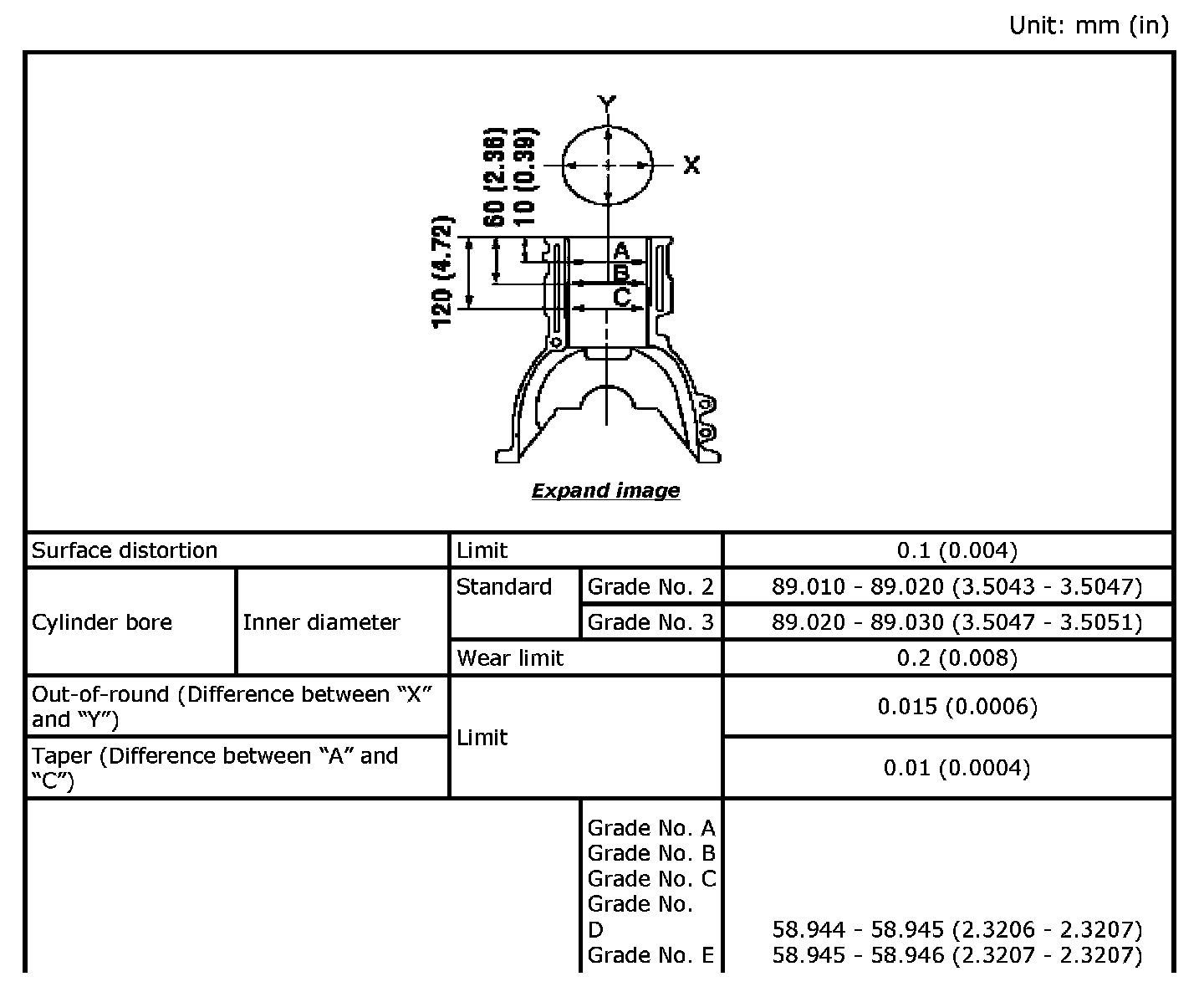

Cylinder Block








Piston, Piston Ring and Piston Pin

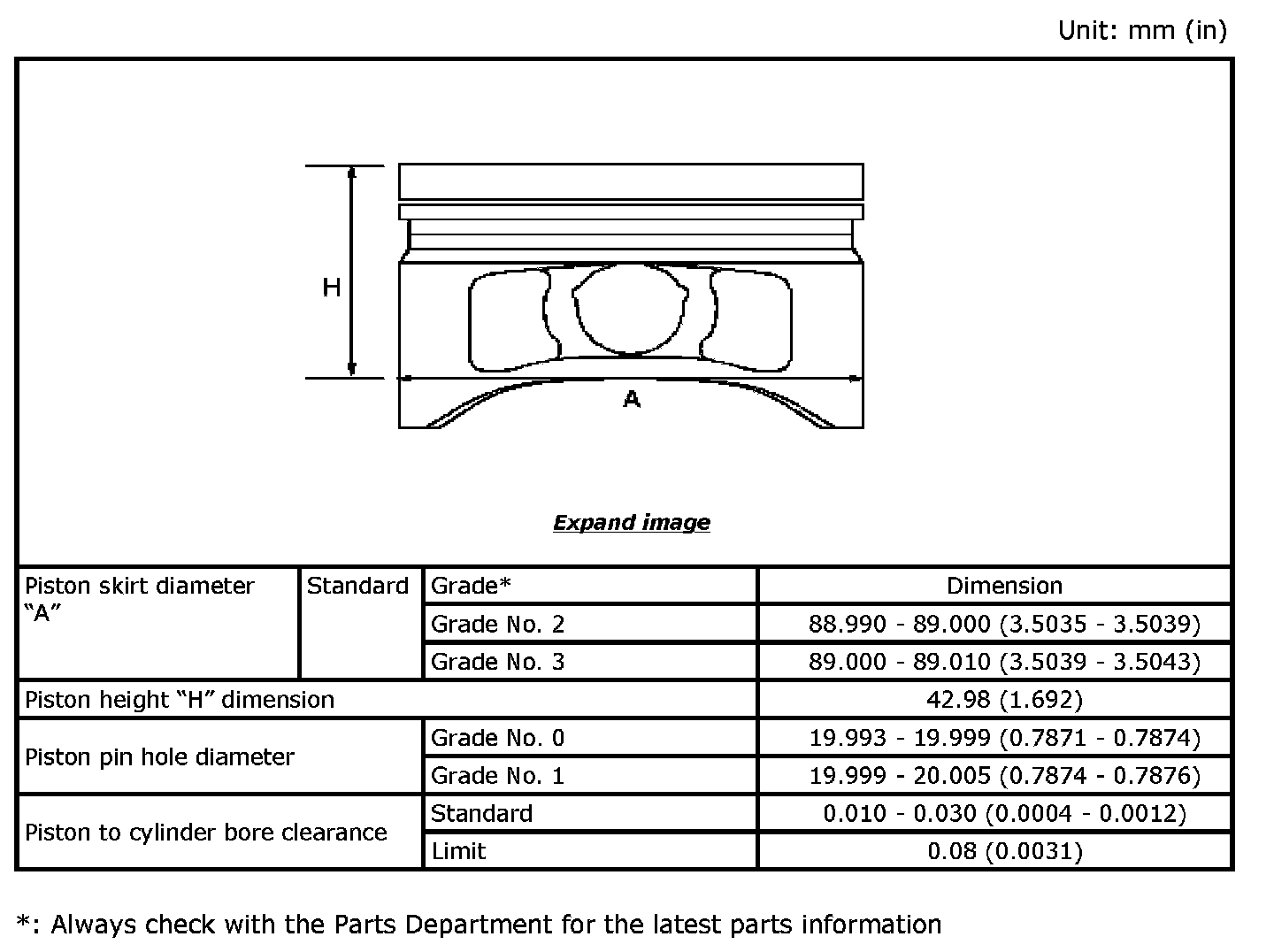

Available Piston

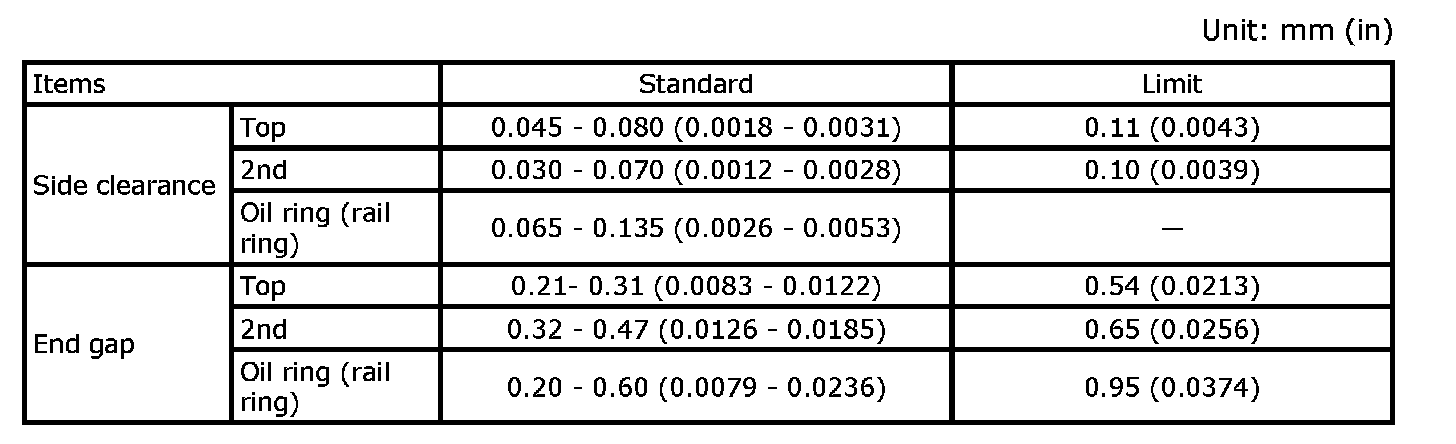

Piston Ring

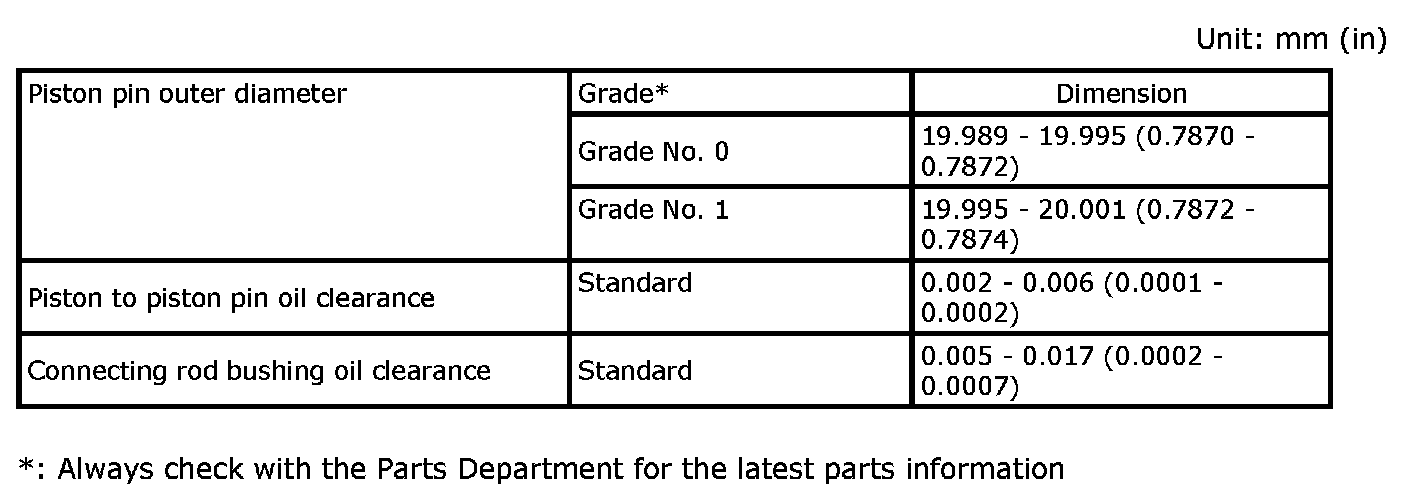

Piston Pin

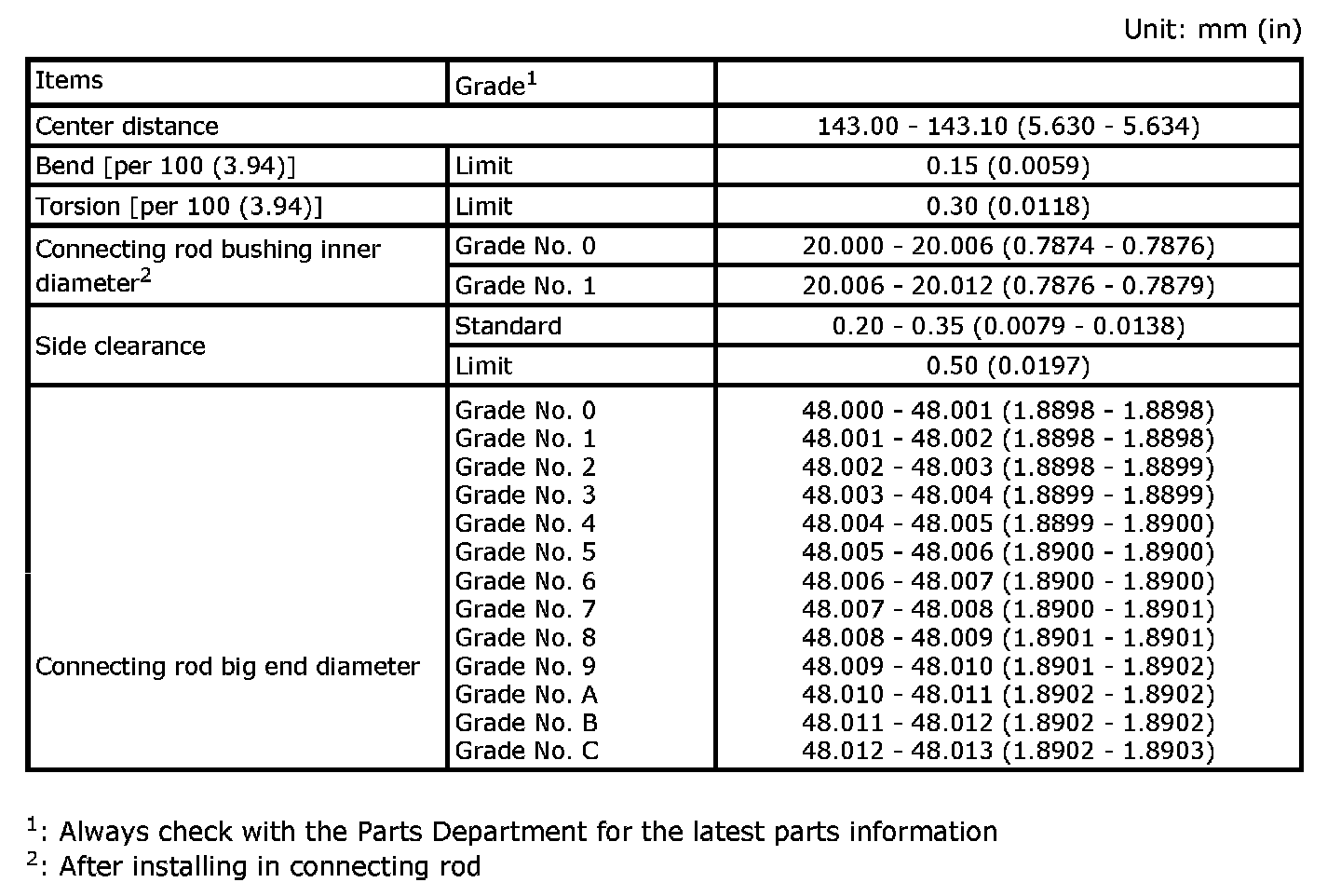

Connecting Rod

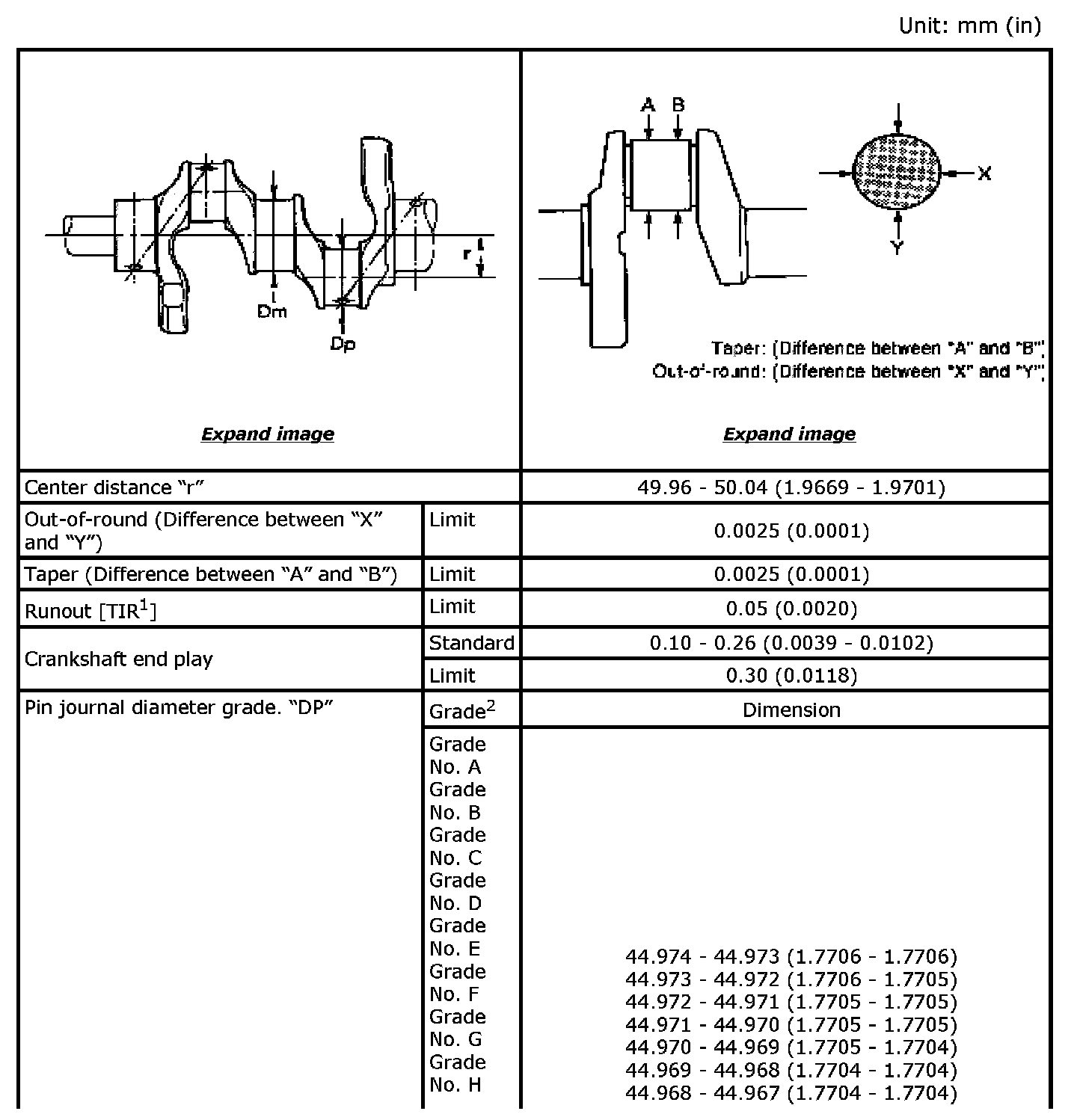

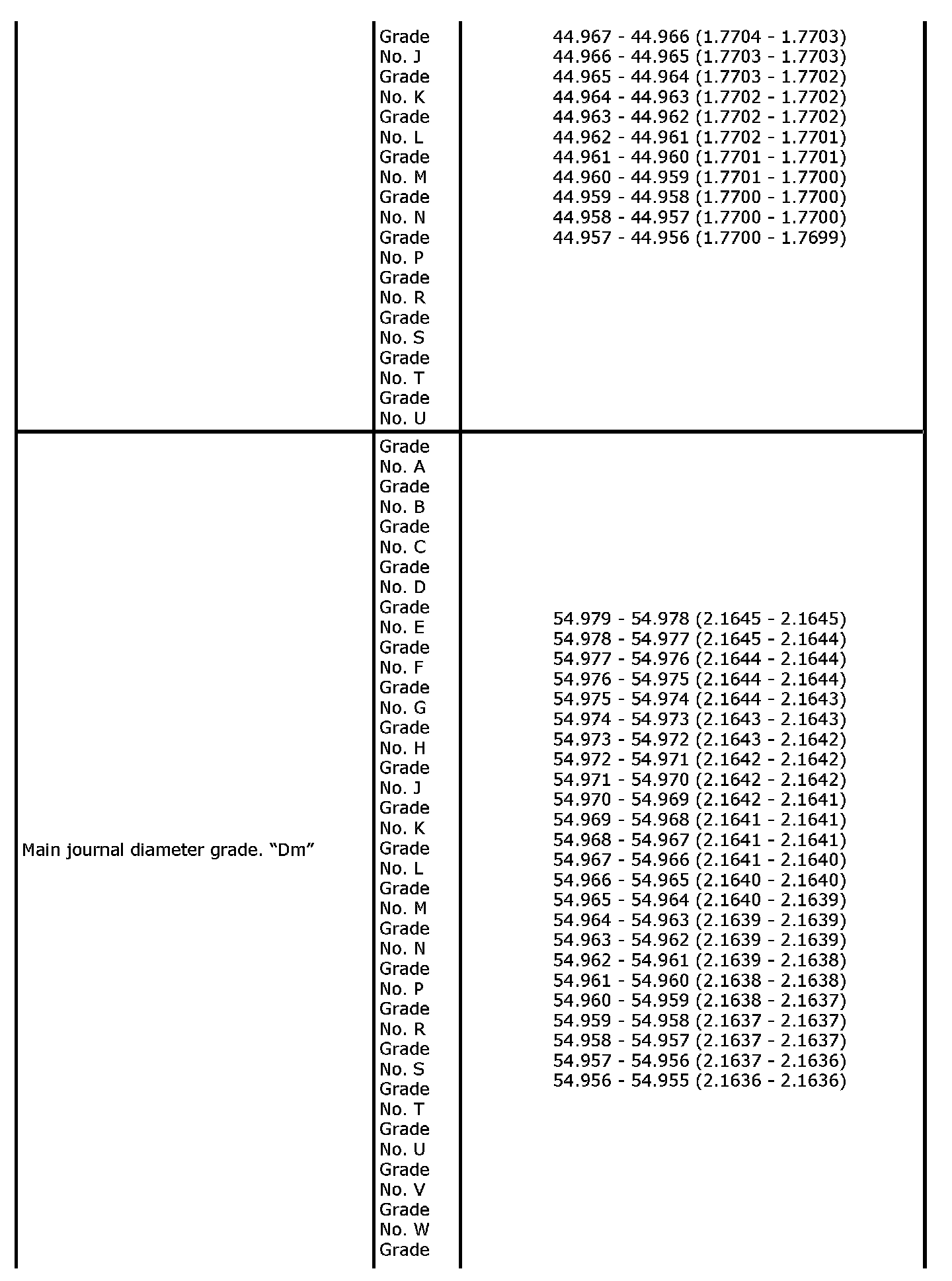

Crankshaft

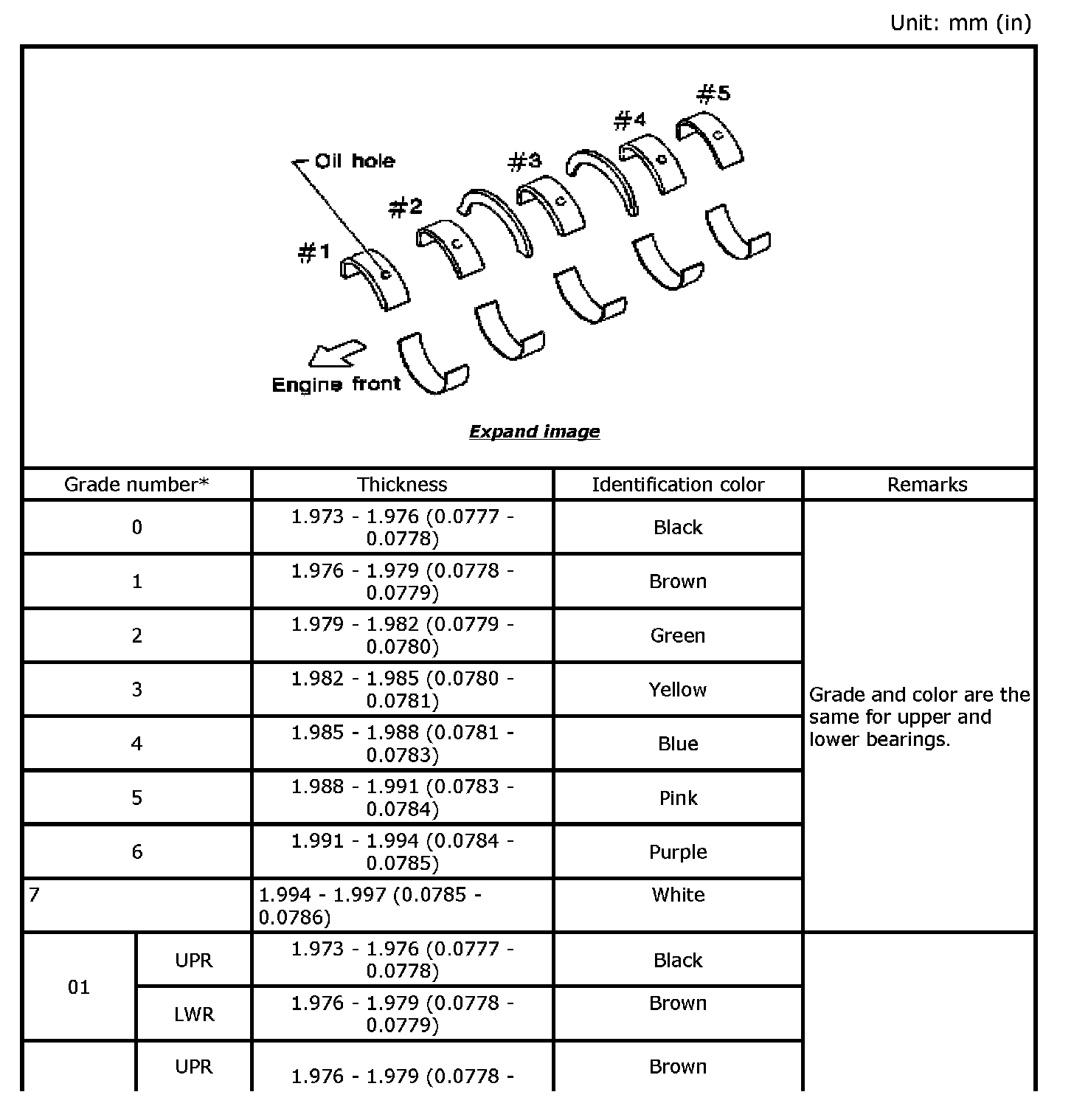

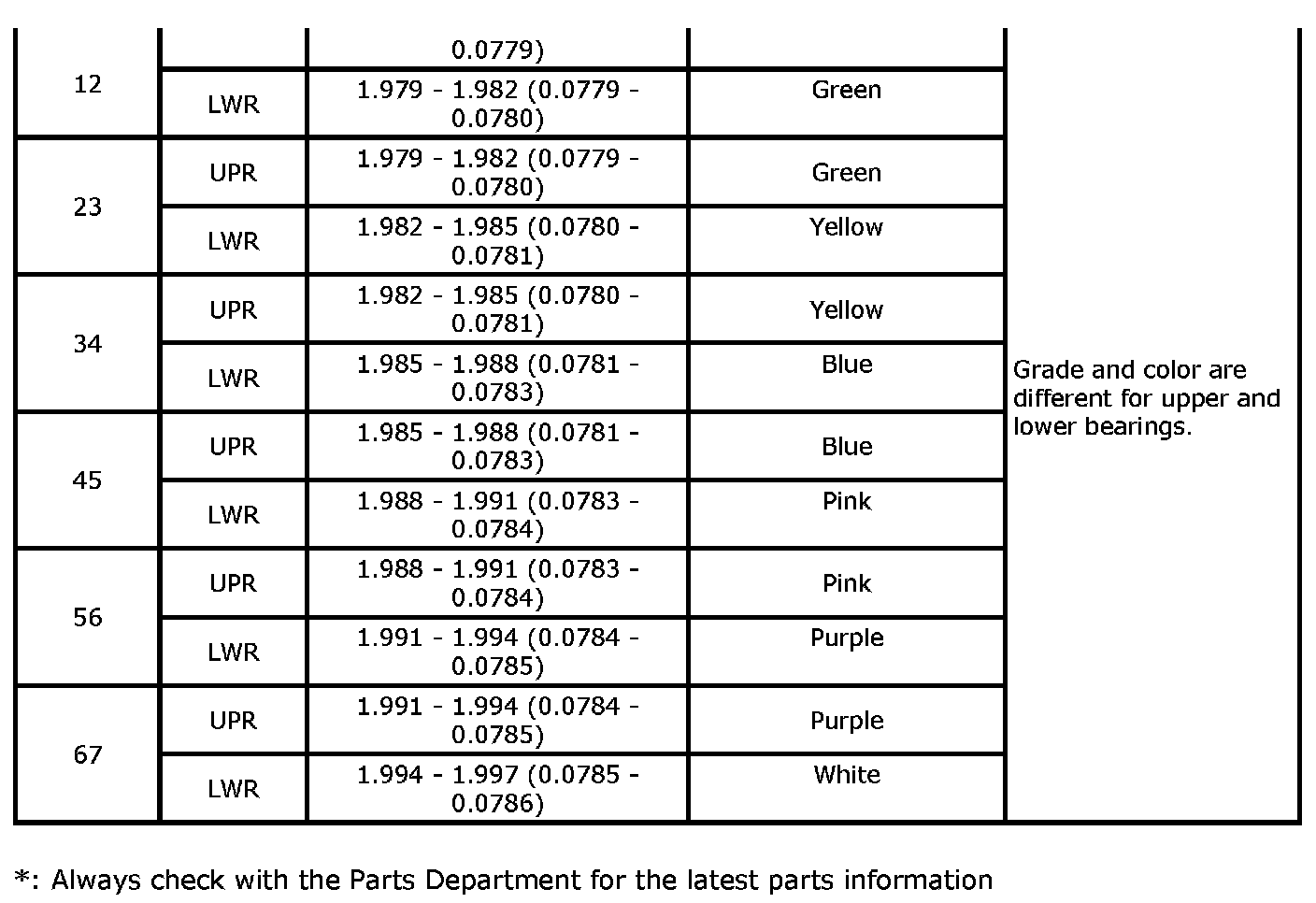

Main Bearing








Undersize

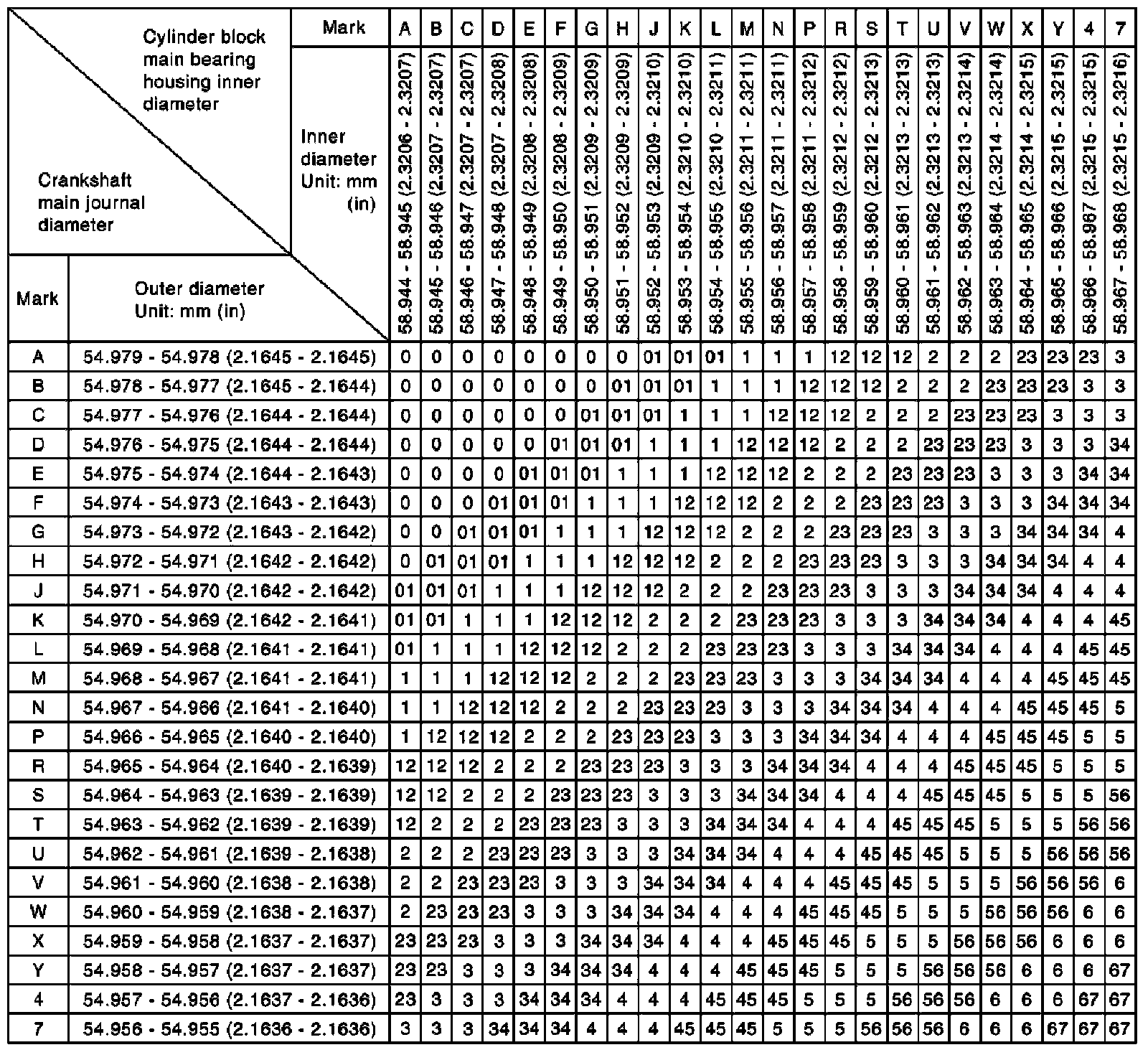

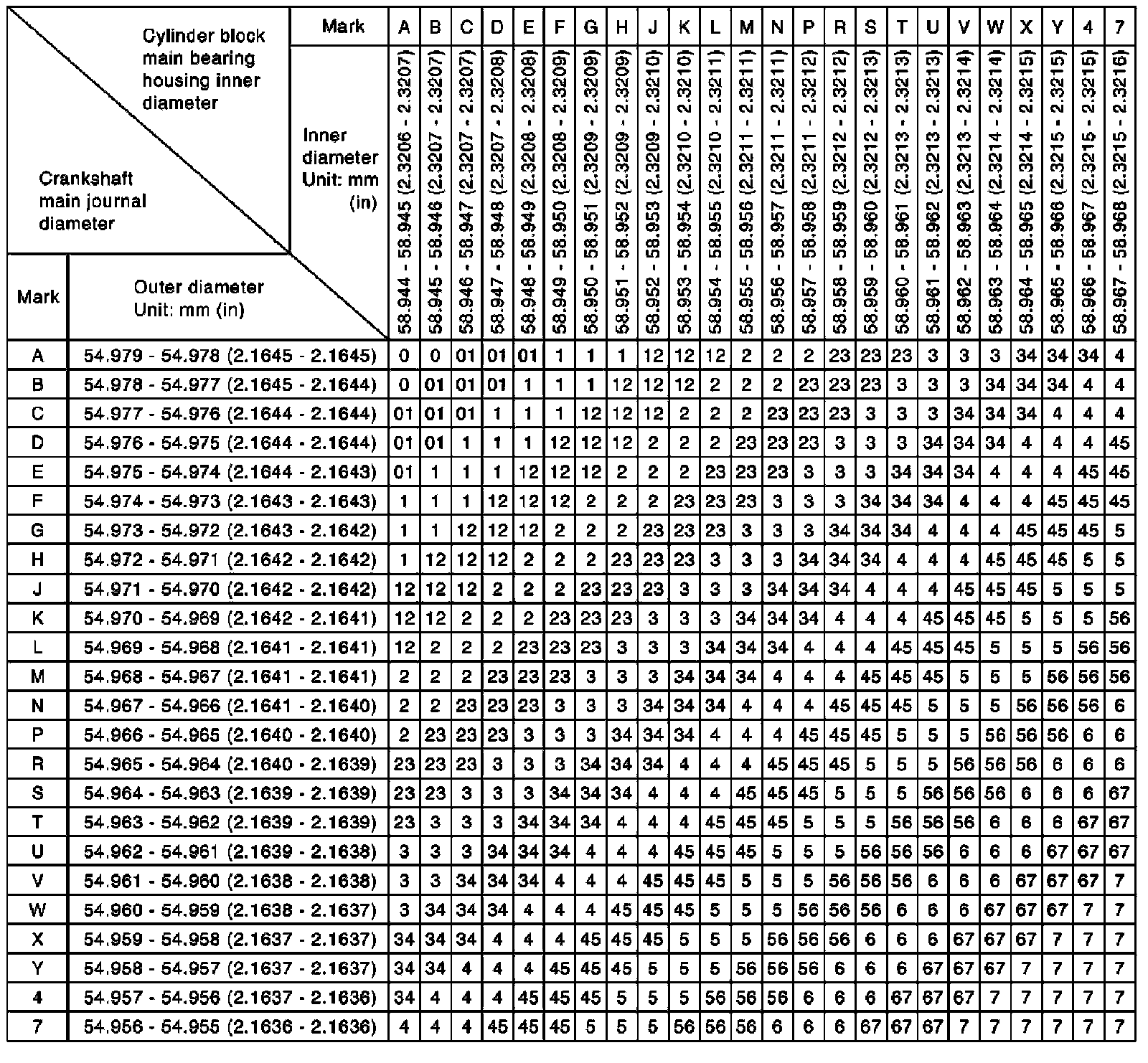

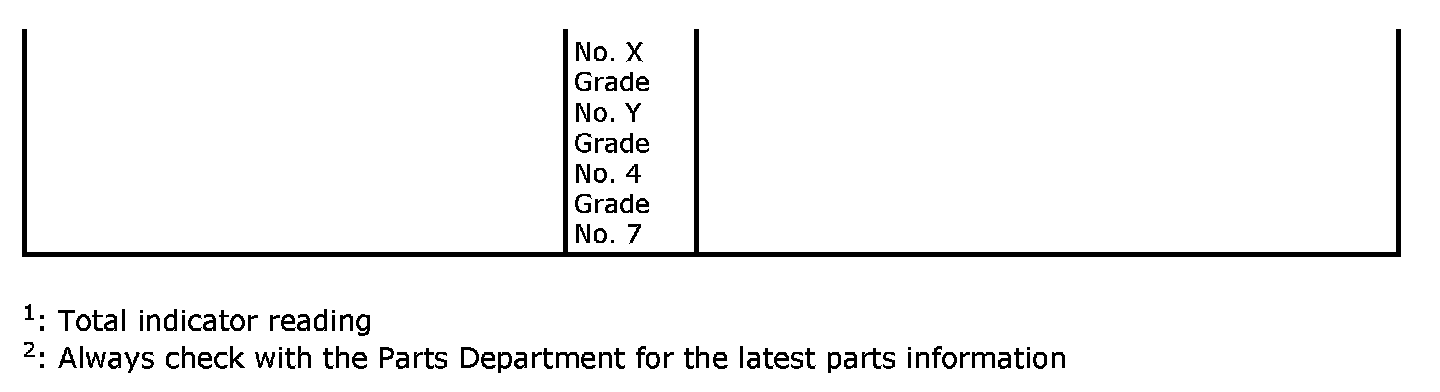

Main Bearing Selection Table (No. 1, 3 and 5 journals)





Main Bearing Selection Table (No. 2 and 4 journals)

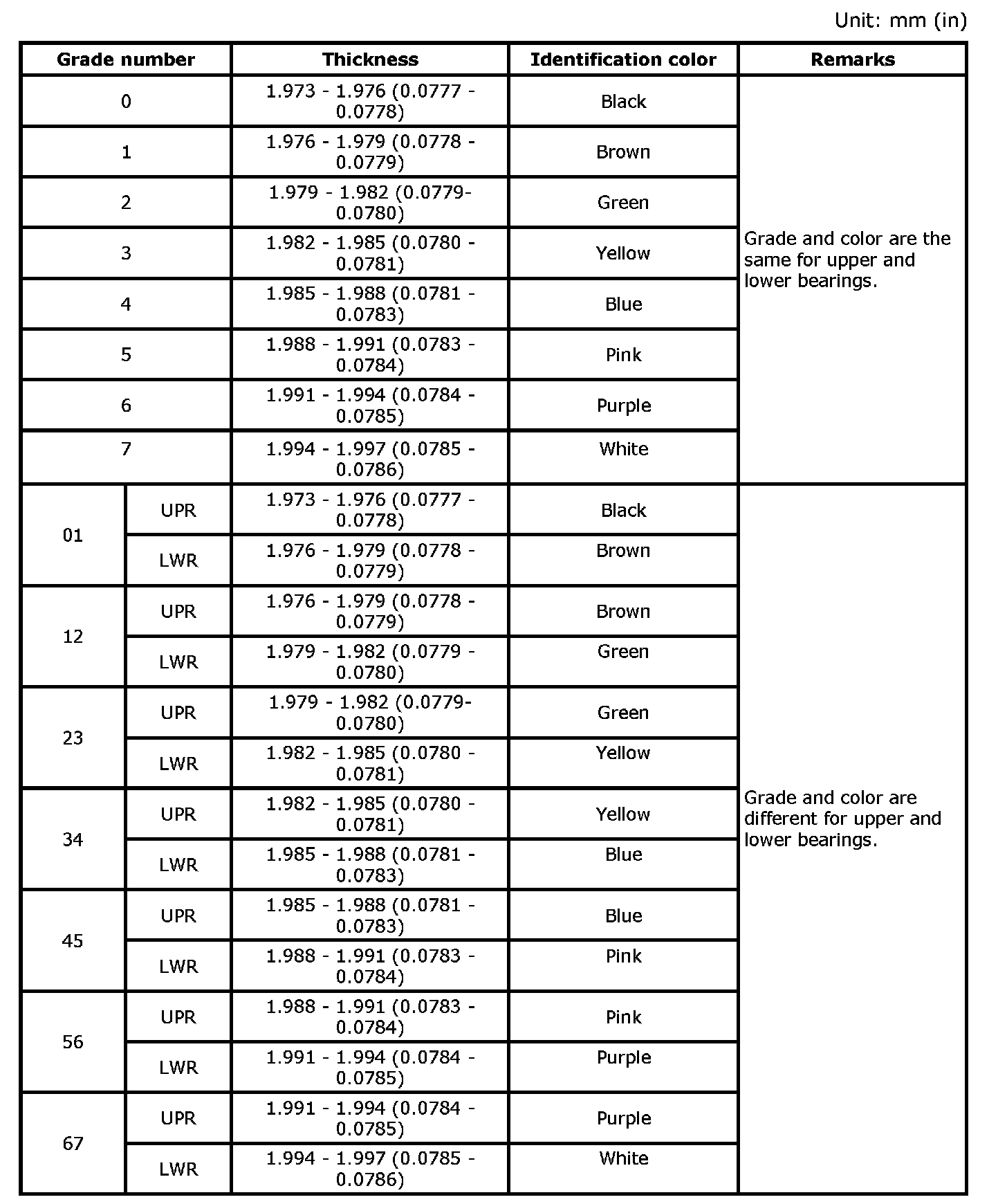

Main Bearing Grade Table (All Journals)

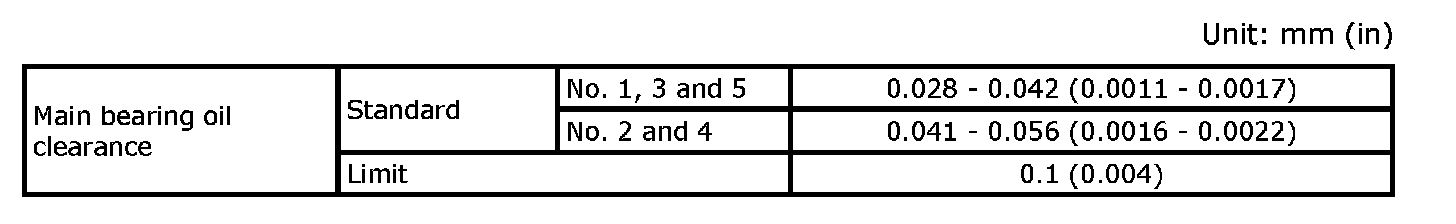

Bearing Oil Clearance

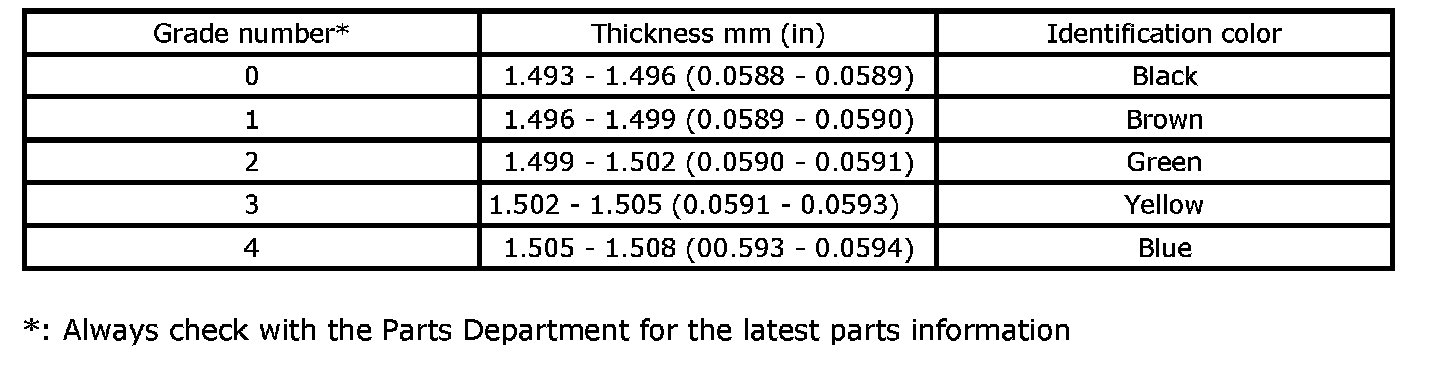

Connecting Rod Bearing

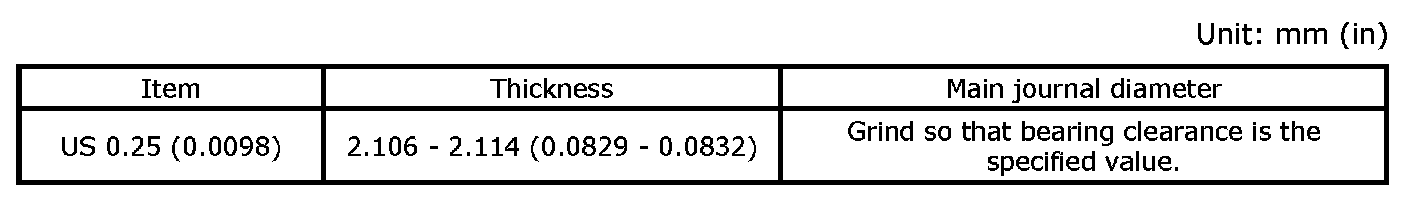

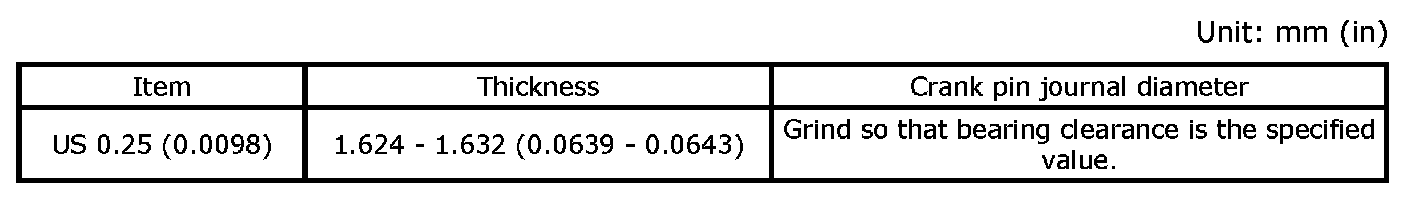

Undersize

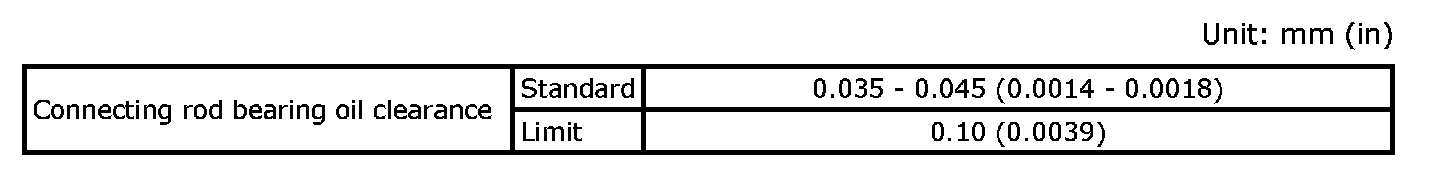

Bearing Oil Clearance

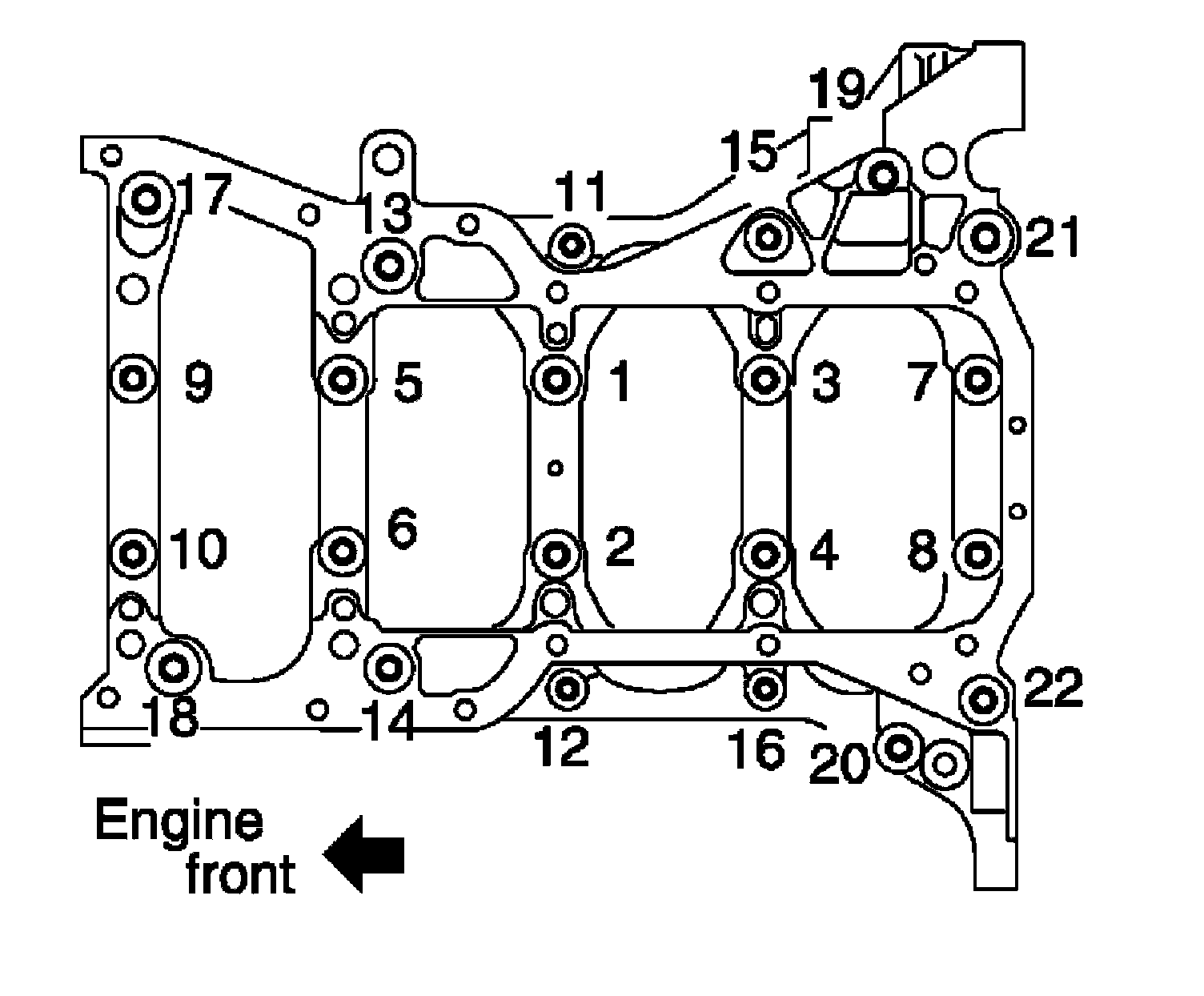

Lower cylinder block





Step 1 (bolts 11 - 22) 25.1 Nm (2.6 kg-m, 19 ft-lb)
Step 2 (bolts 1 - 10) 39.2 Nm (4.0 kg-m, 29 ft-lb)
Step 3 (bolts 1 - 10) 60 degrees - 65 degrees (target: 60 degrees)

Crankshaft pulley

Tighten 42.1 Nm (4.3 kg-m, 31 ft-lb)
Angle tighten 60 degrees
