Symptom Related Diagnostic Procedures

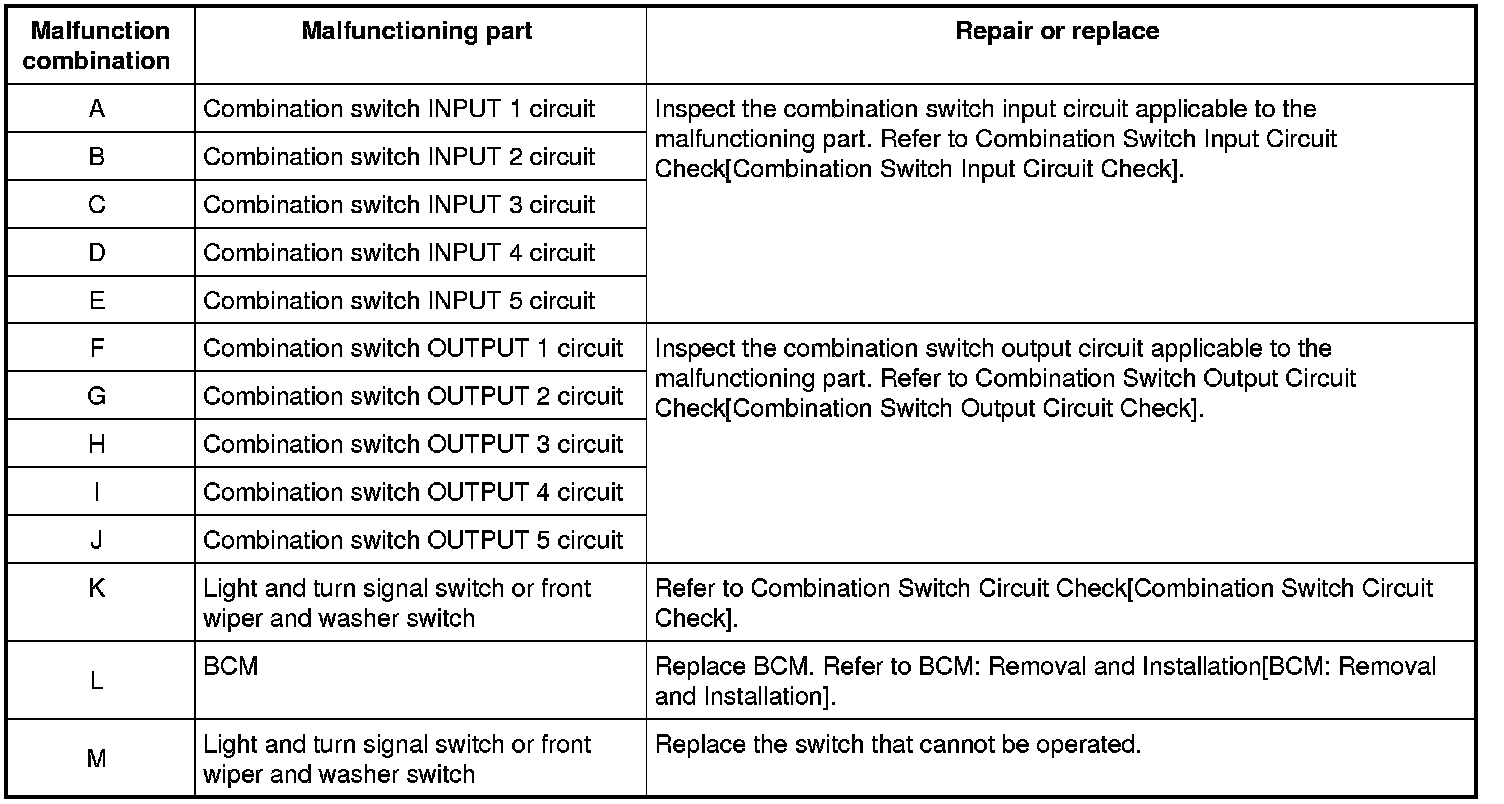

Combination Switch System Symptoms: Symptom Table

1) Perform the data list of SDT to check for any malfunctioning item.
2) Check the malfunction combinations.
Malfunction item: x






[a]: TURN SIGNAL R

[b]: TURN SIGNAL L

[c]: HI BEAM SW

[d]: HEADLAMP SW 1

[e]: HEADLAMP SW 2

[f]: TAIL LAMP SW

[g]: PASSING SW

[h]: FR FOG SW

[i]: FR WIPER HI

[j]: FR WIPER LOW

[k]: FR WIPER INT

[l]: FR WASHER SW

[m]: INT VOLUME
3) Identify the malfunctioning part from the agreed combination and repair or replace the part.
