Disc Brake System: Service and Repair

Disc Brake: Check

Rotor

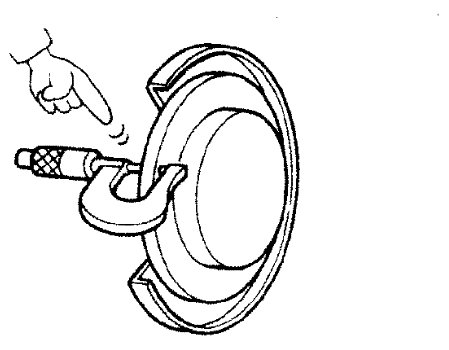

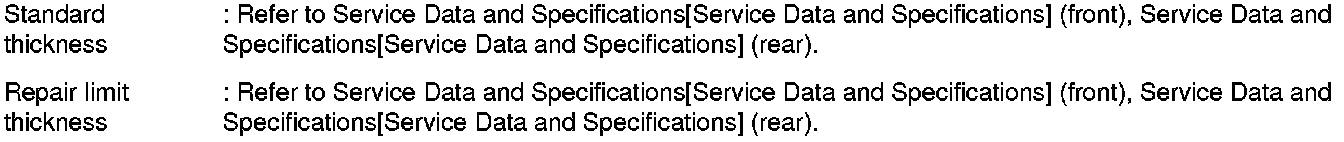

Check the condition of the rotor, and for any wear or damage. Measure the rotor thickness using a suitable tool as shown. Repair or replace as necessary.











Caliper

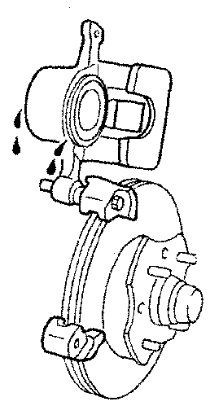

Check for any fluid leakage. Repair as necessary.





Pad

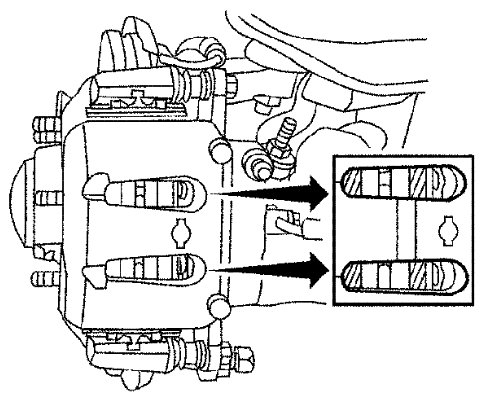

Check for any wear or damage. Measure the pad thickness. Replace as necessary.





NOTE:

Front brake shown, rear brake similar.
