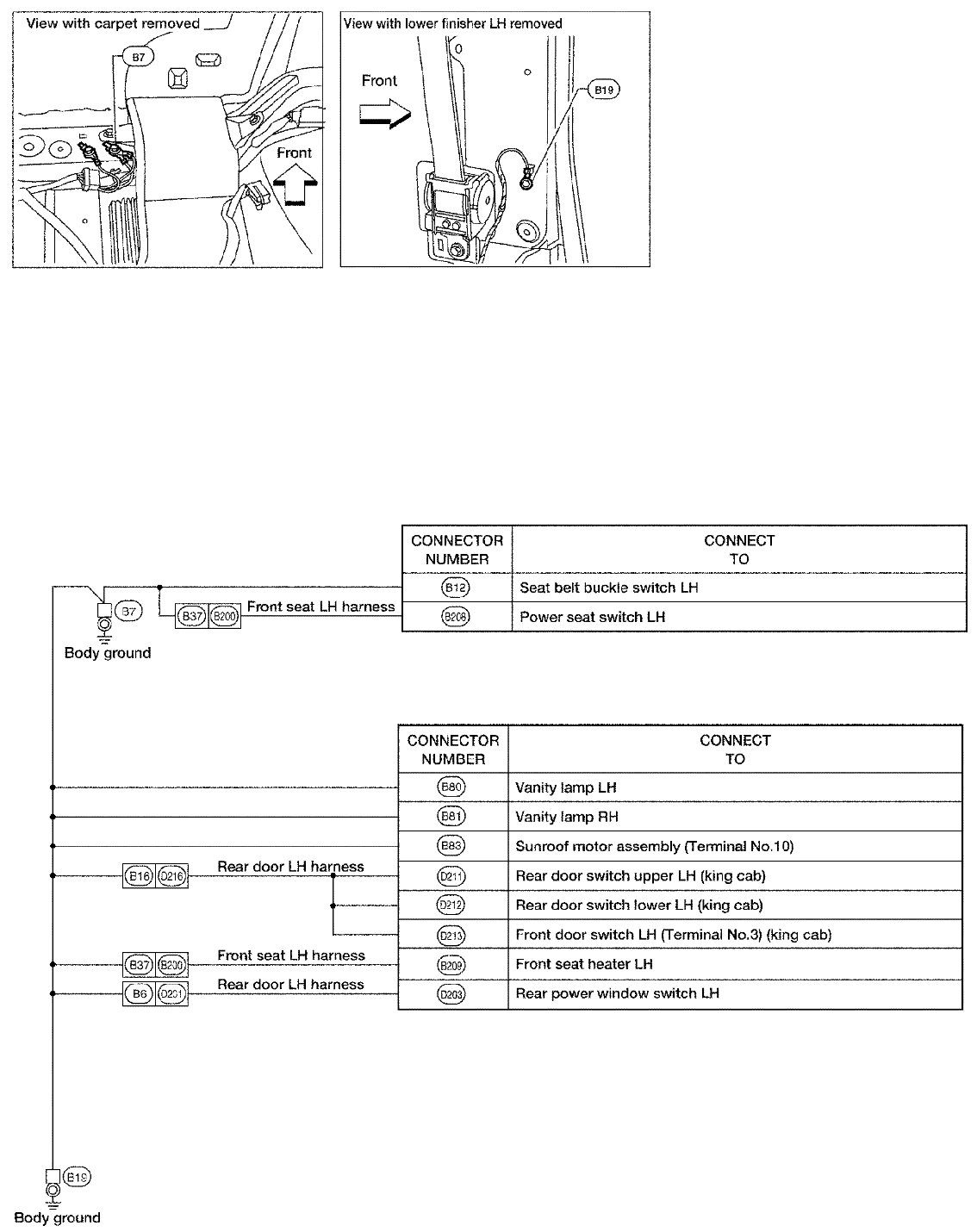

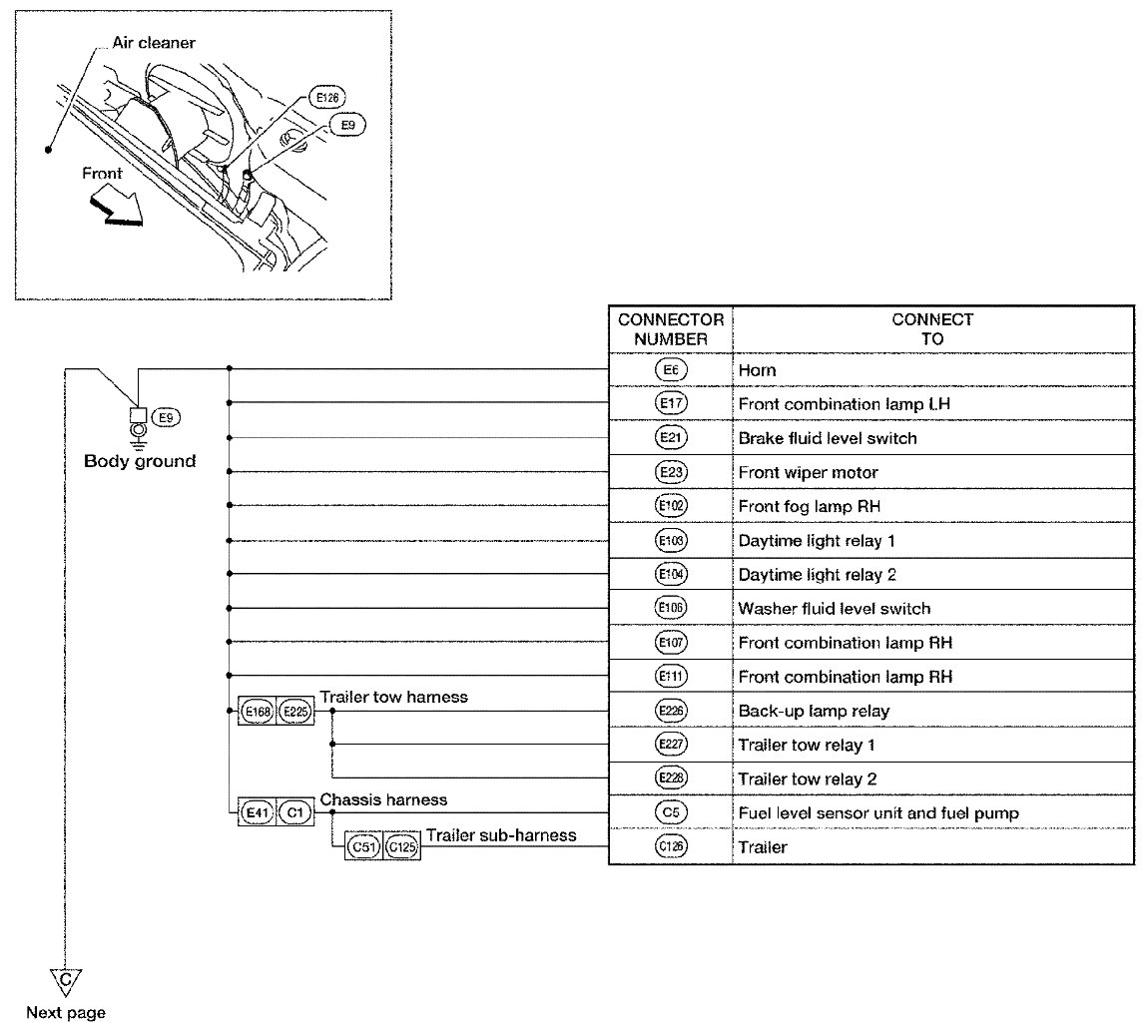

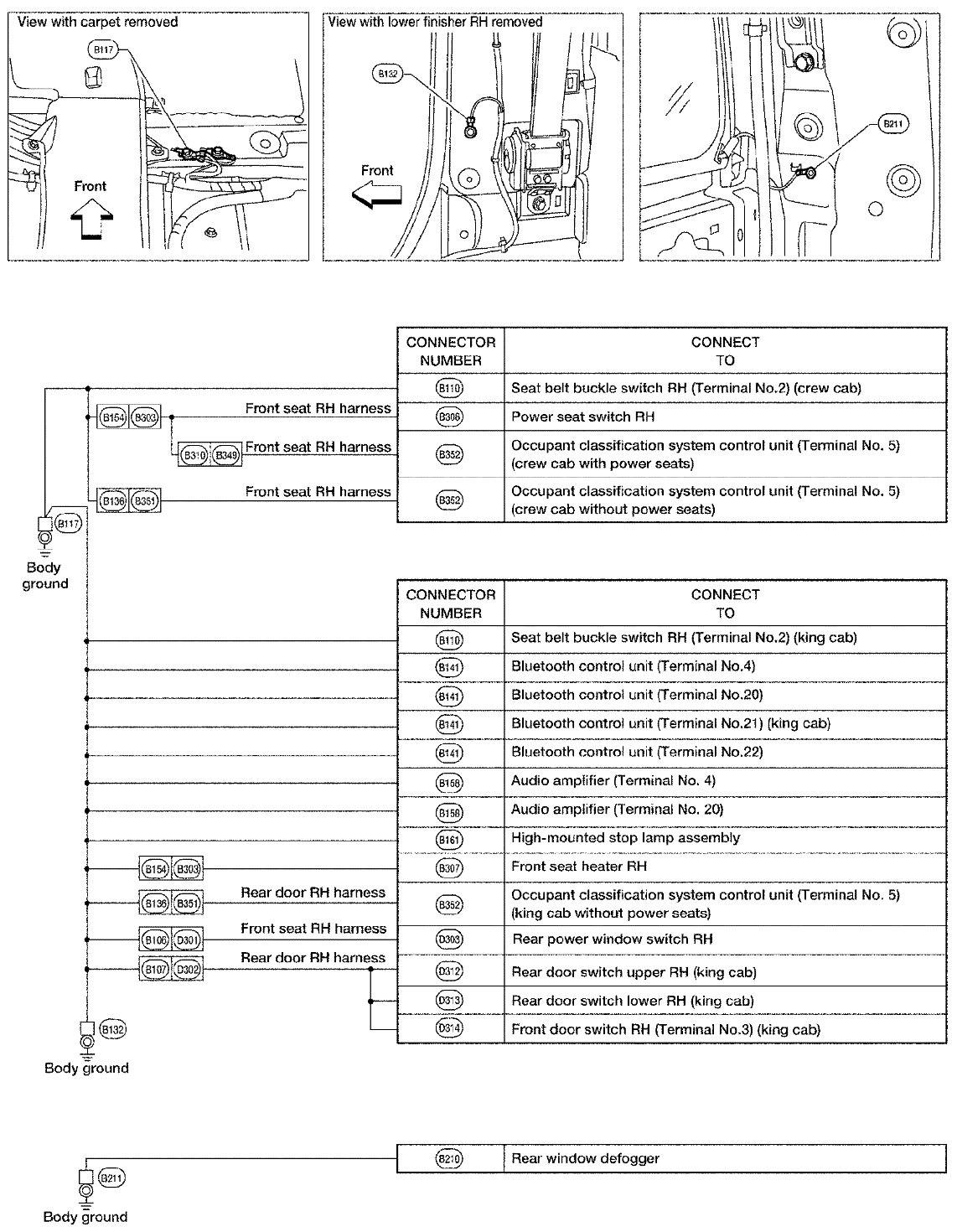

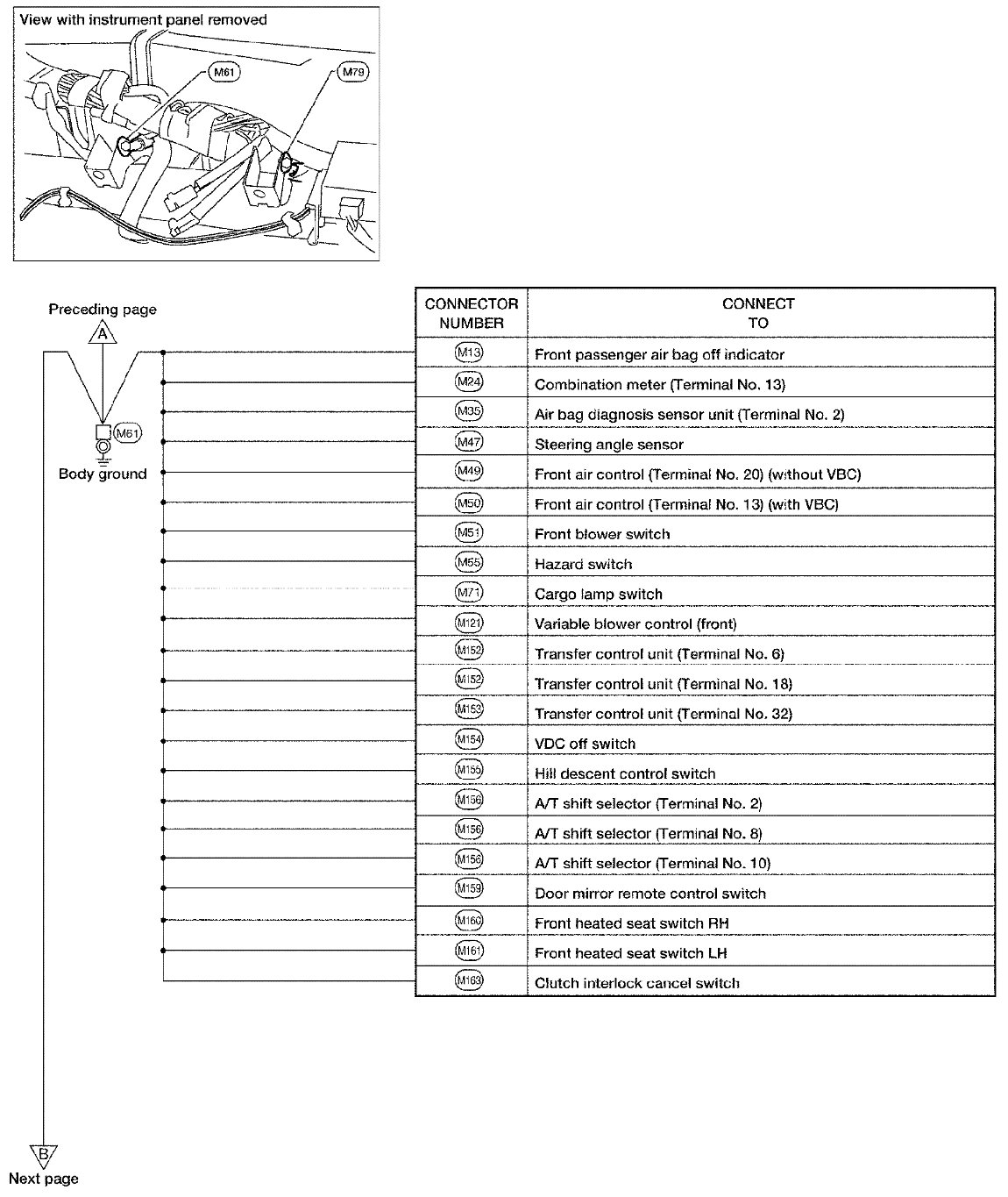

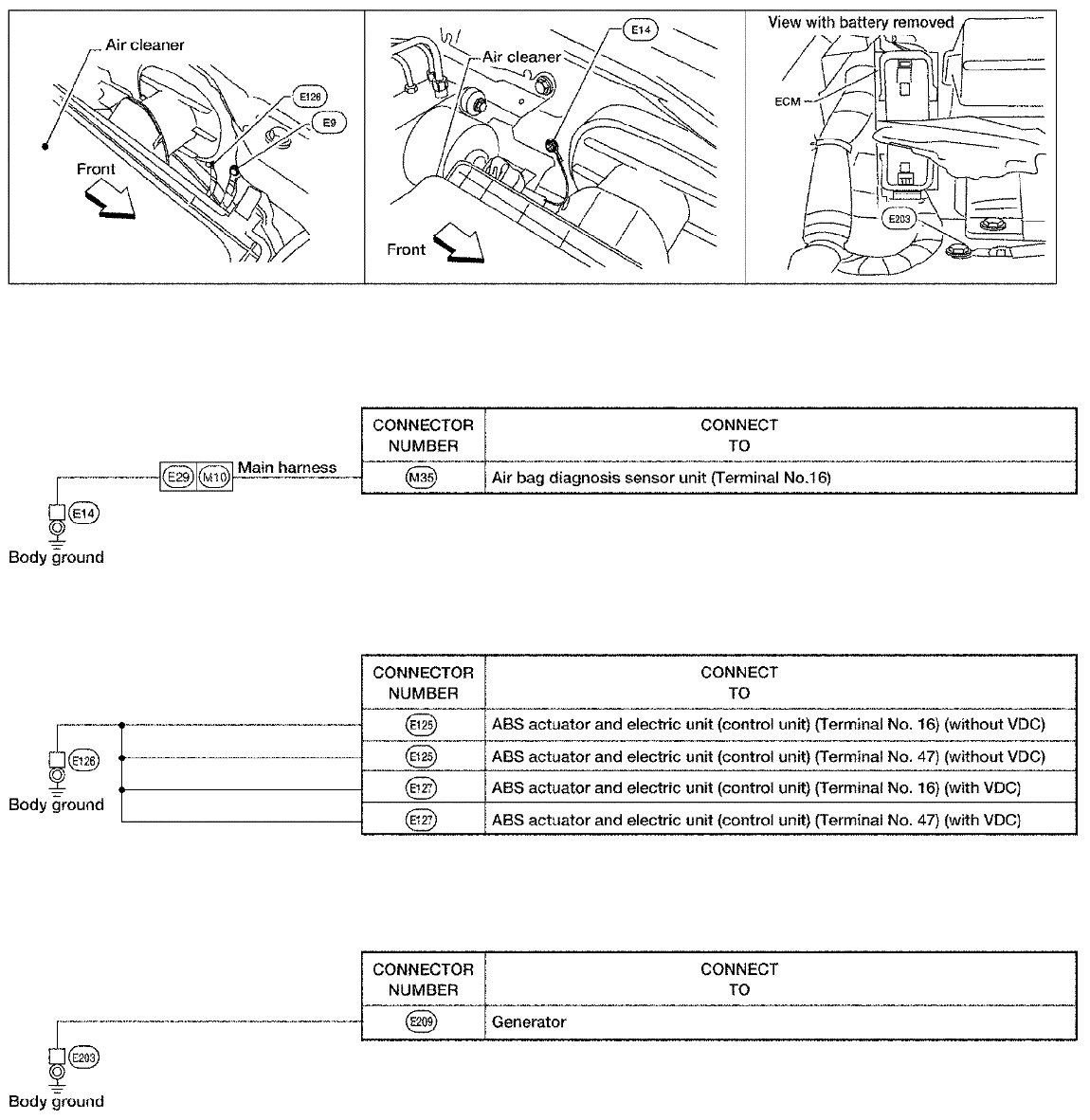

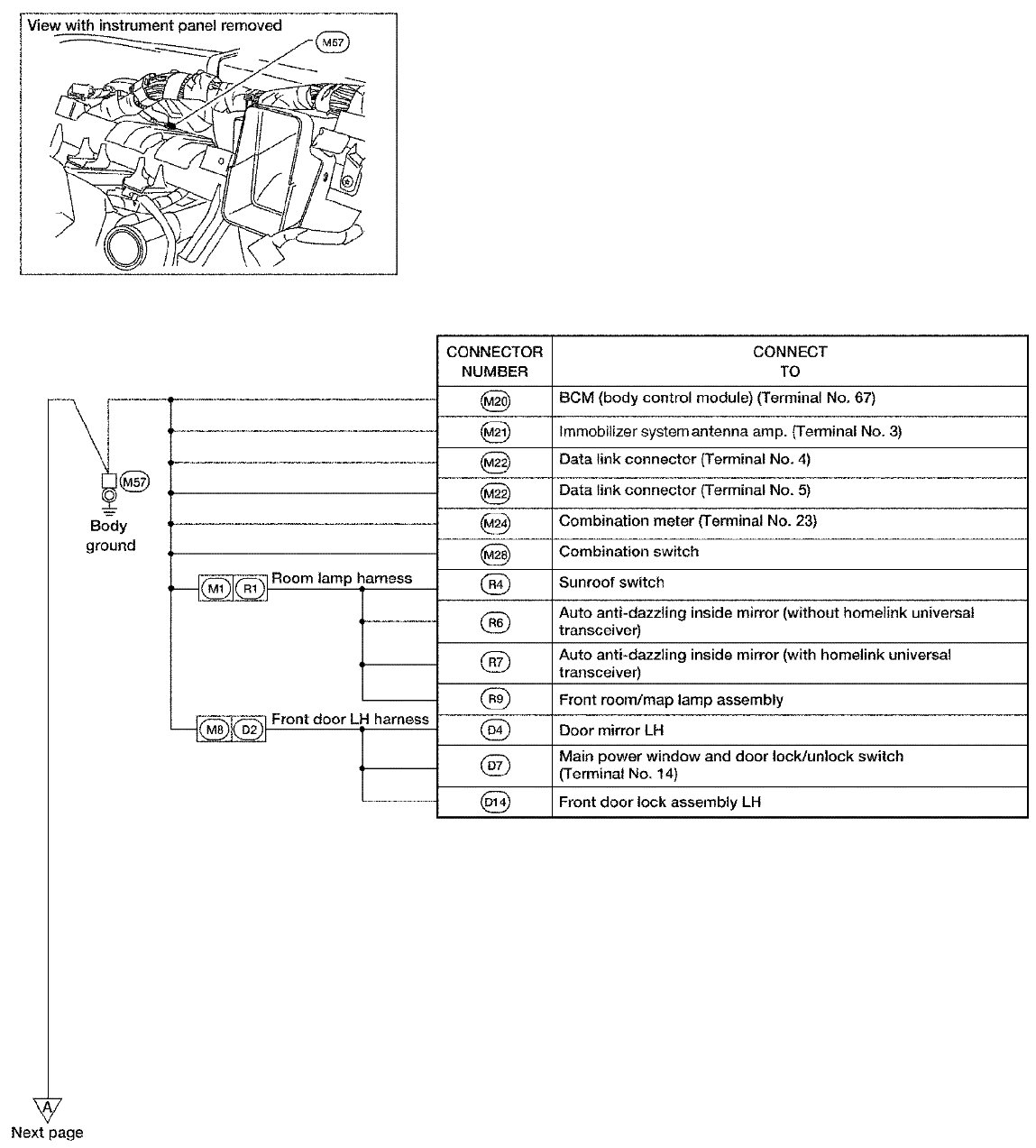

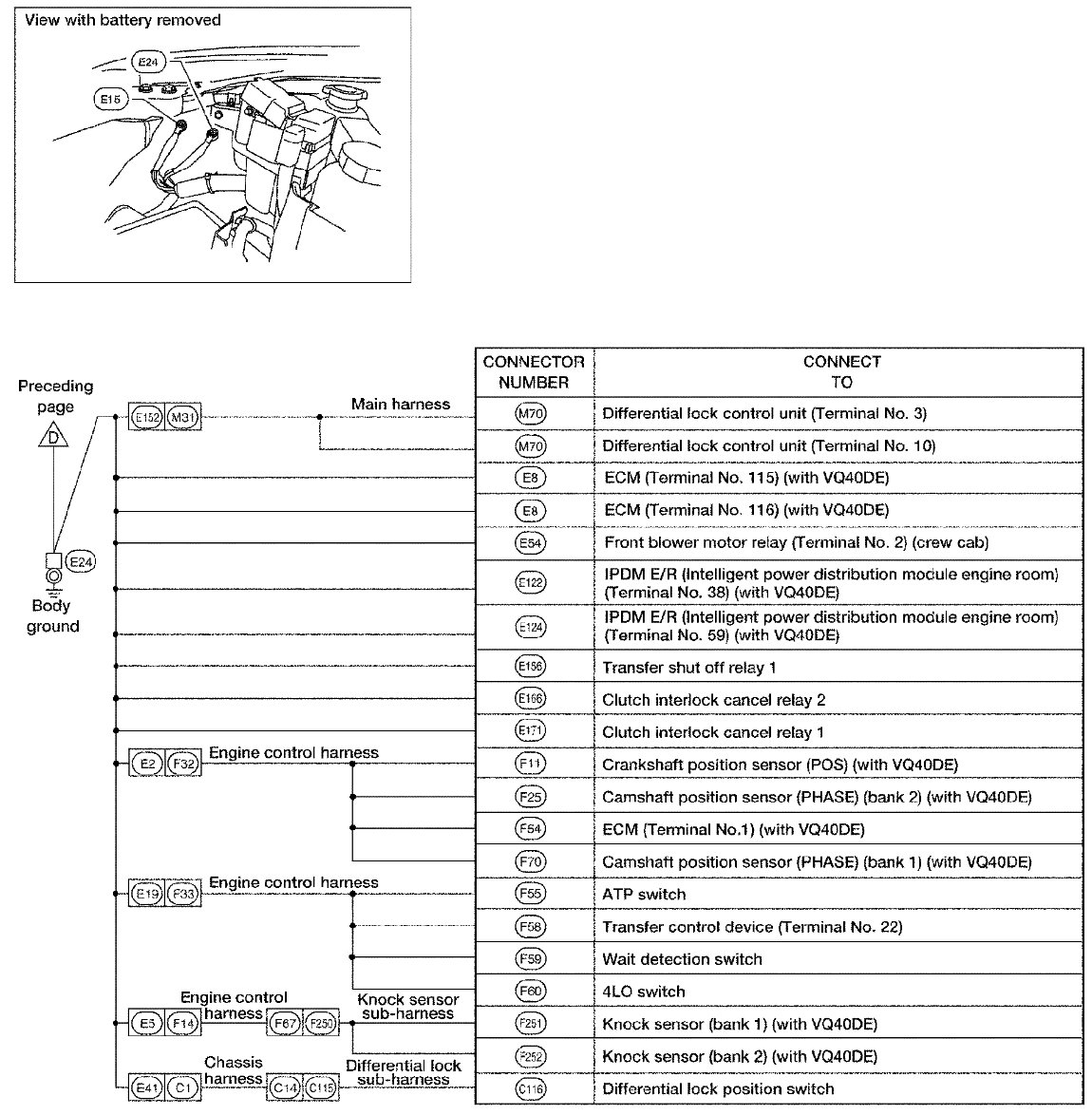

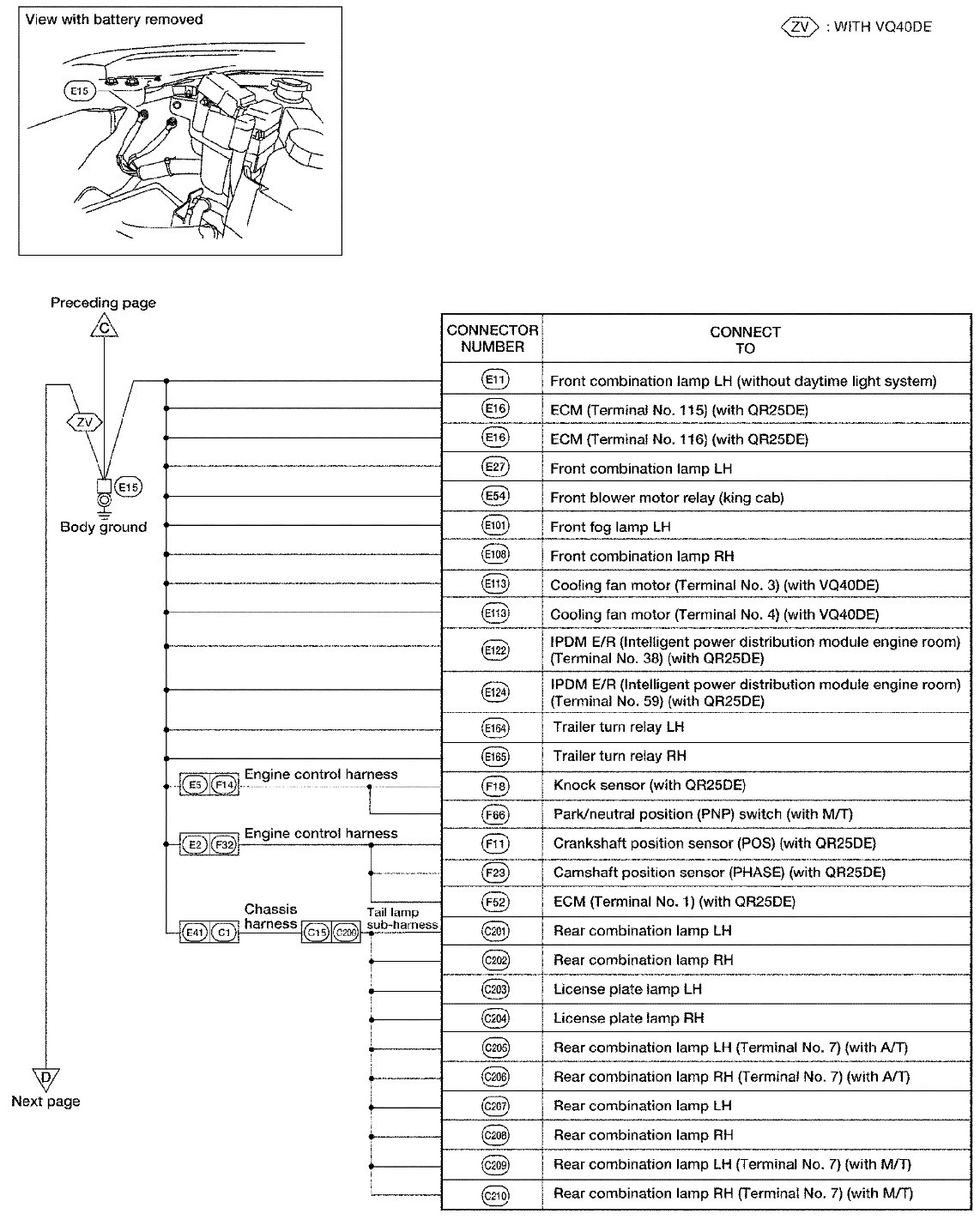

Ground Locations




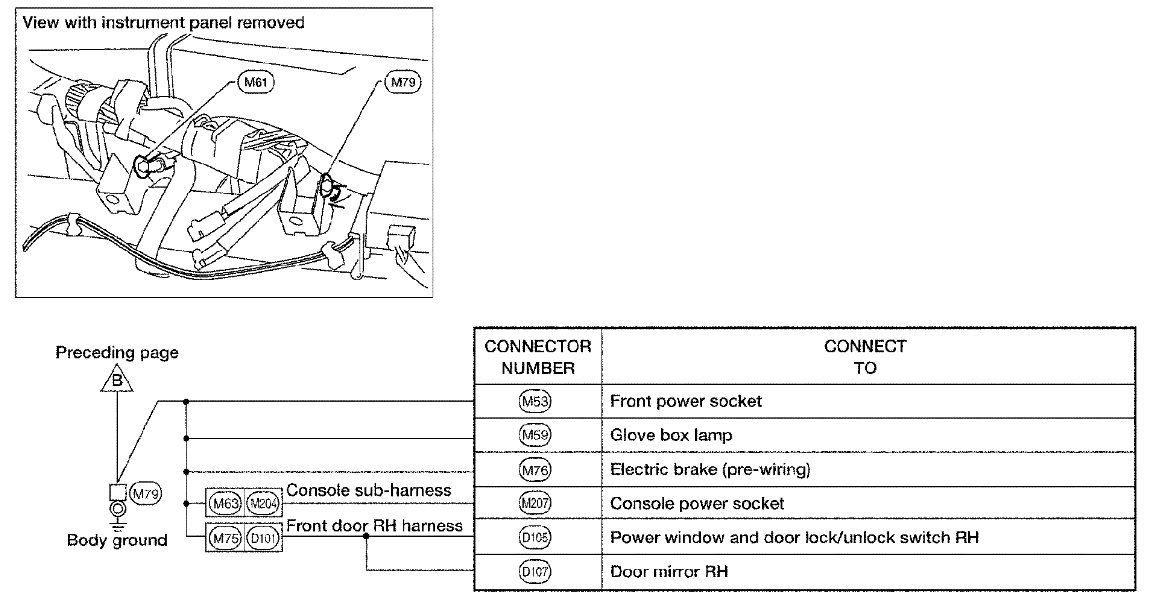

Ground Distribution

Main Harness













Engine Room Harness

















Engine Control Harness (VQ40DE Models)





Engine Control Harness (QR25DE Models)





Body Harness





Body No. 2 Harness
